UCC37325

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有一个反相输入和一个同相输入的 4A/4A 双通道栅极驱动器

Number of channels: 2 Power switch: MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 15 Features: Hysteretic Logic, Inverting and Non-inverting Output Operating temperature range (°C): 0 to 70 Rise time (ns): 20 Fall time (ns): 15 Propagation delay time (µs): 0.025 Input threshold: CMOS, TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: Catalog Driver configuration: Inverting, Non-Inverting Number of channels: 2 Power switch: MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 15 更多

Features: Hysteretic Logic, Inverting and Non-inverting Output Operating temperature range (°C): 0 to 70 Rise time (ns): 20 Fall time (ns): 15 Propagation delay time (µs): 0.025 Input threshold: CMOS, TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: Catalog Driver configuration: Inverting, Non-Inverting

UC1710-SP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 5V UVLO 和分离接地层的航天级 QMLV 6A/6A 单通道栅极驱动器

Number of channels: 1 Power switch: IGBT, MOSFET Peak output current (A): 6 Input supply voltage (min) (V): 4.7 Input supply voltage (max) (V): 18 Features: Thermal shutdown Operating temperature range (°C): -55 to 125 Fall time (ns): 20 Input threshold: CMOS Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: Space Driver configuration: Complementary Number of channels: 1 Power switch: IGBT, MOSFET Peak output current (A): 6 Input supply voltage (min) (V): 4.7 Input supply voltage (max) (V): 18 Features: Thermal shutdown Operating temperature range (°C): -55 to 125 更多

Fall time (ns): 20 Input threshold: CMOS Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: Space Driver configuration: Complementary

UC1708-SP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 35V VDD 的耐辐射 QMLV、3A/3A 双通道栅极驱动器

Number of channels: 2 Power switch: IGBT, MOSFET Peak output current (A): 3 Input supply voltage (min) (V): 5 Input supply voltage (max) (V): 35 Features: Enable pin, Shutdown, Thermal shutdown Operating temperature range (°C): -55 to 125 Fall time (ns): 25 Input threshold: CMOS, TTL Channel input logic: Non-Inverting Input negative voltage (V): 0 Rating: Space Driver configuration: Dual Number of channels: 2 Power switch: IGBT, MOSFET Peak output current (A): 3 Input supply voltage (min) (V): 5 Input supply voltage (max) (V): 35 Features: Enable pin, Shutdown, Thermal shutdown Operating temperature range (°C): -55 to 125 更多

Fall time (ns): 25 Input threshold: CMOS, TTL Channel input logic: Non-Inverting Input negative voltage (V): 0 Rating: Space Driver configuration: Dual

TPS2838

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有可调节稳压器、用于同相同步降压的 4A、29V 半桥栅极驱动器

Bootstrap supply voltage (max) (V): 29 Power switch: MOSFET Input supply voltage (min) (V): 10 Input supply voltage (max) (V): 15 Peak output current (A): 4 Operating temperature range (°C): -40 to 125 Undervoltage lockout (typ) (V): 10 Rating: Catalog Propagation delay time (µs): 0.02 Rise time (ns): 10 Fall time (ns): 10 Iq (mA): 0.425 Input threshold: TTL Channel input logic: CMOS Switch node voltage (V): 0 Features: Dead time control, Enable, Synchronous Rectification Driver configuration: Noninverting Bootstrap supply voltage (max) (V): 29 Power switch: MOSFET Input supply voltage (min) (V): 10 更多

Input supply voltage (max) (V): 15 Peak output current (A): 4 Operating temperature range (°C): -40 to 125 Undervoltage lockout (typ) (V): 10 Rating: Catalog Propagation delay time (µs): 0.02 Rise time (ns): 10 Fall time (ns): 10 Iq (mA): 0.425 Input threshold: TTL Channel input logic: CMOS Switch node voltage (V): 0 Features: Dead time control, Enable, Synchronous Rectification Driver configuration: Noninverting

DRV103

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 32V, 3A single channel low-side driver with PWM control

Iout/ch (max) (A): 3 Number of channels: 1 Vs (max) (V): 32 Vs (min) (V): 8 Peak output current (A): 3 Operating temperature range (°C): -40 to 85 Rating: Catalog Iout/ch (max) (A): 3 Number of channels: 1 Vs (max) (V): 32 Vs (min) (V): 8 Peak output current (A): 3 Operating temperature range (°C): -40 to 85 Rating: Catalog

UC1705-SP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 40V VDD 和输出锁存器的航天级 QMLV 1.5A/1.5A 单路栅极驱动器

Number of channels: 1 Power switch: IGBT, MOSFET Peak output current (A): 1.5 Input supply voltage (min) (V): 5 Input supply voltage (max) (V): 40 Features: Thermal shutdown Operating temperature range (°C): -55 to 125 Fall time (ns): 40 Input threshold: TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: Space Driver configuration: Complementary Number of channels: 1 Power switch: IGBT, MOSFET Peak output current (A): 1.5 Input supply voltage (min) (V): 5 Input supply voltage (max) (V): 40 Features: Thermal shutdown Operating temperature range (°C): -55 to 125 更多

Fall time (ns): 40 Input threshold: TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: Space Driver configuration: Complementary

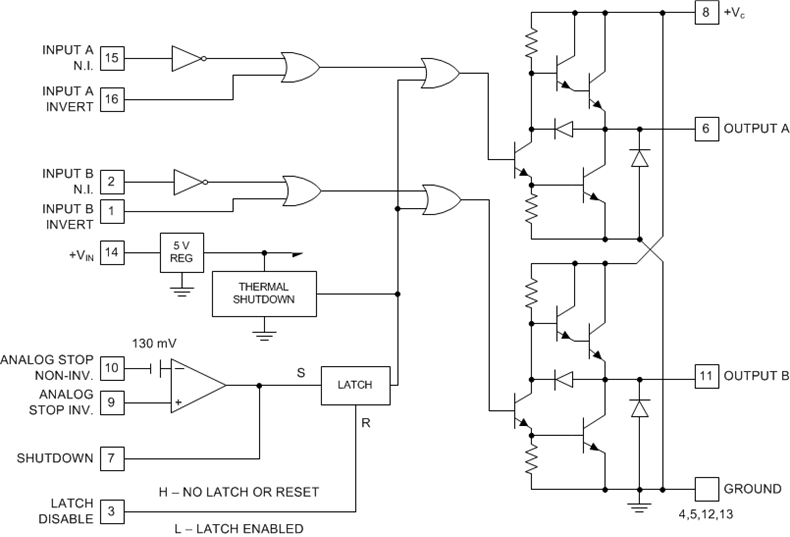

UC1707-SP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 40V VDD 和输出锁存的耐辐射 QMLV、1.5A/1.5A 双路栅极驱动器

Number of channels: 2 Power switch: IGBT, MOSFET Peak output current (A): 1.5 Input supply voltage (min) (V): 5 Input supply voltage (max) (V): 40 Features: Analog Shutdown with Optional Latch, Thermal shutdown Operating temperature range (°C): -55 to 125 Fall time (ns): 40 Input threshold: TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: Space Driver configuration: Dual Number of channels: 2 Power switch: IGBT, MOSFET Peak output current (A): 1.5 Input supply voltage (min) (V): 5 Input supply voltage (max) (V): 40 Features: Analog Shutdown with Optional Latch, Thermal shutdown Operating temperature range (°C): -55 to 125 更多

Fall time (ns): 40 Input threshold: TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: Space Driver configuration: Dual

TPS2834

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 TTL 输入和使能功能、用于同相同步降压的 2.4A、28V 半桥栅极驱动器

Bootstrap supply voltage (max) (V): 28 Power switch: MOSFET Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 15 Peak output current (A): 2.4 Operating temperature range (°C): -40 to 125 Rating: Catalog Propagation delay time (µs): 0.07 Rise time (ns): 50 Fall time (ns): 40 Iq (mA): 3 Input threshold: TTL Channel input logic: TTL Switch node voltage (V): 0 Features: Dead time control, Enable, Synchronous Rectification Driver configuration: Noninverting Bootstrap supply voltage (max) (V): 28 Power switch: MOSFET Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 15 更多

Peak output current (A): 2.4 Operating temperature range (°C): -40 to 125 Rating: Catalog Propagation delay time (µs): 0.07 Rise time (ns): 50 Fall time (ns): 40 Iq (mA): 3 Input threshold: TTL Channel input logic: TTL Switch node voltage (V): 0 Features: Dead time control, Enable, Synchronous Rectification Driver configuration: Noninverting

TPS2835

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 TTL 输入和使能功能、用于反相同步降压的 2.4A、28V 半桥栅极驱动器

Bootstrap supply voltage (max) (V): 28 Power switch: MOSFET Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 15 Peak output current (A): 2.4 Operating temperature range (°C): -40 to 125 Rating: Catalog Propagation delay time (µs): 0.07 Rise time (ns): 50 Fall time (ns): 40 Iq (mA): 3 Input threshold: TTL Channel input logic: TTL Switch node voltage (V): 0 Features: Dead time control, Enable, Synchronous Rectification Driver configuration: Inverting Bootstrap supply voltage (max) (V): 28 Power switch: MOSFET Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 15 更多

TPS2836

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 TTL 输入和使能功能、用于同相同步降压的 2.4A、28V 半桥栅极驱动器

Bootstrap supply voltage (max) (V): 28 Power switch: MOSFET Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 15 Peak output current (A): 2.4 Operating temperature range (°C): -40 to 125 Rating: Catalog Propagation delay time (µs): 0.07 Rise time (ns): 50 Fall time (ns): 40 Iq (mA): 3 Input threshold: TTL Channel input logic: TTL Switch node voltage (V): 0 Features: Dead time control, Synchronous Rectification Driver configuration: Noninverting Bootstrap supply voltage (max) (V): 28 Power switch: MOSFET Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 15 更多

Peak output current (A): 2.4 Operating temperature range (°C): -40 to 125 Rating: Catalog Propagation delay time (µs): 0.07 Rise time (ns): 50 Fall time (ns): 40 Iq (mA): 3 Input threshold: TTL Channel input logic: TTL Switch node voltage (V): 0 Features: Dead time control, Synchronous Rectification Driver configuration: Noninverting
