1ED3860MC12M

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 2300 V single-channel highly flexible isolated gate driver with I2C configurability for DESAT, Soft-Off, UVLO, Miller clamp, TLTO and Fault

Configuration: High-side Channels: 1.0 Input Vcc: NoneV Isolation Type: Galvanic isolation - Reinforced Output Current(Sink): 5.0A Output Current(Source): 7.5A Package: PG-DSO-16-33 Qualification: Industrial Turn Off Propagation Delay: 236.0ns Turn On Propagation Delay: 244.0ns VBS UVLO(Off): 11.0V VBS UVLO(On): 12.0V VCC UVLO(Off): 2.8V VCC UVLO(On): 2.95V Voltage Class: 2300.0V

1ED44171N01B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 25 V single-channel low-side gate driver with integrated fault reporting and enable functionality

Configuration: Low-side Input Vcc: NoneV Isolation Type: Non-isolated Output Current(Sink): 2.6A Output Current(Source): 2.6A Turn Off Propagation Delay: 50.0ns Turn On Propagation Delay: 50.0ns Voltage Class: 25.0V Channels: 1.0 Qualification: Industrial

1ED44173N01B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 25 V single-channel low-side MOSFET gate driver with integrated fast over-current protection (OCP), fault reporting and enable functionality

Voltage Class: 25.0V Channels: 1.0 Configuration: Low-side Qualification: Industrial Isolation Type: Non-isolated Package: PG-SOT23-6 Input Vcc: NoneV Output Current(Source): 2.6A Output Current(Sink): 2.6A Turn Off Propagation Delay: 34.0ns Turn On Propagation Delay: 34.0ns VCC UVLO(Off): 7.3V VCC UVLO(On): 8.0V VBS UVLO(Off): 7.3V VBS UVLO(On): 8.0V

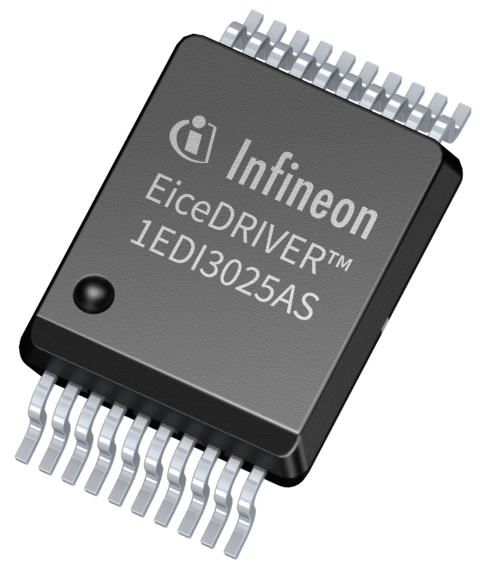

1EDI3025AS

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The EiceDRIVER™ 1EDI3025AS is an automotive qualified single channel high voltage gate driver optimized for IGBT technologies.

Classification: ISO 26262-compliant Channels: 1.0 Configuration: High-side Input Vcc max: 5.5V Output Current(Sink): 20.0A Output Current(Source): 20.0A Package: PG-DSO-20 Qualification: Automotive Voltage Class: 1200.0V Turn Off Propagation Delay: 60.0ns Turn On Propagation Delay: 60.0ns Isolation Type: Galvanic isolation - Reinforced Family: EiceDRIVER™ isolated gate driver ICs for EV Currently planned availability until at least: 2038

1ED3890MC12M

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 2300 V single-channel highly flexible isolated gate driver with I2C configurability for DESAT, Soft-Off, UVLO, Miller clamp, TLTO and Fault

Configuration: High-side Channels: 1.0 Input Vcc: NoneV Isolation Type: Galvanic isolation - Reinforced Output Current(Source): 11.0A Output Current(Sink): 7.5A Package: PG-DSO-16-33 Qualification: Industrial Turn Off Propagation Delay: 236.0ns Turn On Propagation Delay: 244.0ns VBS UVLO(Off): 11.0V VBS UVLO(On): 12.0V VCC UVLO(Off): 2.8V VCC UVLO(On): 2.95V Voltage Class: 2300.0V

1EDB9275F

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: Single-channel isolated gate-driver IC in 150 mil DSO-8 package

Voltage Class: 650.0V Channels: 1.0 Configuration: High-side Qualification: Industrial Isolation Type: Galvanic isolation - Functional Input Vcc: NoneV Output Current(Source): 5.4A Output Current(Sink): 9.8A Turn Off Propagation Delay: 45.0ns Turn On Propagation Delay: 45.0ns VCC UVLO(On): 2.85V VBS UVLO(On): 14.9V VBS UVLO(Off): 14.4V

1EDB6275F

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: Single-channel isolated gate-driver IC in 150 mil DSO-8 package

Channels: 1.0 Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Functional Output Current(Source): 5.4A Output Current(Sink): 9.8A Qualification: Industrial Turn Off Propagation Delay: 45.0ns Turn On Propagation Delay: 45.0ns VBS UVLO(On): 12.2V VCC UVLO(On): 2.85V Voltage Class: 650.0V VBS UVLO(Off): 11.5V

2ED3147MC12L

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 14.7 V UVLO

Channels: 2.0 Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Reinforced Output Current(Source): 6.0A Output Current(Sink): 6.5A Package: PG-DSO-14-71 Qualification: Industrial Voltage Class: 2300.0V Turn Off Propagation Delay: 39.0ns Turn On Propagation Delay: 39.0ns VBS UVLO(Off): 14.7V VBS UVLO(On): 16.0V

1EDI20I12MF

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 1200 V, 4.4 A single-channel isolated gate driver with Miller clamp and short circuit clamping

Input Vcc: NoneV Channels: 1.0 Configuration: High-side Voltage Class: 1200.0V Qualification: Industrial Isolation Type: Galvanic isolation - Functional Output Current(Sink): 4.1A Output Current(Source): 4.4A Turn Off Propagation Delay: 300.0ns Turn On Propagation Delay: 300.0ns VCC UVLO(On): 2.85V VCC UVLO(Off): 2.75V VBS UVLO(On): 12.0V VBS UVLO(Off): 11.1V

1EDB7275F

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: Single-channel isolated gate-driver IC in 150 mil DSO-8 package
