Function: Single-ended Additive RMS jitter (typ) (fs): 40 Output frequency (max) (MHz): 200 Number of outputs: 10 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 100 Features: Pin control Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVTTL Input type: LVTTL Function: Single-ended Additive RMS jitter (typ) (fs): 40 Output frequency (max) (MHz): 200 Number of outputs: 10 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 100 Features: Pin control 更多

Function: Single-ended Output frequency (max) (MHz): 100 Number of outputs: 10 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 2500 Features: 1:10 fanout Operating temperature range (°C): -55 to 125 Rating: HiRel Enhanced Product Output type: LVTTL Input type: LVTTL Function: Single-ended Output frequency (max) (MHz): 100 Number of outputs: 10 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 2500 Features: 1:10 fanout Operating temperature range (°C): -55 to 125 Rating: HiRel Enhanced Product 更多

Function: Memory interface Additive RMS jitter (typ) (fs): 70 Output frequency (max) (MHz): 175 Number of outputs: 10 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 100 Features: SDR Operating temperature range (°C): 0 to 85 Rating: Catalog Output type: LVTTL Input type: LVTTL Function: Memory interface Additive RMS jitter (typ) (fs): 70 Output frequency (max) (MHz): 175 Number of outputs: 10 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 100 Features: SDR 更多

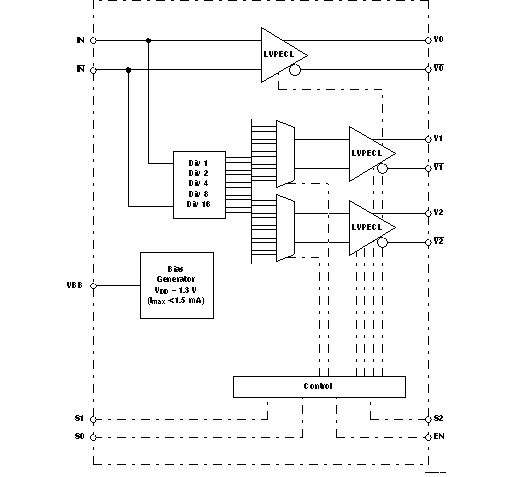

Function: Clock divider, Fanout Additive RMS jitter (typ) (fs): 150 Output frequency (max) (MHz): 800 Number of outputs: 1 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 1600 Features: Pin programmable Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVCMOS, LVPECL Input type: LVPECL Function: Clock divider, Fanout Additive RMS jitter (typ) (fs): 150 Output frequency (max) (MHz): 800 Number of outputs: 1 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 1600 Features: Pin programmable 更多

Function: Differential, Fanout Additive RMS jitter (typ) (fs): 150 Output frequency (max) (MHz): 800 Number of outputs: 3 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 15 Features: Pin programmable Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVPECL Input type: LVPECL Function: Differential, Fanout Additive RMS jitter (typ) (fs): 150 Output frequency (max) (MHz): 800 Number of outputs: 3 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 15 Features: Pin programmable 更多

Function: Clock divider, Fanout Additive RMS jitter (typ) (fs): 150 Output frequency (max) (MHz): 800 Number of outputs: 3 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 30 Features: Pin programmable Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: 1-LVCMOS No of outputs = 3 LVPECL, LVCMOS, LVPECL Input type: LVPECL Function: Clock divider, Fanout Additive RMS jitter (typ) (fs): 150 Output frequency (max) (MHz): 800 Number of outputs: 3 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 30 Features: Pin programmable 更多

Function: Zero-delay Additive RMS jitter (typ) (fs): 30 Output frequency (max) (MHz): 220 Number of outputs: 10 Output supply voltage (V): 1.7 Core supply voltage (V): 2.5 Output skew (ps): 75 Features: Spread spectrum clocking (SSC) Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVTTL Input type: LVTTL Function: Zero-delay Additive RMS jitter (typ) (fs): 30 Output frequency (max) (MHz): 220 Number of outputs: 10 Output supply voltage (V): 1.7 Core supply voltage (V): 2.5 Output skew (ps): 75 Features: Spread spectrum clocking (SSC) 更多

Function: Single-ended Output frequency (max) (MHz): 40 Number of outputs: 2 Output supply voltage (V): 2.5, 3.3, 5 Core supply voltage (V): 2.5, 3.3, 5 Features: 1:2 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: Rail-to-rail Input type: Rail-to-rail Function: Single-ended Output frequency (max) (MHz): 40 Number of outputs: 2 Output supply voltage (V): 2.5, 3.3, 5 Core supply voltage (V): 2.5, 3.3, 5 Features: 1:2 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: Rail-to-rail Input type: Rail-to-rail

Function: Memory interface Output frequency (max) (MHz): 500 Number of outputs: 26 Output supply voltage (V): 2.5 Core supply voltage (V): 2.5 Features: DDR register Operating temperature range (°C): 0 to 70 Rating: Military Output type: SSTL-18 Input type: SSTL-18 Function: Memory interface Output frequency (max) (MHz): 500 Number of outputs: 26 Output supply voltage (V): 2.5 Core supply voltage (V): 2.5 Features: DDR register Operating temperature range (°C): 0 to 70 Rating: Military Output type: SSTL-18 Input type: SSTL-18

Function: Zero-delay Additive RMS jitter (typ) (fs): 120 Output frequency (max) (MHz): 180 Number of outputs: 8 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 150 Features: Spread spectrum clocking (SSC) Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVTTL Input type: LVTTL Function: Zero-delay Additive RMS jitter (typ) (fs): 120 Output frequency (max) (MHz): 180 Number of outputs: 8 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 150 Features: Spread spectrum clocking (SSC) 更多
