天天芯片 - 物料搜索

DS15BR401

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

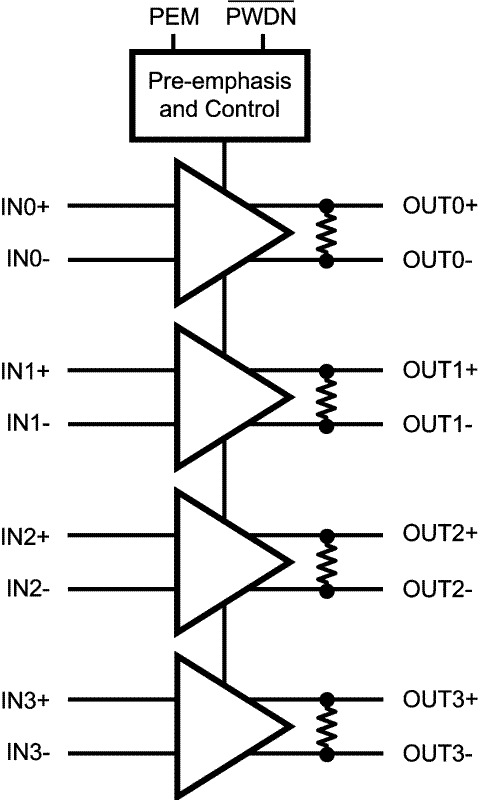

描述: 具有预加重功能的 4 通道 LVDS 缓冲器/中继器

Function: Buffer Protocols: CML, LVDS, LVPECL Number of transmitters: 4 Number of receivers: 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 2000 Input signal: CML, LVDS, LVPECL Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Buffer Protocols: CML, LVDS, LVPECL Number of transmitters: 4 Number of receivers: 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 2000 Input signal: CML, LVDS, LVPECL Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85

NS16C2752

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 64 字节 FIFO、数据速率高达 5 兆位/秒的双通道 UART

Number of channels: 2 FIFO (Byte): 64 Rx FIFO trigger levels (#): 4 Tx FIFO trigger levels (#): 4 Programmable FIFO trigger levels: No CPU interface: X86 Baud rate at Vcc = 3.3 V & with 16x sampling (max) (Mbps): 5 Baud rate at Vcc = 5 V & with 16x sampling (max) (Mbps): 5 Operating voltage (V): 3.3, 5 Auto RTS/CTS: Yes Rating: Catalog Operating temperature range (°C): -40 to 85 Number of channels: 2 FIFO (Byte): 64 Rx FIFO trigger levels (#): 4 Tx FIFO trigger levels (#): 4 Programmable FIFO trigger levels: No CPU interface: X86 Baud rate at Vcc = 3.3 V & with 16x sampling (max) (Mbps): 5 Baud rate at Vcc = 5 V & with 16x sampling (max) (Mbps): 5 更多

Operating voltage (V): 3.3, 5 Auto RTS/CTS: Yes Rating: Catalog Operating temperature range (°C): -40 to 85

MAX3223-EP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 +/-15kV ESD 保护的 3V 至 5.5V 500kbps RS-232 线路驱动器/接收器（增强型产品）

Drivers per package: 2 Receivers per package: 2 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 0.5 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown ESD HBM (kV): 15 Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125 Vout (typ) (V): 5.4 Drivers per package: 2 Receivers per package: 2 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 0.5 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown ESD HBM (kV): 15 Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125 Vout (typ) (V): 5.4

DP83849C

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

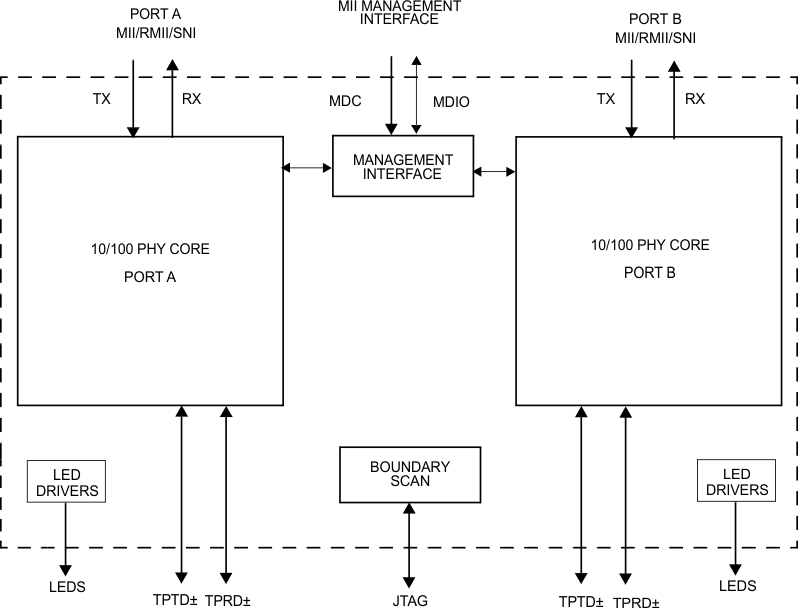

描述: 具有商业级温度范围的双端口 10/100Mbps 以太网 PHY 收发器

Datarate (Mbps): 10/100 Interface type: MII, RMII, SNI Number of ports: Dual Rating: Catalog Features: Cable diagnostics Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 3.3 Operating temperature range (°C): 0 to 70 Number of LEDs: 6 ESD HBM (kV): 4 Datarate (Mbps): 10/100 Interface type: MII, RMII, SNI Number of ports: Dual Rating: Catalog Features: Cable diagnostics Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 3.3 Operating temperature range (°C): 0 to 70 Number of LEDs: 6 ESD HBM (kV): 4

DP83849I

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 支持灵活端口开关、具有工业级温度范围的双端口 10/100Mbps 以太网 PHY 收发器

Datarate (Mbps): 10/100 Interface type: MII, RMII, SNI Number of ports: Dual Rating: Catalog Features: Cable diagnostics, Flex port, JTAG1149.1 Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 3.3 Operating temperature range (°C): -40 to 85 Number of LEDs: 6 ESD HBM (kV): 4 Datarate (Mbps): 10/100 Interface type: MII, RMII, SNI Number of ports: Dual Rating: Catalog Features: Cable diagnostics, Flex port, JTAG1149.1 Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 3.3 Operating temperature range (°C): -40 to 85 Number of LEDs: 6 ESD HBM (kV): 4

DP83849ID

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 支持光纤接口、具有工业级温度范围的双端口 10/100Mbps 以太网 PHY 收发器

Datarate (Mbps): 10/100 Interface type: MII, RMII, SNI Number of ports: Dual Rating: Catalog Features: Cable diagnostics, FX support, JTAG1149.1 Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 3.3 Operating temperature range (°C): -40 to 85 Number of LEDs: 6 ESD HBM (kV): 4 Datarate (Mbps): 10/100 Interface type: MII, RMII, SNI Number of ports: Dual Rating: Catalog Features: Cable diagnostics, FX support, JTAG1149.1 Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 3.3 Operating temperature range (°C): -40 to 85 Number of LEDs: 6 ESD HBM (kV): 4

DP83849IF

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 支持光纤接口和灵活的端口开关、具有工业级温度范围的双端口 10/100Mbps 以太网 PHY 收发器

Datarate (Mbps): 10/100 Interface type: MII, RMII, SNI Number of ports: Dual Rating: Catalog Features: Cable diagnostics, FX support, Flex port, JTAG1149.1 Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 3.3 Operating temperature range (°C): -40 to 85 Number of LEDs: 6 ESD HBM (kV): 4 Datarate (Mbps): 10/100 Interface type: MII, RMII, SNI Number of ports: Dual Rating: Catalog Features: Cable diagnostics, FX support, Flex port, JTAG1149.1 Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 3.3 Operating temperature range (°C): -40 to 85 Number of LEDs: 6 ESD HBM (kV): 4

SN65MLVD047A

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

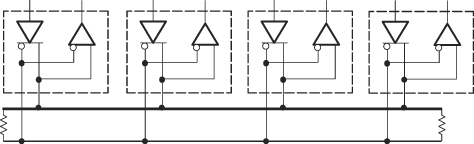

描述: 多点 LVDS 四路差动线路驱动器

Function: Driver Protocols: M-LVDS Number of transmitters: 4 Number of receivers: 0 Supply voltage (V): 3.3 Signaling rate (Mbps): 200 Input signal: LVTTL Output signal: M-LVDS Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Driver Protocols: M-LVDS Number of transmitters: 4 Number of receivers: 0 Supply voltage (V): 3.3 Signaling rate (Mbps): 200 Input signal: LVTTL Output signal: M-LVDS Rating: Catalog Operating temperature range (°C): -40 to 85

DS15BR400

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有预加重功能的 4 通道 LVDS 缓冲器/中继器

DS25MB100

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有发送预加重和接收均衡功能的 2.5Gbps 2:1/1:2 CML 多路复用器/缓冲器

Function: Mux buffer Protocols: CML, LVDS, LVPECL Number of transmitters: 1, 2 Number of receivers: 1, 2 Supply voltage (V): 3.3 Signaling rate (Mbps): 2500 Input signal: CML Output signal: CML Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Mux buffer Protocols: CML, LVDS, LVPECL Number of transmitters: 1, 2 Number of receivers: 1, 2 Supply voltage (V): 3.3 Signaling rate (Mbps): 2500 Input signal: CML Output signal: CML Rating: Catalog Operating temperature range (°C): -40 to 85
