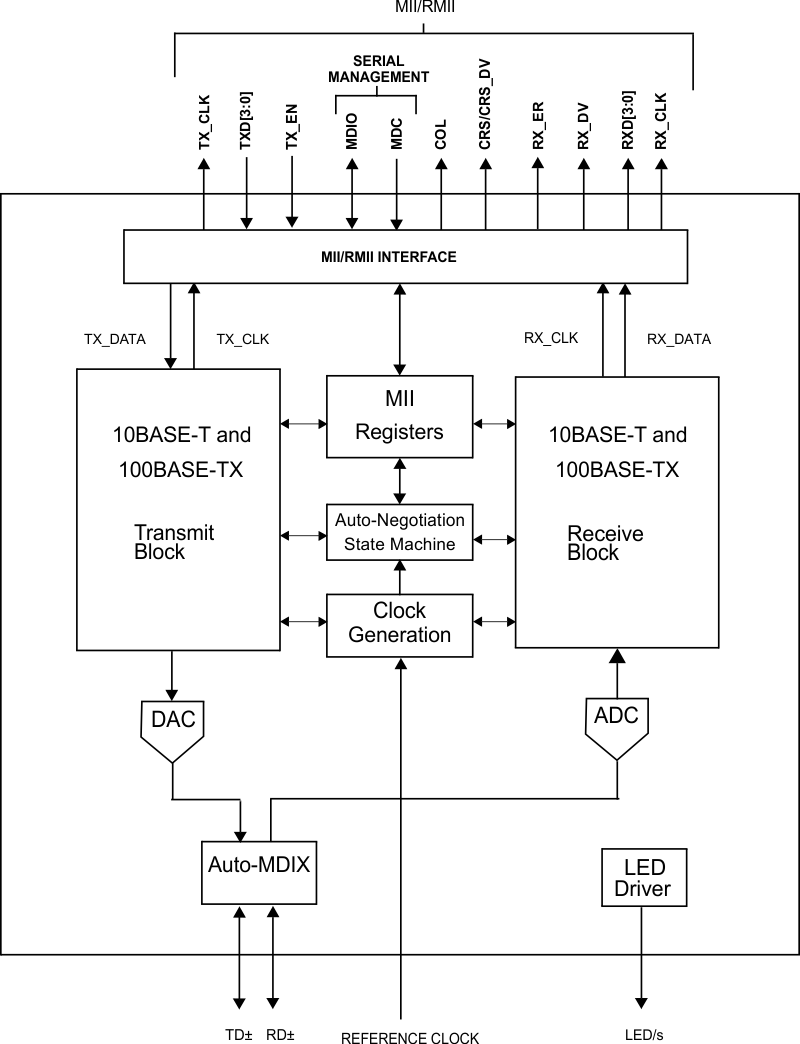

DP83848H
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

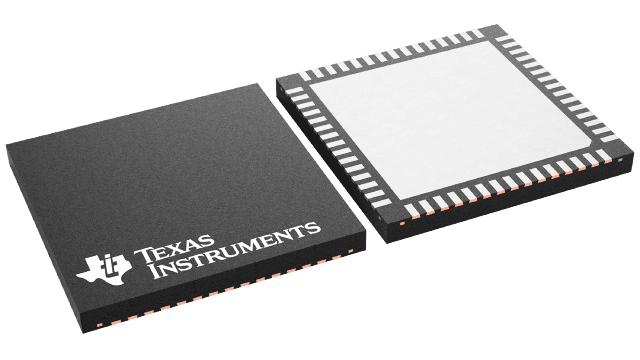

描述: 采用 40 引脚 QFN 封装、支持工作温度范围的 10/100Mbps 以太网 PHY 收发器
Datarate (Mbps): 10/100
Interface type: MII, RMII
Number of ports: Single
Rating: Catalog
Features: IEEE 802.3 autonegotiation, Parallel detection
Supply voltage (V): 3.3
I/O supply voltage (typ) (V): 3.3
Operating temperature range (°C): -40 to 125
Number of LEDs: 1
ESD HBM (kV): 4
Datarate (Mbps): 10/100
Interface type: MII, RMII
Number of ports: Single
Rating: Catalog
Features: IEEE 802.3 autonegotiation, Parallel detection
Supply voltage (V): 3.3
I/O supply voltage (typ) (V): 3.3
Operating temperature range (°C): -40 to 125
Number of LEDs: 1
ESD HBM (kV): 4
DP83848M
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器
描述: 具有 25MHz 时钟输出和商业级温度范围的 10/100Mbps 以太网 PHY 收发器
Datarate (Mbps): 10/100
Interface type: MII, RMII
Number of ports: Single
Rating: Catalog
Features: IEEE 802.3 autonegotiation, Parallel detection
Supply voltage (V): 3.3
I/O supply voltage (typ) (V): 3.3
Operating temperature range (°C): 0 to 70
Number of LEDs: 1
ESD HBM (kV): 4
Datarate (Mbps): 10/100
Interface type: MII, RMII
Number of ports: Single
Rating: Catalog
Features: IEEE 802.3 autonegotiation, Parallel detection
Supply voltage (V): 3.3
I/O supply voltage (typ) (V): 3.3
Operating temperature range (°C): 0 to 70
Number of LEDs: 1
ESD HBM (kV): 4
DP83848T
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器
描述: 具有 25MHz 时钟输出和工业级温度范围的 10/100Mbps 以太网 PHY 收发器
Datarate (Mbps): 10/100
Interface type: MII, RMII
Number of ports: Single
Rating: Catalog
Features: IEEE 802.3 autonegotiation, Parallel detection
Supply voltage (V): 3.3
I/O supply voltage (typ) (V): 3.3
Operating temperature range (°C): -40 to 85
Number of LEDs: 1
ESD HBM (kV): 4
Datarate (Mbps): 10/100
Interface type: MII, RMII
Number of ports: Single
Rating: Catalog
Features: IEEE 802.3 autonegotiation, Parallel detection
Supply voltage (V): 3.3
I/O supply voltage (typ) (V): 3.3
Operating temperature range (°C): -40 to 85
Number of LEDs: 1
ESD HBM (kV): 4
Function: Transceiver
Protocols: M-LVDS
Number of transmitters: 1
Number of receivers: 1
Supply voltage (V): 3.3
Signaling rate (Mbps): 200
Input signal: LVTTL, M-LVDS
Output signal: LVTTL, M-LVDS
Rating: Catalog
Operating temperature range (°C): -40 to 85
Function: Transceiver
Protocols: M-LVDS
Number of transmitters: 1
Number of receivers: 1
Supply voltage (V): 3.3
Signaling rate (Mbps): 200
Input signal: LVTTL, M-LVDS
Output signal: LVTTL, M-LVDS
Rating: Catalog
Operating temperature range (°C): -40 to 85
MAX3386E
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器
描述: 具有逻辑电源引脚和 +/-15kV IEC-ESD 保护的 3V 至 5.5V 250kbps RS-232 线路驱动器/接收器引脚
Drivers per package: 3
Receivers per package: 2
Logic voltage (min) (V): 3.3
Data rate (max) (Mbps): 0.25
Main supply voltage (nom) (V): 2.5
Features: Powerdown
ESD HBM (kV): 15
Rating: Catalog
Operating temperature range (°C): -40 to 85
Vout (typ) (V): 5.4
Drivers per package: 3
Receivers per package: 2
Logic voltage (min) (V): 3.3
Data rate (max) (Mbps): 0.25
Main supply voltage (nom) (V): 2.5
Features: Powerdown
ESD HBM (kV): 15
Rating: Catalog
Operating temperature range (°C): -40 to 85
Vout (typ) (V): 5.4
TRS3386E
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器
描述: 具有逻辑电源引脚和 +/-15kV IEC-ESD 保护的 3V 至 5.5V 250kbps RS-232 线路驱动器/接收器引脚
Drivers per package: 3
Receivers per package: 2
Logic voltage (min) (V): 2.5
Data rate (max) (Mbps): 0.25
Main supply voltage (nom) (V): 3.3, 5
Features: Powerdown
ESD HBM (kV): 15
Rating: Catalog
Operating temperature range (°C): -40 to 85
Vout (typ) (V): 5.4
Drivers per package: 3
Receivers per package: 2
Logic voltage (min) (V): 2.5
Data rate (max) (Mbps): 0.25
Main supply voltage (nom) (V): 3.3, 5
Features: Powerdown
ESD HBM (kV): 15
Rating: Catalog
Operating temperature range (°C): -40 to 85
Vout (typ) (V): 5.4
Function: Buffer, Equalizer, Transmitter
Protocols: CML
Number of transmitters: 4
Number of receivers: 4
Supply voltage (V): 3.3
Signaling rate (Mbps): 2500
Input signal: CML
Output signal: CML
Rating: Catalog
Operating temperature range (°C): -40 to 85
Function: Buffer, Equalizer, Transmitter
Protocols: CML
Number of transmitters: 4
Number of receivers: 4
Supply voltage (V): 3.3
Signaling rate (Mbps): 2500
Input signal: CML
Output signal: CML
Rating: Catalog
Operating temperature range (°C): -40 to 85
MAX3232-EP
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器
描述: 具有 +/-15kV ESD 保护的 3V 至 5.5V 250kbps RS-232 线路驱动器/接收器（增强型产品）
Drivers per package: 2
Receivers per package: 2
Logic voltage (min) (V): 3.3
Data rate (max) (Mbps): 0.25
Main supply voltage (nom) (V): 3.3, 5
ESD HBM (kV): 15
Rating: HiRel Enhanced Product
Operating temperature range (°C): -55 to 125
Vout (typ) (V): 5.4
Drivers per package: 2
Receivers per package: 2
Logic voltage (min) (V): 3.3
Data rate (max) (Mbps): 0.25
Main supply voltage (nom) (V): 3.3, 5
ESD HBM (kV): 15
Rating: HiRel Enhanced Product
Operating temperature range (°C): -55 to 125
Vout (typ) (V): 5.4
MAX3243-EP
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器
描述: 具有 +/-15kV ESD 保护的 3V 至 5.5V 250kbps RS-232 线路驱动器/接收器（增强型产品）
Drivers per package: 3
Receivers per package: 5
Logic voltage (min) (V): 3.3
Data rate (max) (Mbps): 0.25
Main supply voltage (nom) (V): 3.3, 5
Features: Auto-Powerdown
ESD HBM (kV): 15
Rating: HiRel Enhanced Product
Operating temperature range (°C): -55 to 125
Vout (typ) (V): 5.4
Drivers per package: 3
Receivers per package: 5
Logic voltage (min) (V): 3.3
Data rate (max) (Mbps): 0.25
Main supply voltage (nom) (V): 3.3, 5
Features: Auto-Powerdown
ESD HBM (kV): 15
Rating: HiRel Enhanced Product
Operating temperature range (°C): -55 to 125
Vout (typ) (V): 5.4
MAX3238E
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器
描述: 具有 +/-15kV IEC-ESD 保护的 3V 至 5.5V 多通道 400kbps RS-232 线路驱动器/接收器
Drivers per package: 5
Receivers per package: 3
Logic voltage (min) (V): 3.3
Data rate (max) (Mbps): 0.4
Main supply voltage (nom) (V): 3.3, 5
Features: Auto-Powerdown Plus
ESD HBM (kV): 15
Rating: Catalog
Operating temperature range (°C): -40 to 85
Vout (typ) (V): 5.4
Drivers per package: 5
Receivers per package: 3
Logic voltage (min) (V): 3.3
Data rate (max) (Mbps): 0.4
Main supply voltage (nom) (V): 3.3, 5
Features: Auto-Powerdown Plus
ESD HBM (kV): 15
Rating: Catalog
Operating temperature range (°C): -40 to 85
Vout (typ) (V): 5.4
