SN65LVDT14-EP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 增强型产品 Memorystick™ 内部互联扩展器芯片组

Function: Transceiver Protocols: LVDS Number of transmitters: 1 Number of receivers: 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 125 Input signal: LVDS, LVTTL Output signal: LVDS, LVTTL Rating: HiRel Enhanced Product Operating temperature range (°C): -40 to 125 Function: Transceiver Protocols: LVDS Number of transmitters: 1 Number of receivers: 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 125 Input signal: LVDS, LVTTL Output signal: LVDS, LVTTL Rating: HiRel Enhanced Product Operating temperature range (°C): -40 to 125

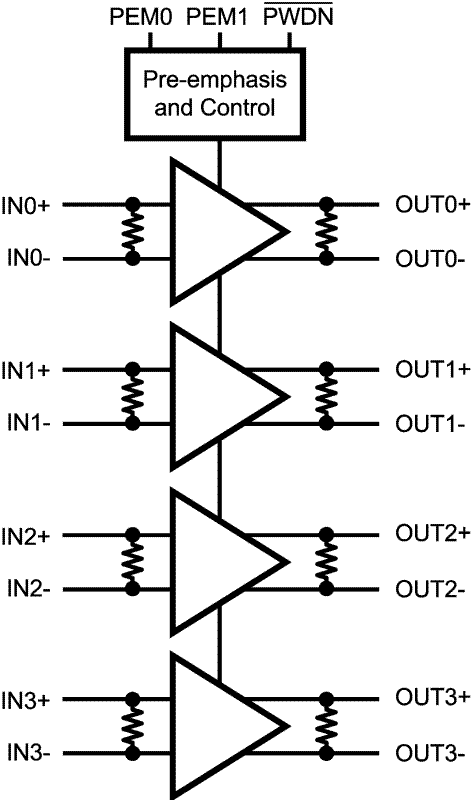

DS90LV004

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有预加重功能的 4 通道 LVDS 缓冲器/中继器

Function: Buffer Protocols: CML, LVDS, LVPECL Number of transmitters: 4 Number of receivers: 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 1500 Input signal: CML, LVDS, LVPECL Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Buffer Protocols: CML, LVDS, LVPECL Number of transmitters: 4 Number of receivers: 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 1500 Input signal: CML, LVDS, LVPECL Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85

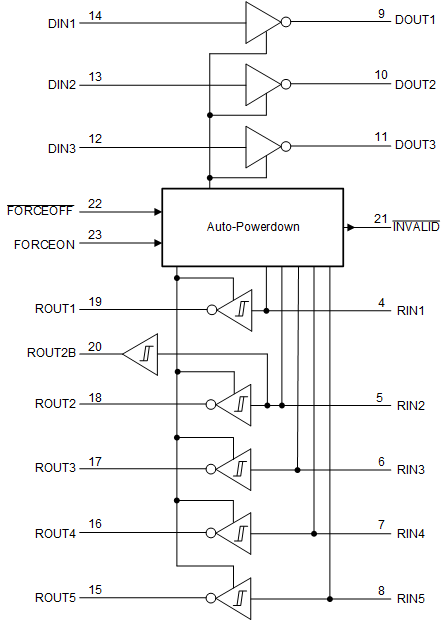

MAX3243E

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 +/-15kV IEC-ESD 保护的 3V 至 5.5V 多通道 500kbps RS-232 线路驱动器/接收器

Drivers per package: 3 Receivers per package: 5 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 0.5 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 5.4 Drivers per package: 3 Receivers per package: 5 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 0.5 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 5.4

TRS3243E

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 +/-15kV IEC-ESD 保护的 3V 至 5.5V 多通道 500kbps RS-232 线路驱动器/接收器

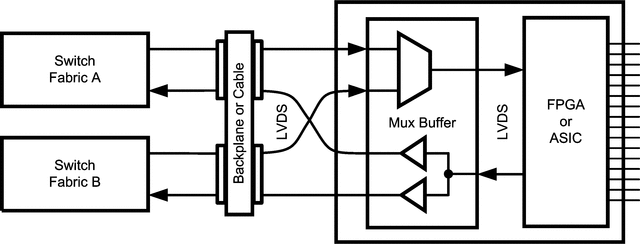

SCAN15MB200

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有预加重功能和 IEEE 1149.6 的双路 1.5Gbps 2:1/1:2 LVDS 多路复用器/缓冲器

Function: Mux buffer Protocols: BLVDS, CML, LVDS, LVPECL Number of transmitters: 2, 4 Number of receivers: 2, 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 1500 Input signal: BLVDS, CML, LVDS, LVPECL Output signal: LVCMOS, LVDS Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Mux buffer Protocols: BLVDS, CML, LVDS, LVPECL Number of transmitters: 2, 4 Number of receivers: 2, 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 1500 Input signal: BLVDS, CML, LVDS, LVPECL Output signal: LVCMOS, LVDS Rating: Catalog Operating temperature range (°C): -40 to 85

EQ50F100

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 1Gbps 至 6.25Gbps 背板均衡器

Function: Equalizer Protocols: CML Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 1.8 Signaling rate (Mbps): 6250 Input signal: CML Output signal: CML Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Equalizer Protocols: CML Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 1.8 Signaling rate (Mbps): 6250 Input signal: CML Output signal: CML Rating: Catalog Operating temperature range (°C): -40 to 85

SCAN90004

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有预加重功能的 4 通道 LVDS 缓冲器/中继器

Function: Buffer Protocols: BLVDS, CML, LVDS, LVPECL Number of transmitters: 4 Number of receivers: 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 1500 Input signal: CML, LVDS, LVPECL Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Buffer Protocols: BLVDS, CML, LVDS, LVPECL Number of transmitters: 4 Number of receivers: 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 1500 Input signal: CML, LVDS, LVPECL Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85

SN65LVDS17

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有使能端的 2.5V/3.3V 振荡器增益级/缓冲器

Function: Buffer, Translator Protocols: LVDS, LVPECL Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 2.5, 3.3 Signaling rate (Mbps): 4000 Input signal: Differential Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Buffer, Translator Protocols: LVDS, LVPECL Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 2.5, 3.3 Signaling rate (Mbps): 4000 Input signal: Differential Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85

SN65LVDS18

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有使能端的 2.5V/3.3V 振荡器增益级/缓冲器

Function: Buffer, Translator Protocols: LVDS, LVPECL Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 2.5, 3.3 Signaling rate (Mbps): 2000 Input signal: Single-ended Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Buffer, Translator Protocols: LVDS, LVPECL Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 2.5, 3.3 Signaling rate (Mbps): 2000 Input signal: Single-ended Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85

SN65LVDS19

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有使能端的 2.5V/3.3V 振荡器增益级/缓冲器

Function: Buffer, Transceiver Protocols: LVDS, LVPECL Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 2.5, 3.3 Signaling rate (Mbps): 2000 Input signal: Differential Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Buffer, Transceiver Protocols: LVDS, LVPECL Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 2.5, 3.3 Signaling rate (Mbps): 2000 Input signal: Differential Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85
