SN75C3222

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 +/-15kV ESD 保护的 3V 至 5.5V 双通道 1Mbps RS-232 线路驱动器/接收器

Drivers per package: 2 Receivers per package: 2 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 3.3, 5 Features: Powerdown ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): 0 to 70 Vout (typ) (V): 5.4 Drivers per package: 2 Receivers per package: 2 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 3.3, 5 Features: Powerdown ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): 0 to 70 Vout (typ) (V): 5.4

DS90LV011A

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 400Mbps LVDS 单路高速差动驱动器

Function: Driver Protocols: LVDS Number of transmitters: 1 Number of receivers: 0 Supply voltage (V): 3.3 Signaling rate (Mbps): 400 Input signal: LVCMOS, LVTTL Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Driver Protocols: LVDS Number of transmitters: 1 Number of receivers: 0 Supply voltage (V): 3.3 Signaling rate (Mbps): 400 Input signal: LVCMOS, LVTTL Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85

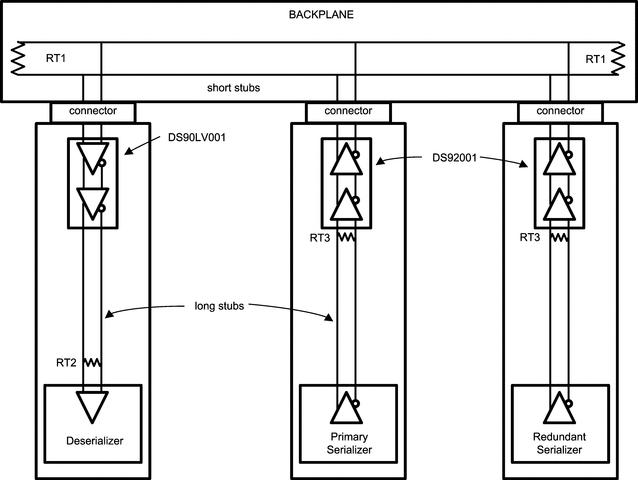

DS92001

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 3.3V B/LVDS-BLVDS 缓冲器

Function: Buffer Protocols: BLVDS Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 3.3 Signaling rate (Mbps): 400 Input signal: LVDS, LVTTL Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Buffer Protocols: BLVDS Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 3.3 Signaling rate (Mbps): 400 Input signal: LVDS, LVTTL Output signal: LVDS Rating: Catalog Operating temperature range (°C): -40 to 85

GD65232

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 +/-7.5V 输出和 +/-1.5kV ESD 保护的 5V 多通道 120kbps RS-232 线路驱动器/接收器

Drivers per package: 3 Receivers per package: 5 Logic voltage (min) (V): 5 Data rate (max) (Mbps): 0.12 Main supply voltage (nom) (V): 5 ESD HBM (kV): 1.5 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 7.5 Drivers per package: 3 Receivers per package: 5 Logic voltage (min) (V): 5 Data rate (max) (Mbps): 0.12 Main supply voltage (nom) (V): 5 ESD HBM (kV): 1.5 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 7.5

SN65C3221

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 +/-15kV ESD 保护的 3V 至 5.5V 单通道 1Mbps RS-232 线路驱动器/接收器

Drivers per package: 1 Receivers per package: 1 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 5.4 Drivers per package: 1 Receivers per package: 1 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 5.4

SN75C3221

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 +/-15kV ESD 保护的 3V 至 5.5V 单通道 1Mbps RS-232 线路驱动器/接收器

Drivers per package: 1 Receivers per package: 1 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): 0 to 70 Vout (typ) (V): 5.4 Drivers per package: 1 Receivers per package: 1 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): 0 to 70 Vout (typ) (V): 5.4

DP83847

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 10/100Mbps 以太网 PHY 收发器，具有可耐受 5V 电压的 I/O

Datarate (Mbps): 10/100 Interface type: MII Number of ports: Single Rating: Catalog Features: 5-V tolerant I/Os Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 3.3 Operating temperature range (°C): 0 to 70 Number of LEDs: 6 ESD HBM (kV): 1 Datarate (Mbps): 10/100 Interface type: MII Number of ports: Single Rating: Catalog Features: 5-V tolerant I/Os Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 3.3 Operating temperature range (°C): 0 to 70 Number of LEDs: 6 ESD HBM (kV): 1

SN65LVDT14

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 用于 LVDS 串行外设接口的多通道收发器

Function: Transceiver Protocols: LVDS Number of transmitters: 1 Number of receivers: 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 250 Input signal: LVDS, LVTTL Output signal: LVDS, LVTTL Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Transceiver Protocols: LVDS Number of transmitters: 1 Number of receivers: 4 Supply voltage (V): 3.3 Signaling rate (Mbps): 250 Input signal: LVDS, LVTTL Output signal: LVDS, LVTTL Rating: Catalog Operating temperature range (°C): -40 to 85

SN65LVDT41

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 用于 LVDS 串行外设接口的多通道收发器

Function: Transceiver Protocols: LVDS Number of transmitters: 4 Number of receivers: 1 Supply voltage (V): 3.3 Signaling rate (Mbps): 250 Input signal: LVDS, LVTTL Output signal: LVDS, LVTTL Rating: Catalog Operating temperature range (°C): -40 to 85 Function: Transceiver Protocols: LVDS Number of transmitters: 4 Number of receivers: 1 Supply voltage (V): 3.3 Signaling rate (Mbps): 250 Input signal: LVDS, LVTTL Output signal: LVDS, LVTTL Rating: Catalog Operating temperature range (°C): -40 to 85

SN65C3238

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 +/-15kV ESD 保护的 3V 至 5.5V 多通道 1Mbps RS-232 线路驱动器/接收器

Drivers per package: 5 Receivers per package: 3 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown Plus ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 5.4 Drivers per package: 5 Receivers per package: 3 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown Plus ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 5.4
