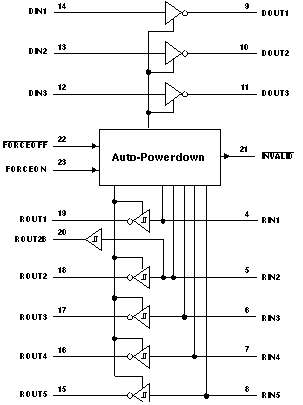

TRSF3243E

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 15kV IEC ESD 保护的多通道 RS-232 兼容线路驱动器/接收器 (3T/5R)

Drivers per package: 3 Receivers per package: 5 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 5.4 Drivers per package: 3 Receivers per package: 5 Logic voltage (min) (V): 3.3 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 3.3, 5 Features: Auto-Powerdown ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 5.4

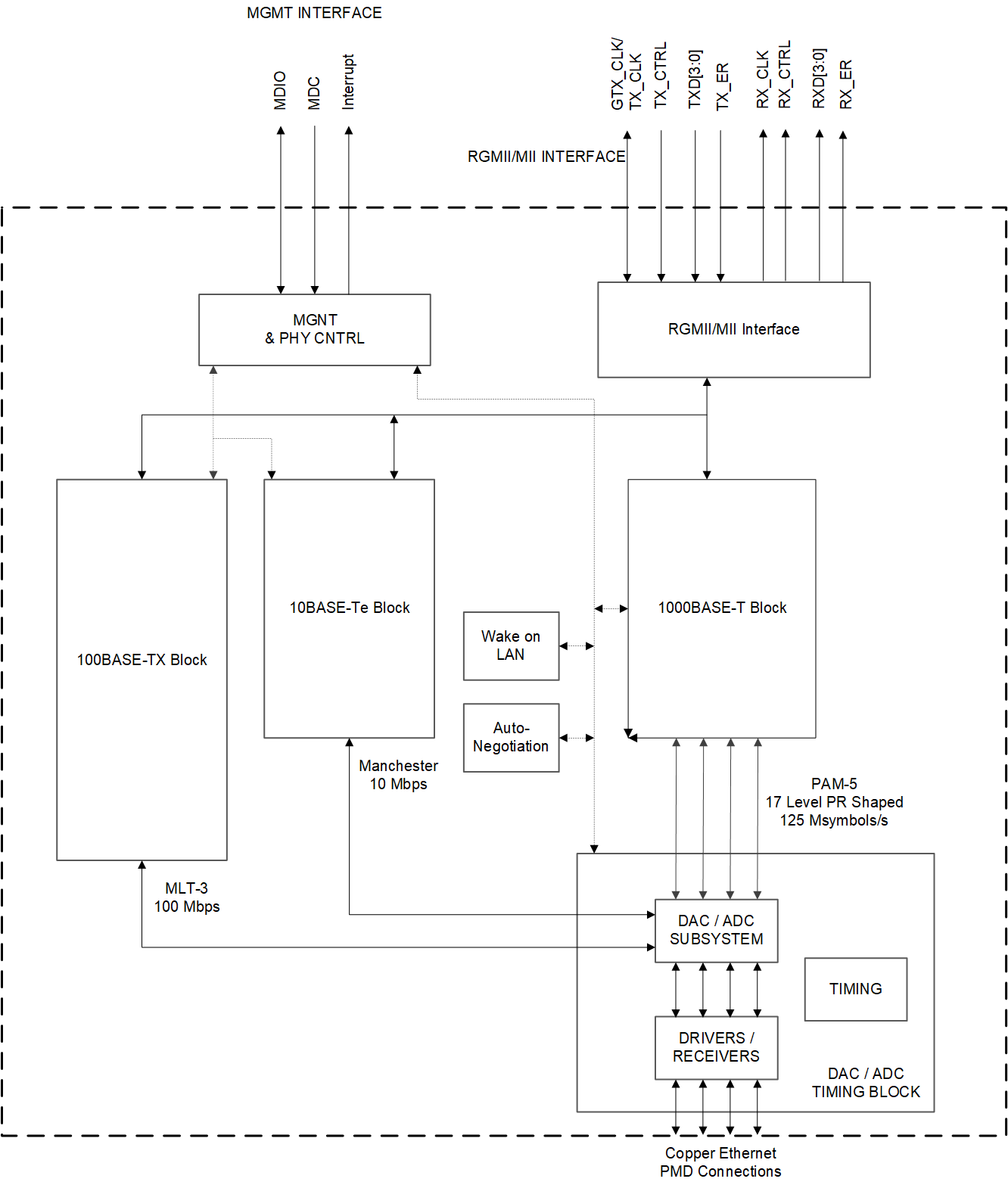

DP83561-SP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 SEFI 监控套件的航天级 (QMLV-RHA) 10/100/1000 以太网 PHY

Datarate (Mbps): 10/100/1000 Interface type: MII, RGMII Number of ports: Single Rating: Space Features: QMLV-RHA compliant, Space Qualified I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -55 to 125 Number of LEDs: 3 ESD HBM (kV): 8 Datarate (Mbps): 10/100/1000 Interface type: MII, RGMII Number of ports: Single Rating: Space Features: QMLV-RHA compliant, Space Qualified I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -55 to 125 Number of LEDs: 3 ESD HBM (kV): 8

DP83TG720R-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 RGMII 的 1000BASE-T1 汽车以太网 PHY

Datarate (Mbps): 1000BASE-T1 Interface type: RGMII Number of ports: Single Rating: Automotive I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 125 Number of LEDs: 2 ESD HBM (kV): 8 Datarate (Mbps): 1000BASE-T1 Interface type: RGMII Number of ports: Single Rating: Automotive I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 125 Number of LEDs: 2 ESD HBM (kV): 8

DP83TG720S-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 RGMII 和 SGMII 的 1000BASE-T1 汽车类以太网 PHY

Datarate (Mbps): 1000BASE-T1 Interface type: RGMII, SGMII Number of ports: Single Rating: Automotive I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 125 Number of LEDs: 2 ESD HBM (kV): 8 Datarate (Mbps): 1000BASE-T1 Interface type: RGMII, SGMII Number of ports: Single Rating: Automotive I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 125 Number of LEDs: 2 ESD HBM (kV): 8

SN55LVCP22A-SP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 RHA 的 QML V 类 2×2 1Gbps LVDS 交叉点开关

Function: Crosspoint Protocols: CML, LVDS, LVPECL Number of transmitters: 2 Number of receivers: 2 Supply voltage (V): 3.3 Signaling rate (Mbps): 1000 Input signal: CML, LVDS, LVPECL Output signal: BLVDS, LVCMOS, LVDS, LVTTL Rating: Space Operating temperature range (°C): -55 to 125 Function: Crosspoint Protocols: CML, LVDS, LVPECL Number of transmitters: 2 Number of receivers: 2 Supply voltage (V): 3.3 Signaling rate (Mbps): 1000 Input signal: CML, LVDS, LVPECL Output signal: BLVDS, LVCMOS, LVDS, LVTTL Rating: Space Operating temperature range (°C): -55 to 125

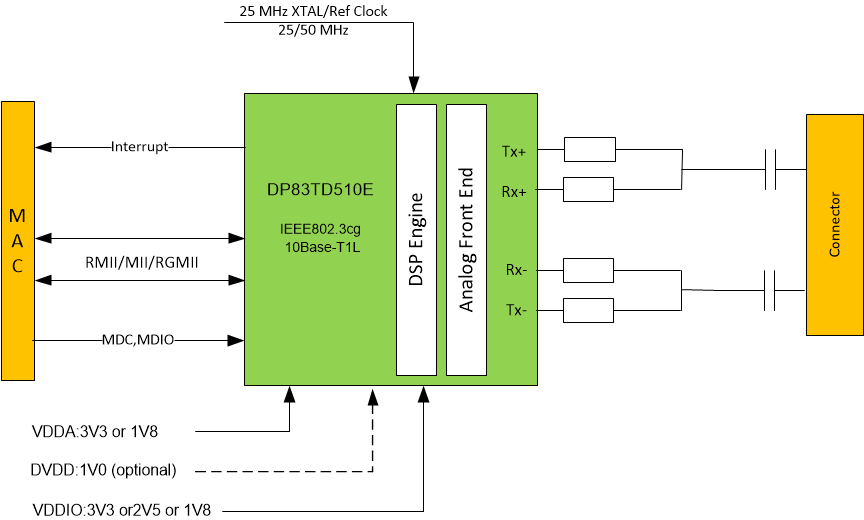

DP83TD510E

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: IEEE 802.3cg 10BASE-T1L 以太网 PHY

Datarate (Mbps): 10BASE-T1L Interface type: MII, RGMII, RMII master low power 5MHz, RMII master/slave Number of ports: Single Rating: Catalog Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 105 Number of LEDs: 3 ESD HBM (kV): 6 Datarate (Mbps): 10BASE-T1L Interface type: MII, RGMII, RMII master low power 5MHz, RMII master/slave Number of ports: Single Rating: Catalog Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 105 Number of LEDs: 3 ESD HBM (kV): 6

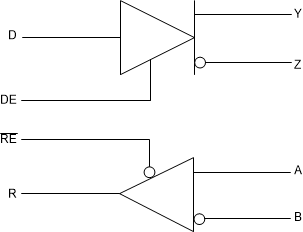

SN65MLVD203B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 IEC ESD 保护功能的多点 LVDS 线路驱动器和接收器（收发器）

Function: Transceiver Protocols: M-LVDS Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 3.3 Signaling rate (Mbps): 200 Input signal: LVTTL, M-LVDS Output signal: LVTTL, M-LVDS Rating: Catalog Operating temperature range (°C): -40 to 125 Function: Transceiver Protocols: M-LVDS Number of transmitters: 1 Number of receivers: 1 Supply voltage (V): 3.3 Signaling rate (Mbps): 200 Input signal: LVTTL, M-LVDS Output signal: LVTTL, M-LVDS Rating: Catalog Operating temperature range (°C): -40 to 125

SN55LVCP22

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: QML Q 类 2×2 1Gbps LVDS 交叉点开关

Function: Crosspoint Protocols: LVDS Number of transmitters: 2 Number of receivers: 2 Input signal: LVDS Output signal: LVTTL Rating: Military Operating temperature range (°C): -55 to 125 Function: Crosspoint Protocols: LVDS Number of transmitters: 2 Number of receivers: 2 Input signal: LVDS Output signal: LVTTL Rating: Military Operating temperature range (°C): -55 to 125

DS90LV028A-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 汽车类 LVDS 双路差动线路接收器

Function: Receiver Protocols: LVDS Number of transmitters: 0 Number of receivers: 2 Supply voltage (V): 3.3 Signaling rate (Mbps): 400 Input signal: LVDS Output signal: LVTTL, TTL Rating: Automotive Operating temperature range (°C): -40 to 105 Function: Receiver Protocols: LVDS Number of transmitters: 0 Number of receivers: 2 Supply voltage (V): 3.3 Signaling rate (Mbps): 400 Input signal: LVDS Output signal: LVTTL, TTL Rating: Automotive Operating temperature range (°C): -40 to 105

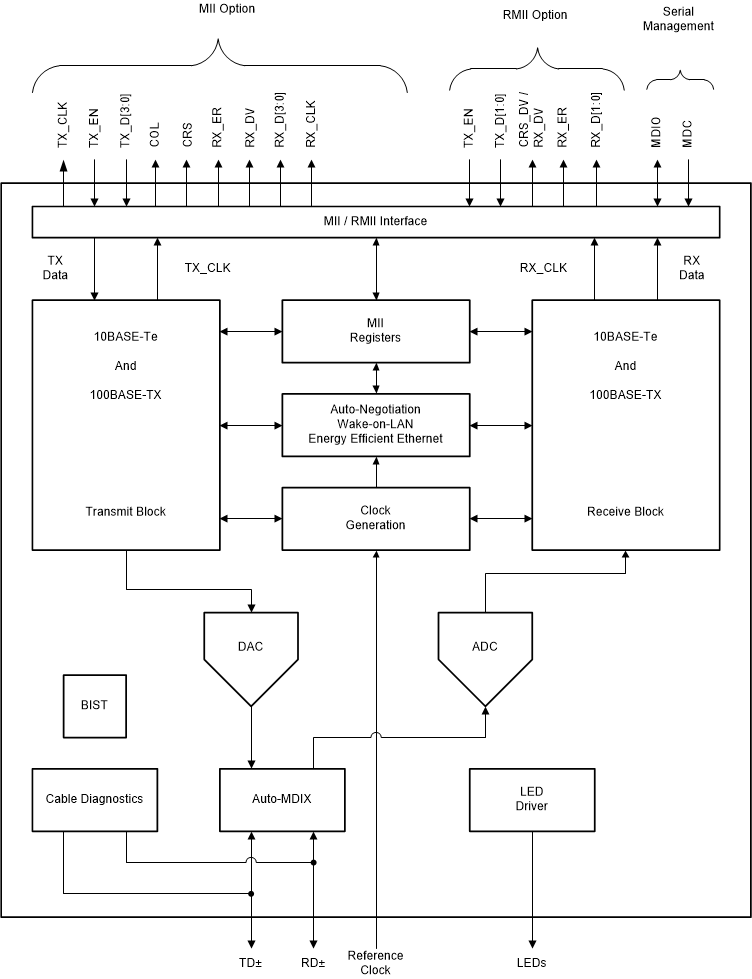

DP83826I

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有工业温度范围、MII 接口和 ENHANCED 模式的低延迟 10/100Mbps PHY

Datarate (Mbps): 10/100 Interface type: MII, RMII Number of ports: Single Rating: Catalog Features: Cable diagnostics, EEE, EtherCAT, Profinet, Single supply, WoL Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 1.8, 3.3 Operating temperature range (°C): -40 to 85 ESD HBM (kV): 5 Datarate (Mbps): 10/100 Interface type: MII, RMII Number of ports: Single Rating: Catalog Features: Cable diagnostics, EEE, EtherCAT, Profinet, Single supply, WoL Supply voltage (V): 3.3 I/O supply voltage (typ) (V): 1.8, 3.3 Operating temperature range (°C): -40 to 85 ESD HBM (kV): 5
