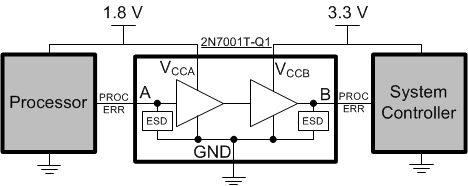

2N7001T-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 汽车类 1 位双电源缓冲电压信号转换器

Applications: GPIO Bits (#): 1 Configuration: 1 Ch A to B 0 Ch B to A High input voltage (min) (V): 1.08 High input voltage (max) (V): 3.6 Vout (min) (V): 0 Vout (max) (V): 3.6 Data rate (max) (Mbps): 100 IOH (max) (mA): -12 IOL (max) (mA): -12 Supply current (max) (µA): 3.6 Features: 4.2 Input type: Standard CMOS Output type: Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 125 Applications: GPIO Bits (#): 1 Configuration: 1 Ch A to B 0 Ch B to A High input voltage (min) (V): 1.08 更多

High input voltage (max) (V): 3.6 Vout (min) (V): 0 Vout (max) (V): 3.6 Data rate (max) (Mbps): 100 IOH (max) (mA): -12 IOL (max) (mA): -12 Supply current (max) (µA): 3.6 Features: 4.2 Input type: Standard CMOS Output type: Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 125

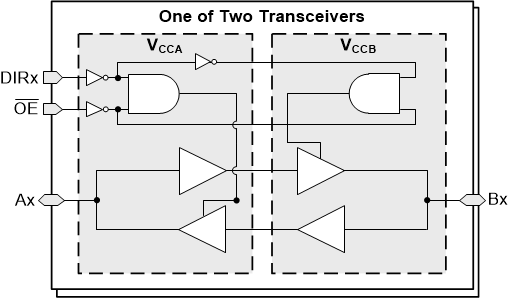

SN74AXC2T245

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有可配置电压转换和三态输出的双位 2 DIR 引脚双电源总线收发器

Technology family: AXC Applications: JTAG, UART Bits (#): 2 High input voltage (min) (V): 0.45 High input voltage (max) (V): 3.6 Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 23 Input type: CMOS Output type: 3-State Rating: Catalog Operating temperature range (°C): -40 to 125 Technology family: AXC Applications: JTAG, UART Bits (#): 2 High input voltage (min) (V): 0.45 High input voltage (max) (V): 3.6 更多

Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 23 Input type: CMOS Output type: 3-State Rating: Catalog Operating temperature range (°C): -40 to 125

SN74AXC2T245-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有独立 DIR 控制和三态输出的汽车类 2 位双电源电压电平转换

Technology family: AXC Applications: JTAG, UART Bits (#): 2 High input voltage (min) (V): 0.45 High input voltage (max) (V): 3.6 Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 23 Input type: CMOS Output type: 3-State Rating: Automotive Operating temperature range (°C): -40 to 125 Technology family: AXC Applications: JTAG, UART Bits (#): 2 High input voltage (min) (V): 0.45 High input voltage (max) (V): 3.6 更多

Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 23 Input type: CMOS Output type: 3-State Rating: Automotive Operating temperature range (°C): -40 to 125

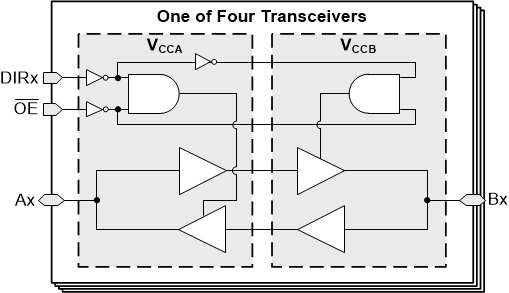

SN74AXC4T774-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有三态输出和独立方向控制输入汽车类的 4 位双电源总线收发器

Technology family: AXC Applications: SPI, UART, JTAG, I2S Bits (#): 4 High input voltage (min) (V): 0.45 High input voltage (max) (V): 3.6 Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 310 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 40 Input type: Standard CMOS Output type: 3-State Rating: Automotive Operating temperature range (°C): -40 to 125 Technology family: AXC Applications: SPI, UART, JTAG, I2S Bits (#): 4 High input voltage (min) (V): 0.45 High input voltage (max) (V): 3.6 更多

Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 310 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 40 Input type: Standard CMOS Output type: 3-State Rating: Automotive Operating temperature range (°C): -40 to 125

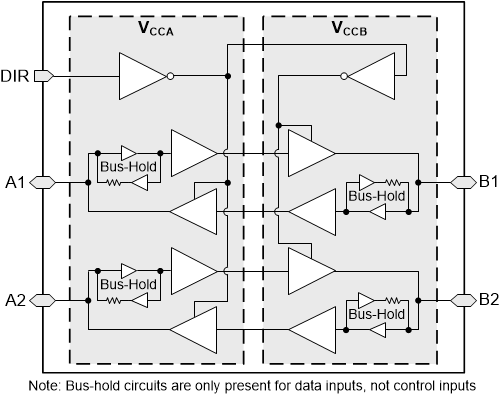

SN74AXCH2T45

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有总线保持电流的 2 位 0.65V 至 3.6V AXC 双电源总线收发器

Technology family: AXC Applications: JTAG, UART Bits (#): 2 High input voltage (min) (V): 0.45 High input voltage (max) (V): 3.6 Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 23 Input type: Standard CMOS Output type: Push-Pull Rating: Catalog Operating temperature range (°C): -40 to 125 Technology family: AXC Applications: JTAG, UART Bits (#): 2 High input voltage (min) (V): 0.45 High input voltage (max) (V): 3.6 更多

Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 23 Input type: Standard CMOS Output type: Push-Pull Rating: Catalog Operating temperature range (°C): -40 to 125

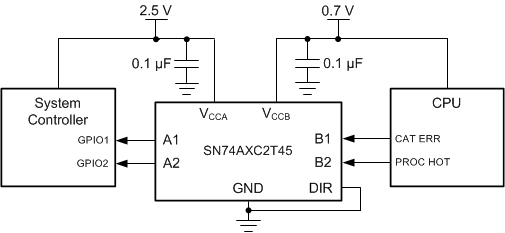

SN74AXC2T45

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有可配置电压转换的双位双电源总线收发器

Technology family: AXC Applications: UART Bits (#): 2 High input voltage (min) (V): 0.455 High input voltage (max) (V): 3.6 Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 23 Input type: Standard CMOS Output type: Push-Pull Rating: Catalog Operating temperature range (°C): -40 to 125 Technology family: AXC Applications: UART Bits (#): 2 High input voltage (min) (V): 0.455 High input voltage (max) (V): 3.6 更多

SN74AXC4T245-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有可配置电压转换和三态输出的汽车类 4 位双电源总线收发器

Technology family: AXC Applications: JTAG, SPI, UART Bits (#): 2, 4 High input voltage (min) (V): 0.45, 0.455 High input voltage (max) (V): 3.6 Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 23, 40 Input type: CMOS, Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 125 Technology family: AXC Applications: JTAG, SPI, UART Bits (#): 2, 4 High input voltage (min) (V): 0.45, 0.455 High input voltage (max) (V): 3.6 更多

Vout (min) (V): 0.65 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 23, 40 Input type: CMOS, Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 125

74LVX3245MTCX

制造商: ONSEMI
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 带 3 状态输出的 8 位双电源转换收发器

状态: 量产中 Compliance: Pb A H P Type: Bidirectional Channels: 8 Input Level: TTL VCCA Min (V): 2.3 VCCA Max (V): 3.6 VCCB Min (V): 4.5 VCCB Max (V): 5.5 IO Max (mA): 24 ICC Max (μA): 80 tpd Max (ns): 5.7 Data Rate (Mbps): n/a TA Min (°C): -40 TA Max (°C): 85 Package Type: TSSOP-24 MSL Type: 1 MSL Temp (°C): 260 ON Target: No 参考价格: $0.478

74LVX4245MTCX

制造商: ONSEMI
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 带 3 状态输出的 8 位双电源转换收发器

状态: 量产中 Compliance: Pb A H P Type: Bidirectional Channels: 8 Input Level: TTL VCCA Min (V): 4.5 VCCA Max (V): 5.5 VCCB Min (V): 2.7 VCCB Max (V): 3.6 IO Max (mA): 24 ICC Max (μA): 80 tpd Max (ns): 5.5 Data Rate (Mbps): n/a TA Min (°C): -40 TA Max (°C): 85 Package Type: TSSOP-24 MSL Type: 1 MSL Temp (°C): 260 ON Target: No 参考价格: $0.4925

74LVXC4245QSCX

制造商: ONSEMI
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 带 3 状态输出的 8 位双电源可配置电压接口收发器

状态: 已停产 Compliance: Pb A H P Type: Bidirectional Channels: 8 Input Level: TTL VCCA Min (V): 4.5 VCCA Max (V): 5.5 VCCB Min (V): 2.7 VCCB Max (V): 5.5 IO Max (mA): 24 ICC Max (μA): 80 tpd Max (ns): 5.5 Data Rate (Mbps): n/a TA Min (°C): -40 TA Max (°C): 85 Package Type: QSOP-24 MSL Type: 3 MSL Temp (°C): 260 ON Target: No 参考价格: Price N/A
