Type: Wireless MCU
Protocols: Bluetooth 5.2 Low Energy
Rating: Automotive
Operating temperature range (°C): -40 to 105
Type: Wireless MCU
Protocols: Bluetooth 5.2 Low Energy
Rating: Automotive
Operating temperature range (°C): -40 to 105
CC2652RB
数据:
分类: 微电路 / 半导体集成电路 / 射频电路
描述: 具有无晶振 BAW 谐振器的 SimpleLink™ 32 位 Arm Cortex-M4F 多协议 2.4GHz 无线 MCU
Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0
Type: Wireless MCU
Rating: Catalog
Flash memory (kByte): 352
RAM (kByte): 88
Number of GPIOs: 31
Sensitivity (best) (dBm): -102
Operating temperature range (°C): -40 to 85
Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0
Type: Wireless MCU
Rating: Catalog
Flash memory (kByte): 352
RAM (kByte): 88
Number of GPIOs: 31
Sensitivity (best) (dBm): -102
Operating temperature range (°C): -40 to 85
Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0
Type: Wireless MCU
Rating: Catalog
Flash memory (kByte): 352
RAM (kByte): 88
Number of GPIOs: 26
Sensitivity (best) (dBm): -105
Operating temperature range (°C): -40 to 85
Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0
Type: Wireless MCU
Rating: Catalog
Flash memory (kByte): 352
RAM (kByte): 88
Number of GPIOs: 26
Sensitivity (best) (dBm): -105
Operating temperature range (°C): -40 to 85
Processor: External MCU
Type: Module, Wireless network processor
Protocols: Wi-Fi 2.4 GHz, Wi-Fi 5 GHz
Throughput UDP (max) (Mbps): 16
Certifications: CE, FCC, ISED, MIC, Wi-Fi CERTIFIED Chip
Operating temperature range (°C): -40 to 85
Rating: Catalog
Processor: External MCU
Type: Module, Wireless network processor
Protocols: Wi-Fi 2.4 GHz, Wi-Fi 5 GHz
Throughput UDP (max) (Mbps): 16
Certifications: CE, FCC, ISED, MIC, Wi-Fi CERTIFIED Chip
Operating temperature range (°C): -40 to 85
Rating: Catalog

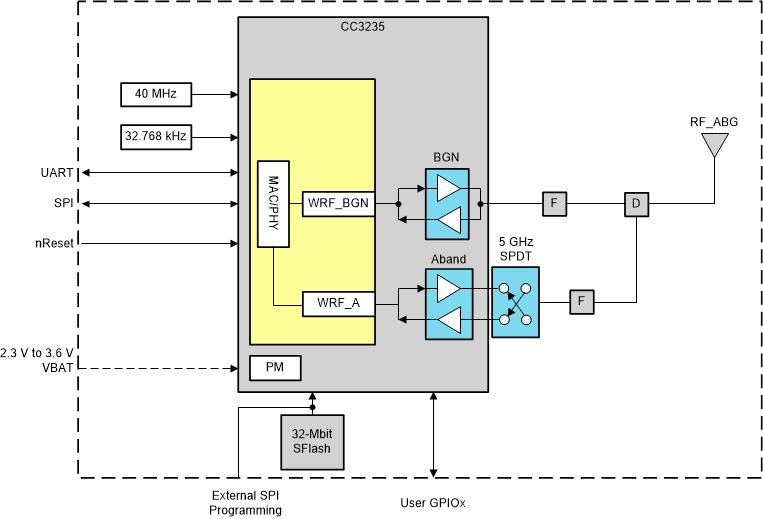

CC3235MODS
数据:
分类: 微电路 / 半导体集成电路 / 射频电路
描述: 具有 256kB RAM 闪存的 SimpleLink™ 32 位 Arm Cortex-M4 双频带 Wi-Fi CERTIFIED™ 无线模块
Processor: Arm® Cortex®-M4
Type: Module, Wireless MCU
Protocols: Wi-Fi 2.4 GHz, Wi-Fi 5 GHz
Throughput UDP (max) (Mbps): 16
Certifications: CE, FCC, ISED, MIC, Wi-Fi CERTIFIED Chip
Operating temperature range (°C): -40 to 85
Rating: Catalog
Processor: Arm® Cortex®-M4
Type: Module, Wireless MCU
Protocols: Wi-Fi 2.4 GHz, Wi-Fi 5 GHz
Throughput UDP (max) (Mbps): 16
Certifications: CE, FCC, ISED, MIC, Wi-Fi CERTIFIED Chip
Operating temperature range (°C): -40 to 85
Rating: Catalog
CC3235MODSF
数据:
分类: 微电路 / 半导体集成电路 / 射频电路
描述: 具有 1MB 闪存的 SimpleLink™ 32 位 Arm Cortex-M4 双频带 Wi-Fi CERTIFIED™ 无线模块
Processor: Arm® Cortex®-M4
Type: Module, Wireless MCU
Protocols: Wi-Fi 2.4 GHz, Wi-Fi 5 GHz
Flash memory (kByte): 1024
Throughput UDP (max) (Mbps): 16
Certifications: CE, FCC, ISED, MIC, Wi-Fi CERTIFIED Chip
Operating temperature range (°C): -40 to 85
Rating: Catalog
Processor: Arm® Cortex®-M4
Type: Module, Wireless MCU
Protocols: Wi-Fi 2.4 GHz, Wi-Fi 5 GHz
Flash memory (kByte): 1024
Throughput UDP (max) (Mbps): 16
Certifications: CE, FCC, ISED, MIC, Wi-Fi CERTIFIED Chip
Operating temperature range (°C): -40 to 85
Rating: Catalog
BGM240SA22VNA2
制造商: SILICON LABS分类: 微电路 / 半导体集成电路 / 射频电路
描述: 蓝牙 蓝牙 v5.3 RF 收发器模块 2.4GHz 不含天线，集成式，贴片 表面贴装型
DigiKey 可编程: 未验证
射频系列/标准: 蓝牙
协议: 蓝牙 v5.3
调制: GFSK
频率: 2.4GHz
数据速率: 2Mbps
功率 - 输出: 10dBm
灵敏度: -105.1dBm
串行接口: GPIO，I2C，I2S，IrDA，JTAG，PWM，SPI，UART，USART
天线类型: 不含天线，集成式，贴片
使用的 IC/零件: EFR32BG24
存储容量: 1.5MB 闪存，256kB RAM
电压 - 供电: 1.8V ~ 3.8V
电流 - 接收: 5mA ~ 5.8mA
电流 - 传输: 23.4mA
安装类型: 表面贴装型
工作温度: -40°C ~ 105°C（TA）
封装/外壳: 48-LFQFN 模块，祼焊盘
MGM240SA22VNA2
制造商: SILICON LABS分类: 微电路 / 半导体集成电路 / 射频电路
描述: 802.15.4，蓝牙 蓝牙 v5.3，Thread，Zigbee® RF 收发器模块 2.4GHz PCB 印制线，不含天线，U.FL 表面贴装型
DigiKey 可编程: 未验证
射频系列/标准: 802.15.4，蓝牙
协议: 蓝牙 v5.3，Thread，Zigbee®
调制: DSSS，GFSK，O-QPSK
频率: 2.4GHz
数据速率: 2Mbps
功率 - 输出: 10dBm
灵敏度: -105.1dBm
串行接口: GPIO，I2C，I2S，IrDA，JTAG，PWM，SPI，UART，USART
天线类型: PCB 印制线，不含天线，U.FL
使用的 IC/零件: EFR32MG24
存储容量: 1.5MB 闪存，256kB RAM
电压 - 供电: 1.8V ~ 3.8V
电流 - 接收: 5.1mA ~ 5.9mA
电流 - 传输: 4.6mA ~ 23.4mA
安装类型: 表面贴装型
工作温度: -40°C ~ 105°C
封装/外壳: 模块
CC2652R
数据:
分类: 微电路 / 半导体集成电路 / 射频电路
描述: 具有 352kB 闪存的 SimpleLink™ 32 位 Arm Cortex-M4F 多协议 2.4GHz 无线 MCU
Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0
Type: Wireless MCU
Rating: Catalog
Flash memory (kByte): 352
RAM (kByte): 88
Number of GPIOs: 31
Sensitivity (best) (dBm): -105
Operating temperature range (°C): -40 to 105
Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0
Type: Wireless MCU
Rating: Catalog
Flash memory (kByte): 352
RAM (kByte): 88
Number of GPIOs: 31
Sensitivity (best) (dBm): -105
Operating temperature range (°C): -40 to 105
CC2642R
数据:
分类: 微电路 / 半导体集成电路 / 射频电路
描述: 具有 352kB 闪存的 SimpleLink™ 32 位 Arm Cortex-M4F 低功耗 Bluetooth® 无线 MCU
Protocols: Bluetooth 5.2 Low Energy
Type: Wireless MCU
Rating: Catalog
Flash memory (kByte): 352
RAM (kByte): 88
Number of GPIOs: 31
Sensitivity (best) (dBm): -97
Operating temperature range (°C): -40 to 105
Protocols: Bluetooth 5.2 Low Energy
Type: Wireless MCU
Rating: Catalog
Flash memory (kByte): 352
RAM (kByte): 88
Number of GPIOs: 31
Sensitivity (best) (dBm): -97
Operating temperature range (°C): -40 to 105
