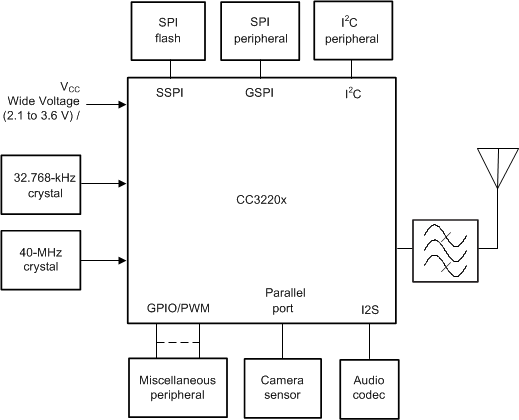

CC3220R

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有 6 个 TLS/SSL 插槽和 256kB RAM 的 SimpleLink™ 32 位 Arm Cortex-M4 Wi-Fi® 无线 MCU

Processor: Arm® Cortex®-M4 Type: Wireless MCU Protocols: Wi-Fi 2.4 GHz Throughput UDP (max) (Mbps): 16 Security: Networking security (WPA3) Features: 4 STAs, 6 secure sockets, 802.11bgn, IPv4 & IPv6 Certifications: Wi-Fi CERTIFIED Chip Operating temperature range (°C): -40 to 85 Rating: Catalog Processor: Arm® Cortex®-M4 Type: Wireless MCU Protocols: Wi-Fi 2.4 GHz Throughput UDP (max) (Mbps): 16 Security: Networking security (WPA3) Features: 4 STAs, 6 secure sockets, 802.11bgn, IPv4 & IPv6 Certifications: Wi-Fi CERTIFIED Chip Operating temperature range (°C): -40 to 85 Rating: Catalog

CC3220S

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有安全启动和 256kB RAM 的 SimpleLink™ 32 位 Arm Cortex-M4 Wi-Fi® 无线 MCU

Processor: Arm® Cortex®-M4 Type: Wireless MCU Protocols: Wi-Fi 2.4 GHz Throughput UDP (max) (Mbps): 16 Features: 4 STAs, 6 secure sockets, 802.11bgn, IPv4 & IPv6 Certifications: Wi-Fi CERTIFIED Chip Operating temperature range (°C): -40 to 85 Rating: Catalog Processor: Arm® Cortex®-M4 Type: Wireless MCU Protocols: Wi-Fi 2.4 GHz Throughput UDP (max) (Mbps): 16 Features: 4 STAs, 6 secure sockets, 802.11bgn, IPv4 & IPv6 Certifications: Wi-Fi CERTIFIED Chip Operating temperature range (°C): -40 to 85 Rating: Catalog

CC3220SF

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有 1MB 闪存和 256kB RAM 的 SimpleLink™ 32 位 Arm Cortex-M4 Wi-Fi® 无线 MCU

Processor: Arm® Cortex®-M4 Type: Wireless MCU Protocols: Wi-Fi 2.4 GHz Flash memory (kByte): 1024 Throughput UDP (max) (Mbps): 16 Features: 4 STAs, 6 secure sockets, 802.11bgn, IPv4 & IPv6 Certifications: Wi-Fi CERTIFIED Chip Operating temperature range (°C): -40 to 85 Rating: Catalog Processor: Arm® Cortex®-M4 Type: Wireless MCU Protocols: Wi-Fi 2.4 GHz Flash memory (kByte): 1024 Throughput UDP (max) (Mbps): 16 Features: 4 STAs, 6 secure sockets, 802.11bgn, IPv4 & IPv6 Certifications: Wi-Fi CERTIFIED Chip Operating temperature range (°C): -40 to 85 Rating: Catalog

CC2650MODA

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有 128kB 闪存的 SimpleLink™ 32 位 Arm Cortex-M3 多协议 2.4GHz 无线模块

Protocols: Bluetooth low energy 4.2 Type: Wireless module Features: LE 1M PHY Peripherals: 1 UART, 12-bit ADC 8-channel, 2 SPI, 4 timers, I2C, I2S Rating: Catalog Flash memory (kByte): 128 RAM (kByte): 20 Number of GPIOs: 15 Security: 128-bit AES Sensitivity (best) (dBm): -97 Operating temperature range (°C): -40 to 85 Protocols: Bluetooth low energy 4.2 Type: Wireless module Features: LE 1M PHY Peripherals: 1 UART, 12-bit ADC 8-channel, 2 SPI, 4 timers, I2C, I2S Rating: Catalog Flash memory (kByte): 128 RAM (kByte): 20 Number of GPIOs: 15 Security: 128-bit AES 更多

Sensitivity (best) (dBm): -97 Operating temperature range (°C): -40 to 85

RI-TRP-DR2B

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 32mm 多页玻璃管型感应器

Frequency range: 134.2 kHz Standard: TI protocol Operating temperature range (°C): -25 to 85 Rating: Catalog Transmission principle: HDX - FSK Frequency range: 134.2 kHz Standard: TI protocol Operating temperature range (°C): -25 to 85 Rating: Catalog Transmission principle: HDX - FSK

CC2564C

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有基本速率 (BR)、增强数据速率 (EDR) 和低功耗 (LE) 模块的 Bluetooth® 5.1

Type: Transceiver Protocols: Dual-mode Bluetooth Security: Networking security Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Transceiver Protocols: Dual-mode Bluetooth Security: Networking security Operating temperature range (°C): -40 to 85 Rating: Catalog

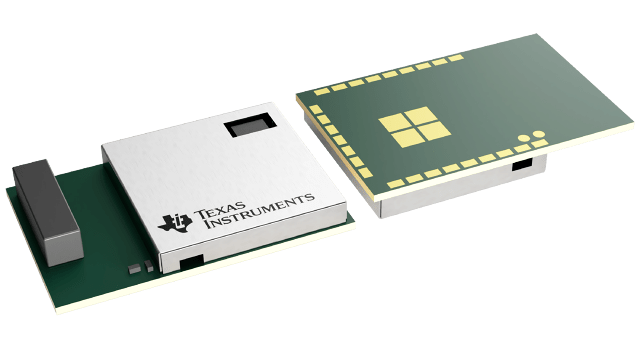

CC2564MODA

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有基本速率、增强数据速率和带集成天线的低功耗 (LE) 模块的 Bluetooth® 4.1

Type: Module, Transceiver Protocols: Dual-mode Bluetooth Security: Networking security Features: Assisted A2DP/HFP 1.6, BR / EDR / LE, Class 1 TX Power Operating temperature range (°C): -30 to 85 Rating: Catalog Type: Module, Transceiver Protocols: Dual-mode Bluetooth Security: Networking security Features: Assisted A2DP/HFP 1.6, BR / EDR / LE, Class 1 TX Power Operating temperature range (°C): -30 to 85 Rating: Catalog

RF37S114

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 尺寸为 4mm × 4mm 且符合 ISO15693 的 Tag-it HF-I 5 类 NFC 应答器

Frequency range: 13.56 MHz Standard: ISO/IEC 15693-2, ISO/IEC 15693-3, ISO/IEC 18000-3, NFC Type 5 Operating temperature range (°C): -25 to 70 Rating: Catalog Transmission principle: ASK, FSK Frequency range: 13.56 MHz Standard: ISO/IEC 15693-2, ISO/IEC 15693-3, ISO/IEC 18000-3, NFC Type 5 Operating temperature range (°C): -25 to 70 Rating: Catalog Transmission principle: ASK, FSK

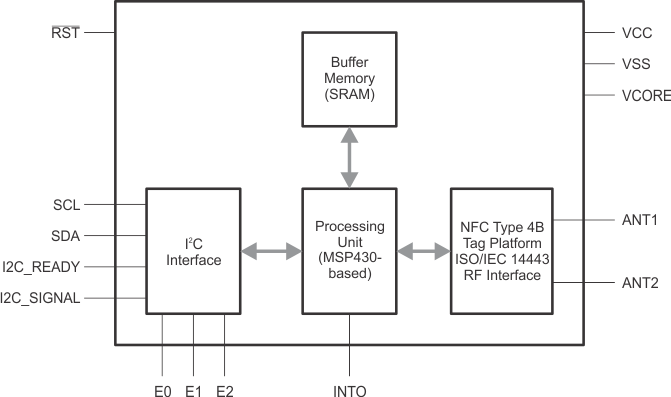

RF430CL331H

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 用于大型文件传输的动态 NFC 接口应答器

Frequency range: 13.56 MHz Standard: ISO 14443B Operating temperature range (°C): -40 to 85 Rating: Catalog Transmission principle: FDX - PSK Frequency range: 13.56 MHz Standard: ISO 14443B Operating temperature range (°C): -40 to 85 Rating: Catalog Transmission principle: FDX - PSK

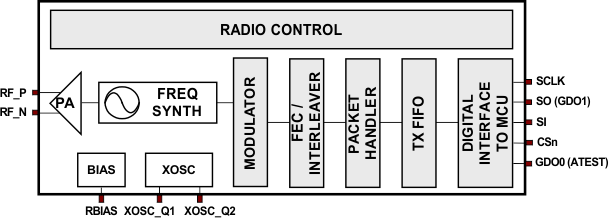

CC1150

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 适用于低功耗无线应用的高度集成式多通道无线发送器

Protocols: Proprietary Modulation scheme: (G)MSK, 2(G)FSK, ASK, OOK Frequency bands: 300-348, 400-464, 779-928 Type: Transmitter TX power (max) (dBm): 10 Data rate (max) (Mbps): 0.5 Rating: Catalog Operating temperature range (°C): -40 to 85 Protocols: Proprietary Modulation scheme: (G)MSK, 2(G)FSK, ASK, OOK Frequency bands: 300-348, 400-464, 779-928 Type: Transmitter TX power (max) (dBm): 10 Data rate (max) (Mbps): 0.5 Rating: Catalog Operating temperature range (°C): -40 to 85
