DLPC3479

数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件

描述: DLP® controller for DLP4710LC digital micromirror device (DMD)

Chipset family: DLP4710LC, DLPC3479 Component type: Controller Pattern rate, binary (max) (Hz): 2487 Display resolution (max): 1080p (1920x1080) Rating: Catalog Pattern rate, 8-bit (max) (Hz): 437 Micromirror driver support: Integrated Input frame rate (Hz): 60 Operating temperature range (°C): -30 to 85 Chipset family: DLP4710LC, DLPC3479 Component type: Controller Pattern rate, binary (max) (Hz): 2487 Display resolution (max): 1080p (1920x1080) Rating: Catalog Pattern rate, 8-bit (max) (Hz): 437 Micromirror driver support: Integrated Input frame rate (Hz): 60 Operating temperature range (°C): -30 to 85

DLP2010NIR

数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件

描述: 0.2-inch WVGA NIR DLP® digital micromirror device (DMD)

Illumination wavelength (min) (nm): 700 Illumination wavelength (max) (nm): 2500 Micromirror array size: 854 x 480 Chipset family: DLP2010NIR Micromirror pitch (mm): 0.0054 Component type: DMD Micromirror array orientation: Orthogonal Pattern rate, binary (max) (Hz): 2880 Array diagonal (in): 0.2 Display resolution (max): WVGA Rating: Catalog Operating temperature range (°C): 0 to 70 Micromirror driver support: Integrated Thermal dissipation (°C/W): 7.9 Illumination wavelength (min) (nm): 700 Illumination wavelength (max) (nm): 2500 Micromirror array size: 854 x 480 Chipset family: DLP2010NIR Micromirror pitch (mm): 0.0054 Component type: DMD 更多

Micromirror array orientation: Orthogonal Pattern rate, binary (max) (Hz): 2880 Array diagonal (in): 0.2 Display resolution (max): WVGA Rating: Catalog Operating temperature range (°C): 0 to 70 Micromirror driver support: Integrated Thermal dissipation (°C/W): 7.9

DLP650LNIR

数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件

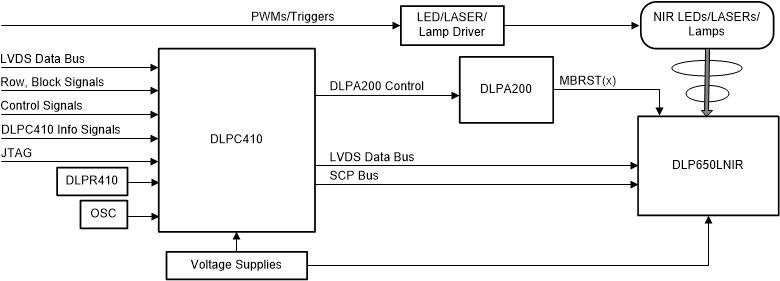

描述: 0.65-inch WXGA NIR DLP® digital micromirror device (DMD)

Illumination wavelength (min) (nm): 800 Illumination wavelength (max) (nm): 2000 Micromirror array size: 1280 x 800 Micromirror pitch (mm): 0.0108 Component type: DMD Micromirror array orientation: Orthogonal Pattern rate, binary (max) (Hz): 12500 Array diagonal (in): 0.65 Display resolution (max): WXGA (1280x800) Rating: Catalog Operating temperature range (°C): 0 to 70 Pattern rate, 8-bit (max) (Hz): 1563 Micromirror driver support: External Thermal dissipation (°C/W): 0.5 Illumination wavelength (min) (nm): 800 Illumination wavelength (max) (nm): 2000 Micromirror array size: 1280 x 800 Micromirror pitch (mm): 0.0108 Component type: DMD Micromirror array orientation: Orthogonal 更多

Pattern rate, binary (max) (Hz): 12500 Array diagonal (in): 0.65 Display resolution (max): WXGA (1280x800) Rating: Catalog Operating temperature range (°C): 0 to 70 Pattern rate, 8-bit (max) (Hz): 1563 Micromirror driver support: External Thermal dissipation (°C/W): 0.5

DLP3310

数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件

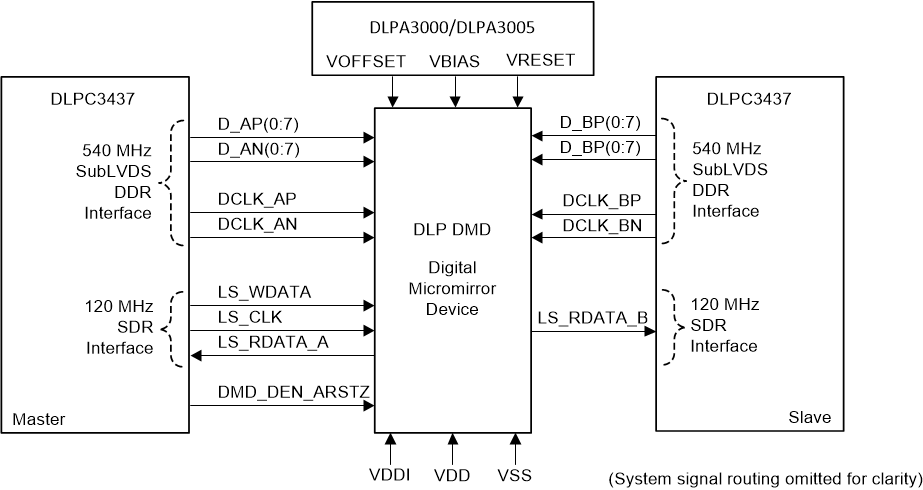

描述: 0.33 英寸 1080p DLP® 数字微镜器件 (DMD)

Component type: DMD Display resolution (max): 1080p (1920x1080) System brightness (max) (lm): 800 Array diagonal (in): 0.33 Chipset family: DLP3310, DLPA3000, DLPA3005, DLPC3437 Micromirror array size: 1368x768 Input frame rate (max) (Hz): 60 Micromirror pitch (mm): 0.0054 Rating: Catalog Operating temperature range (°C): 0 to 70 Component type: DMD Display resolution (max): 1080p (1920x1080) System brightness (max) (lm): 800 Array diagonal (in): 0.33 Chipset family: DLP3310, DLPA3000, DLPA3005, DLPC3437 Micromirror array size: 1368x768 Input frame rate (max) (Hz): 60 Micromirror pitch (mm): 0.0054 Rating: Catalog Operating temperature range (°C): 0 to 70

DLP230GP

数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件

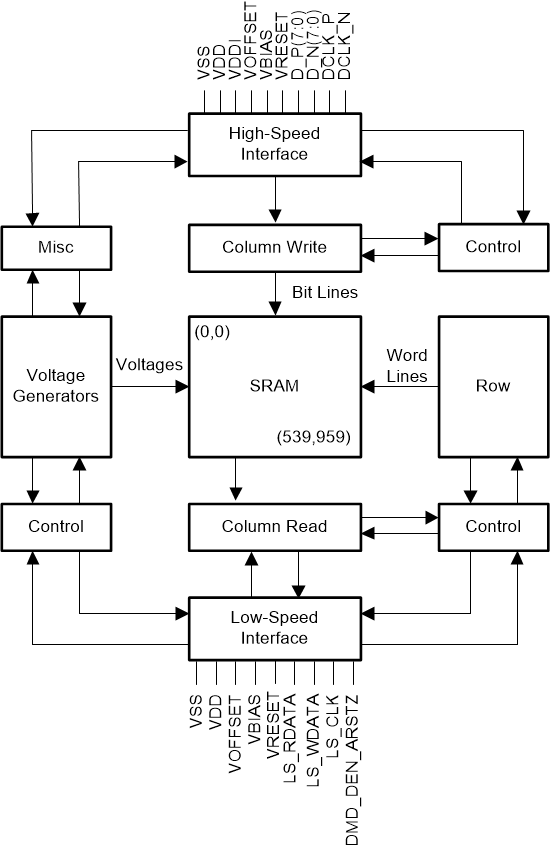

描述: 0.23 英寸 qHD DLP® 数字微镜器件 (DMD)

Component type: DMD Display resolution (max): qHD (960x540) System brightness (max) (lm): 450 Array diagonal (in): 0.23 Chipset family: DLP230GP, DLPA2000, DLPA2005, DLPA3000, DLPC3432 Micromirror array size: 960x540 Input frame rate (max) (Hz): 120 Micromirror pitch (mm): 0.0054 Rating: Catalog Operating temperature range (°C): 0 to 70 Component type: DMD Display resolution (max): qHD (960x540) System brightness (max) (lm): 450 Array diagonal (in): 0.23 Chipset family: DLP230GP, DLPA2000, DLPA2005, DLPA3000, DLPC3432 Micromirror array size: 960x540 Input frame rate (max) (Hz): 120 Micromirror pitch (mm): 0.0054 Rating: Catalog Operating temperature range (°C): 0 to 70

DLP2010

数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件

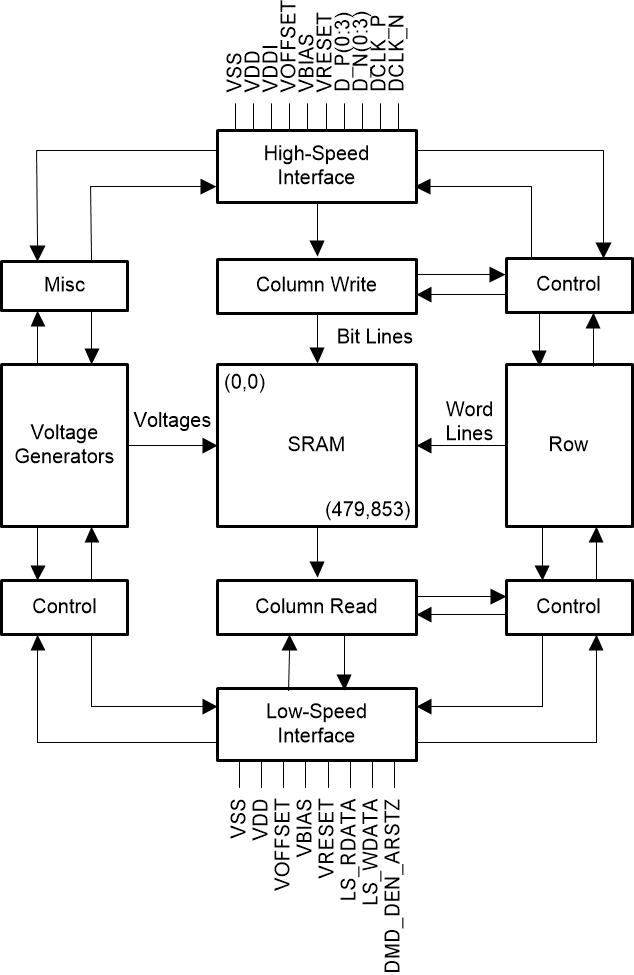

描述: 0.20 英寸 WVGA DLP® 数字微镜器件 (DMD)

Component type: DMD Display resolution (max): WVGA (854x480) System brightness (max) (lm): 200 Array diagonal (in): 0.2 Chipset family: DLP2010, DLPA2000, DLPA2005, DLPA3000, DLPC3430, DLPC3435 Micromirror array size: 854x480 Input frame rate (max) (Hz): 120 Micromirror pitch (mm): 0.0054 Rating: Catalog Operating temperature range (°C): 0 to 70 Component type: DMD Display resolution (max): WVGA (854x480) System brightness (max) (lm): 200 Array diagonal (in): 0.2 Chipset family: DLP2010, DLPA2000, DLPA2005, DLPA3000, DLPC3430, DLPC3435 Micromirror array size: 854x480 Input frame rate (max) (Hz): 120 Micromirror pitch (mm): 0.0054 Rating: Catalog Operating temperature range (°C): 0 to 70

DLP230KP

数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件

描述: 0.23 英寸 HD DLP® 数字微镜器件 (DMD)

Component type: DMD Display resolution (max): 720p (1280x720) System brightness (max) (lm): 450 Array diagonal (in): 0.23 Chipset family: DLP230KP, DLPA2000, DLPA2005, DLPA3000, DLPC3434 Micromirror array size: 960x540 Input frame rate (max) (Hz): 60 Micromirror pitch (mm): 0.0054 Rating: Catalog Operating temperature range (°C): 0 to 70 Component type: DMD Display resolution (max): 720p (1280x720) System brightness (max) (lm): 450 Array diagonal (in): 0.23 Chipset family: DLP230KP, DLPA2000, DLPA2005, DLPA3000, DLPC3434 Micromirror array size: 960x540 Input frame rate (max) (Hz): 60 Micromirror pitch (mm): 0.0054 Rating: Catalog Operating temperature range (°C): 0 to 70

DLPC3434

数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件

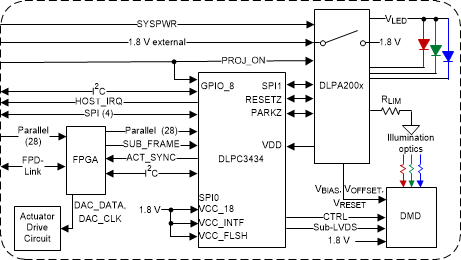

描述: 适用于 DLP230KP (0.23 HD) DMD 的 DLP® 显示控制器

Component type: Display Controller Display resolution (max): HD (1280x720) System brightness (max) (lm): 400 Chipset family: DLP230KP, DLPA2000, DLPA2005, DLPA3000, DLPC3434 Input frame rate (max) (Hz): 60 Rating: Catalog Video ports: 24-bit RGB, Parallel Operating temperature range (°C): -30 to 85 Component type: Display Controller Display resolution (max): HD (1280x720) System brightness (max) (lm): 400 Chipset family: DLP230KP, DLPA2000, DLPA2005, DLPA3000, DLPC3434 Input frame rate (max) (Hz): 60 Rating: Catalog Video ports: 24-bit RGB, Parallel Operating temperature range (°C): -30 to 85

TPS99001-Q1

数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件

描述: 用于汽车外部照明的 DLP® 系统管理与照明控制器

Component type: PMIC/LED Driver Chipset family: DLP5531-Q1, DLP5533A-Q1 Rating: Automotive Operating temperature range (°C): -40 to 105 Component type: PMIC/LED Driver Chipset family: DLP5531-Q1, DLP5533A-Q1 Rating: Automotive Operating temperature range (°C): -40 to 105

DLPC3470

数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件

描述: DLP® controller for DLP2010LC digital micromirror device (DMD)

Chipset family: DLP2010LC, DLP2010NIR, DLPA2005, DLPC3470 Component type: Controller Pattern rate, binary (max) (Hz): 2487 Display resolution (max): WVGA (854x480) Rating: Catalog Pattern rate, 8-bit (max) (Hz): 272 Micromirror driver support: Integrated Input frame rate (Hz): 120 Operating temperature range (°C): -30 to 85 Chipset family: DLP2010LC, DLP2010NIR, DLPA2005, DLPC3470 Component type: Controller Pattern rate, binary (max) (Hz): 2487 Display resolution (max): WVGA (854x480) Rating: Catalog Pattern rate, 8-bit (max) (Hz): 272 Micromirror driver support: Integrated Input frame rate (Hz): 120 Operating temperature range (°C): -30 to 85
