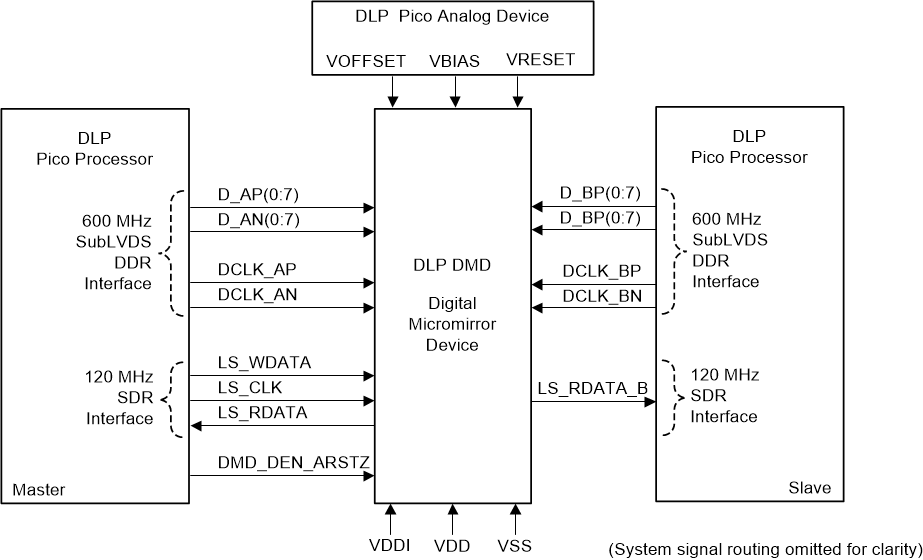

Component type: DMD
Display resolution (max): 1080p (1920x1080)
System brightness (max) (lm): 1800
Array diagonal (in): 0.47
Chipset family: DLP4710, DLPA3000, DLPA3005, DLPC3439
Micromirror array size: 1920x1080
Input frame rate (max) (Hz): 120
Micromirror pitch (mm): 0.0054
Rating: Catalog
Operating temperature range (°C): 0 to 70
Component type: DMD
Display resolution (max): 1080p (1920x1080)
System brightness (max) (lm): 1800
Array diagonal (in): 0.47
Chipset family: DLP4710, DLPA3000, DLPA3005, DLPC3439
Micromirror array size: 1920x1080
Input frame rate (max) (Hz): 120
Micromirror pitch (mm): 0.0054
Rating: Catalog
Operating temperature range (°C): 0 to 70

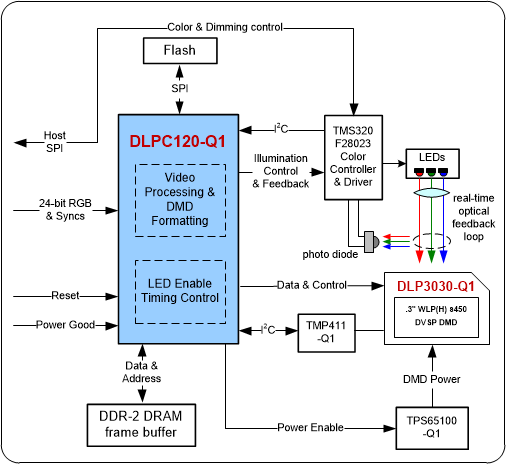

Display resolution (max): 864 x 480
Component type: Controller
Chipset family: DLP3020-Q1, DLP3030-Q1
Rating: Automotive
Input frame rate (max) (Hz): 60
Video ports: 24-bit RGB
Operating temperature range (°C): -40 to 105
Display resolution (max): 864 x 480
Component type: Controller
Chipset family: DLP3020-Q1, DLP3030-Q1
Rating: Automotive
Input frame rate (max) (Hz): 60
Video ports: 24-bit RGB
Operating temperature range (°C): -40 to 105
DLPC150
数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件
描述: DLP® controller for DLP2010NIR digital micromirror device (DMD)
Chipset family: DLP2010NIR
Component type: Controller
Pattern rate, binary (max) (Hz): 2880
Number of triggers: 1 / 2
Display resolution (max): WVGA
Rating: Catalog
Operating temperature range (°C): -30 to 85
Number of GPIOs: 18
Micromirror driver support: Integrated
Thermal dissipation (°C/W): 10.1
Chipset family: DLP2010NIR
Component type: Controller
Pattern rate, binary (max) (Hz): 2880
Number of triggers: 1 / 2
Display resolution (max): WVGA
Rating: Catalog
Operating temperature range (°C): -30 to 85
Number of GPIOs: 18
Micromirror driver support: Integrated
Thermal dissipation (°C/W): 10.1

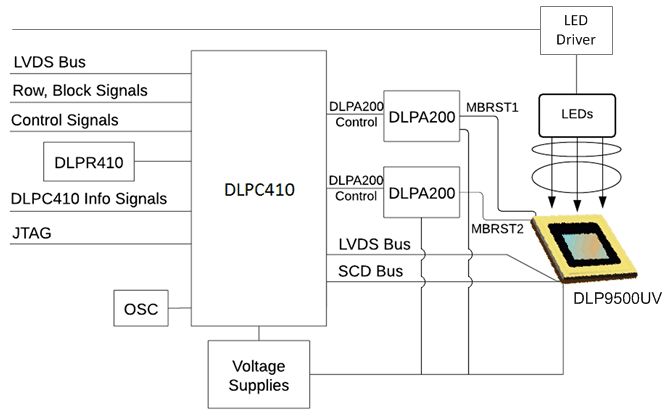

DLP9500UV
数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件
描述: 0.96-inch 1080p UV DLP® digital micromirror device (DMD)
Illumination wavelength (min) (nm): 363
Illumination wavelength (max) (nm): 420
Micromirror array size: 1920 x 1080
Pattern rate, binary (max) (Hz): 23148
Pixel data rate (max) (Gbpp): 48
Micromirror pitch (mm): 0.0108
Component type: DMD
Rating: Catalog
Display resolution (max): 1080p (1920x1080)
Pattern rate, 8-bit (max) (Hz): 2893
Micromirror array orientation: Orthogonal
Micromirror driver support: External
Thermal dissipation (°C/W): 0.5
Operating temperature range (°C): 20 to 30
Illumination wavelength (min) (nm): 363
Illumination wavelength (max) (nm): 420
Micromirror array size: 1920 x 1080
Pattern rate, binary (max) (Hz): 23148
Pixel data rate (max) (Gbpp): 48
Micromirror pitch (mm): 0.0108
更多
Component type: DMD
Rating: Catalog
Display resolution (max): 1080p (1920x1080)
Pattern rate, 8-bit (max) (Hz): 2893
Micromirror array orientation: Orthogonal
Micromirror driver support: External
Thermal dissipation (°C/W): 0.5
Operating temperature range (°C): 20 to 30

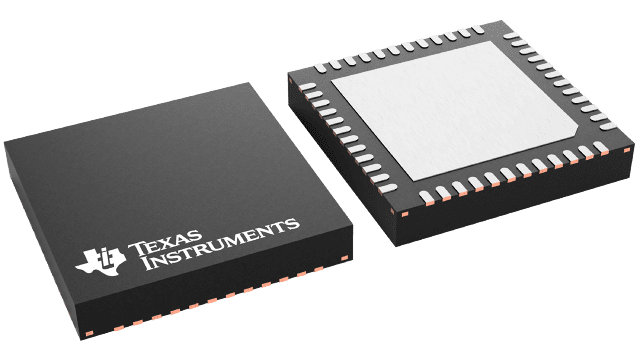

DLPA2005
数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件
描述: 适用于 DLP2010 和 DLP2010NIR (0.2 WVGA) DMD 的 DLP® PMIC/LED 驱动器
Component type: PMIC/LED Driver
Rating: Catalog
Operating temperature range (°C): -10 to 85
Component type: PMIC/LED Driver
Rating: Catalog
Operating temperature range (°C): -10 to 85

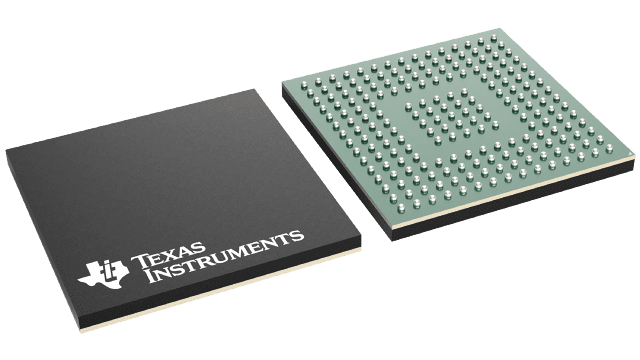

DLPC900
数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件
描述: DLP® controller for DLP6500, DLP670S, DLP500YX, and DLP9000 digital micromirror devices (DMDs)
Component type: Controller
Pattern rate, binary (max) (Hz): 16129
Rating: Catalog
Operating temperature range (°C): 0 to 55
Pattern rate, 8-bit (max) (Hz): 2016
Thermal dissipation (°C/W): 4.4
Component type: Controller
Pattern rate, binary (max) (Hz): 16129
Rating: Catalog
Operating temperature range (°C): 0 to 55
Pattern rate, 8-bit (max) (Hz): 2016
Thermal dissipation (°C/W): 4.4

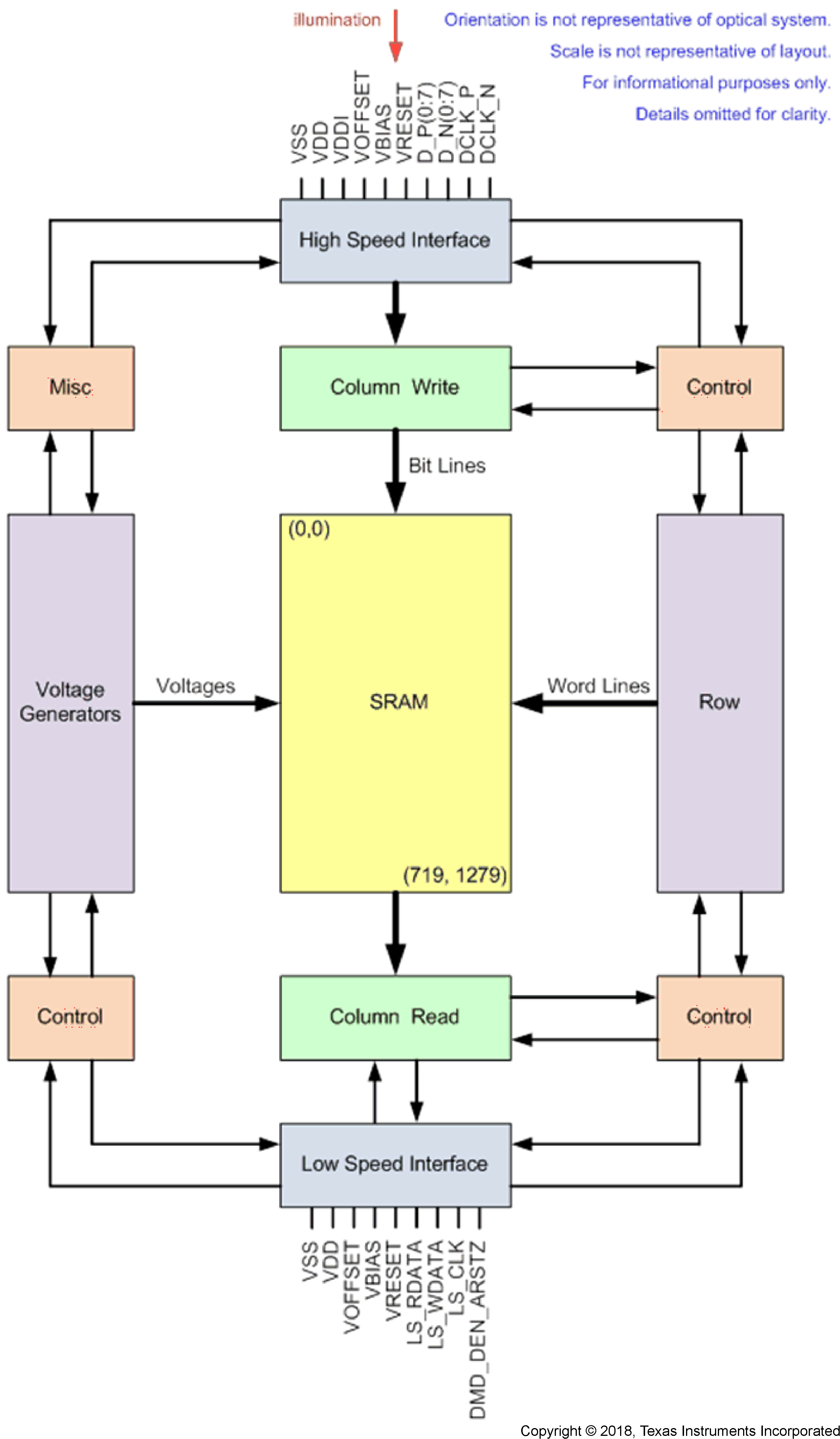

Component type: DMD
Display resolution (max): 720p (1280x720)
System brightness (max) (lm): 300
Array diagonal (in): 0.3
Chipset family: DLP3010, DLPA2000, DLPA2005, DLPA3000, DLPC3433, DLPC3438
Micromirror array size: 1280x720
Input frame rate (max) (Hz): 120
Micromirror pitch (mm): 0.0054
Rating: Catalog
Operating temperature range (°C): 0 to 70
Component type: DMD
Display resolution (max): 720p (1280x720)
System brightness (max) (lm): 300
Array diagonal (in): 0.3
Chipset family: DLP3010, DLPA2000, DLPA2005, DLPA3000, DLPC3433, DLPC3438
Micromirror array size: 1280x720
Input frame rate (max) (Hz): 120
Micromirror pitch (mm): 0.0054
Rating: Catalog
Operating temperature range (°C): 0 to 70
Component type: PMIC/LED Driver
Rating: Catalog
Operating temperature range (°C): -10 to 85
Component type: PMIC/LED Driver
Rating: Catalog
Operating temperature range (°C): -10 to 85
DLP4500NIR
数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件
描述: 0.45-inch WXGA NIR DLP® digital micromirror device (DMD)
Illumination wavelength (min) (nm): 700
Illumination wavelength (max) (nm): 2500
Micromirror array size: 912 x 1140
Chipset family: DLP4500NIR
Micromirror pitch (mm): 0.0076
Component type: DMD
Micromirror array orientation: Diamond
Pattern rate, binary (max) (Hz): 4225
Array diagonal (in): 0.45
Display resolution (max): WXGA
Rating: Catalog
Operating temperature range (°C): 10 to 70
Pattern rate, 8-bit (max) (Hz): 120
Micromirror driver support: Integrated
Thermal dissipation (°C/W): 2
Illumination wavelength (min) (nm): 700
Illumination wavelength (max) (nm): 2500
Micromirror array size: 912 x 1140
Chipset family: DLP4500NIR
Micromirror pitch (mm): 0.0076
更多
Component type: DMD
Micromirror array orientation: Diamond
Pattern rate, binary (max) (Hz): 4225
Array diagonal (in): 0.45
Display resolution (max): WXGA
Rating: Catalog
Operating temperature range (°C): 10 to 70
Pattern rate, 8-bit (max) (Hz): 120
Micromirror driver support: Integrated
Thermal dissipation (°C/W): 2
DLP5500
数据:
分类: 光电子器件 / 电子显示器件及组件 / 其他电子显示器件及组件
描述: 0.55-inch XGA DLP® digital micromirror device (DMD)
Illumination wavelength (min) (nm): 420
Illumination wavelength (max) (nm): 700
Micromirror array size: 1024 x 768
Chipset family: DLP5500, DLPA200, DLPC200, DLPC900
Micromirror pitch (mm): 0.0108
Component type: DMD
Micromirror array orientation: Orthogonal
Pattern rate, binary (max) (Hz): 5000
Array diagonal (in): 0.55
Display resolution (max): XGA (1024x768)
Rating: Catalog
Pattern rate, 8-bit (max) (Hz): 500
Micromirror driver support: External
Thermal dissipation (°C/W): 0.6
Input frame rate (Hz): 60
Operating temperature range (°C): -20 to 90
Illumination wavelength (min) (nm): 420
Illumination wavelength (max) (nm): 700
Micromirror array size: 1024 x 768
Chipset family: DLP5500, DLPA200, DLPC200, DLPC900
更多
Micromirror pitch (mm): 0.0108
Component type: DMD
Micromirror array orientation: Orthogonal
Pattern rate, binary (max) (Hz): 5000
Array diagonal (in): 0.55
Display resolution (max): XGA (1024x768)
Rating: Catalog
Pattern rate, 8-bit (max) (Hz): 500
Micromirror driver support: External
Thermal dissipation (°C/W): 0.6
Input frame rate (Hz): 60
Operating temperature range (°C): -20 to 90
