天天芯片 - 物料搜索

LM50

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 具有 10mV/°C 增益的 ±2°C 模拟输出温度传感器

Local sensor accuracy (max): 2, 3 Operating temperature range (°C): -40 to 150 Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 10 Supply current (max) (µA): 130 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Features: UL recognized Local sensor accuracy (max): 2, 3 Operating temperature range (°C): -40 to 150 Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 10 Supply current (max) (µA): 130 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Features: UL recognized

LM45

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 具有 10mV/°C 增益的 ±3°C 模拟输出温度传感器

Local sensor accuracy (max): 2, 3 Operating temperature range (°C): -20 to 100 Supply voltage (min) (V): 4 Supply voltage (max) (V): 10 Supply current (max) (µA): 120 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Features: UL recognized Local sensor accuracy (max): 2, 3 Operating temperature range (°C): -20 to 100 Supply voltage (min) (V): 4 Supply voltage (max) (V): 10 Supply current (max) (µA): 120 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Features: UL recognized

LM34

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 具有华氏刻度校准功能的 ±1°F 5V 至 30V 模拟输出温度传感器

Local sensor accuracy (max): 0.556, 1.111 Operating temperature range (°C): -45 to 148 Supply voltage (min) (V): 5 Supply voltage (max) (V): 30 Supply current (max) (µA): 160 Interface type: Analog output Sensor gain (mV/°C): 18 Rating: Catalog Local sensor accuracy (max): 0.556, 1.111 Operating temperature range (°C): -45 to 148 Supply voltage (min) (V): 5 Supply voltage (max) (V): 30 Supply current (max) (µA): 160 Interface type: Analog output Sensor gain (mV/°C): 18 Rating: Catalog

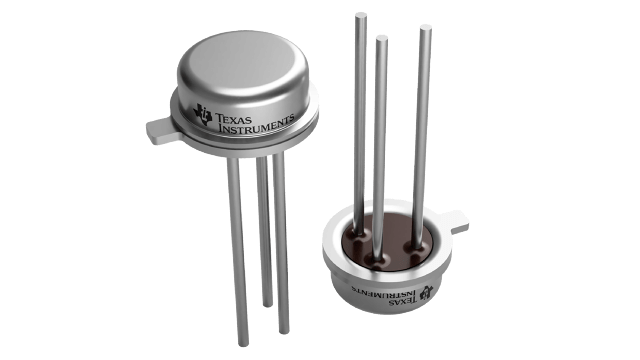

LM135

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用气密性 TO 封装的模拟输出温度传感器

Local sensor accuracy (max): 3 Operating temperature range (°C): -55 to 150 Supply voltage (min) (V): 5 Supply voltage (max) (V): 3.01 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Local sensor accuracy (max): 3 Operating temperature range (°C): -55 to 150 Supply voltage (min) (V): 5 Supply voltage (max) (V): 3.01 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog

LM135A

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用气密性 TO-92 封装的 ±1°C 模拟输出温度传感器

Local sensor accuracy (max): 1 Operating temperature range (°C): -55 to 150 Supply voltage (min) (V): 5 Supply voltage (max) (V): 2.99 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Local sensor accuracy (max): 1 Operating temperature range (°C): -55 to 150 Supply voltage (min) (V): 5 Supply voltage (max) (V): 2.99 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog

LM235

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用气密性 TO 封装、具有 10mV/°C 增益的 ±1.5°C 模拟输出温度传感器

Local sensor accuracy (max): 3 Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 5 Supply voltage (max) (V): 3.01 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Local sensor accuracy (max): 3 Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 5 Supply voltage (max) (V): 3.01 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog

LM235A

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用气密性 TO 封装、具有 10mV/°C 增益的 ±1.5°C 模拟输出温度传感器

Local sensor accuracy (max): 1 Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 5 Supply voltage (max) (V): 2.99 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Local sensor accuracy (max): 1 Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 5 Supply voltage (max) (V): 2.99 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog

LM335

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用气密性封装的 10mV/K、2C 模拟温度传感器

Local sensor accuracy (max): 3, 6 Operating temperature range (°C): -40 to 100 Supply voltage (min) (V): 5 Supply voltage (max) (V): 3.04 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Local sensor accuracy (max): 3, 6 Operating temperature range (°C): -40 to 100 Supply voltage (min) (V): 5 Supply voltage (max) (V): 3.04 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog

LM335A

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用气密性封装、具有 10mV/K 增益的军用 ±1°C 模拟输出温度传感器

Local sensor accuracy (max): 3 Operating temperature range (°C): -40 to 100 Supply voltage (min) (V): 5 Supply voltage (max) (V): 3 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Local sensor accuracy (max): 3 Operating temperature range (°C): -40 to 100 Supply voltage (min) (V): 5 Supply voltage (max) (V): 3 Supply current (max) (µA): 400 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog

LM35

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 10mV/C、1C 高压模拟温度传感器

Local sensor accuracy (max): 0.5, 1 Operating temperature range (°C): -55 to 150 Supply voltage (min) (V): 4 Supply voltage (max) (V): 30 Supply current (max) (µA): 114 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Features: UL recognized Local sensor accuracy (max): 0.5, 1 Operating temperature range (°C): -55 to 150 Supply voltage (min) (V): 4 Supply voltage (max) (V): 30 Supply current (max) (µA): 114 Interface type: Analog output Sensor gain (mV/°C): 10 Rating: Catalog Features: UL recognized
