INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

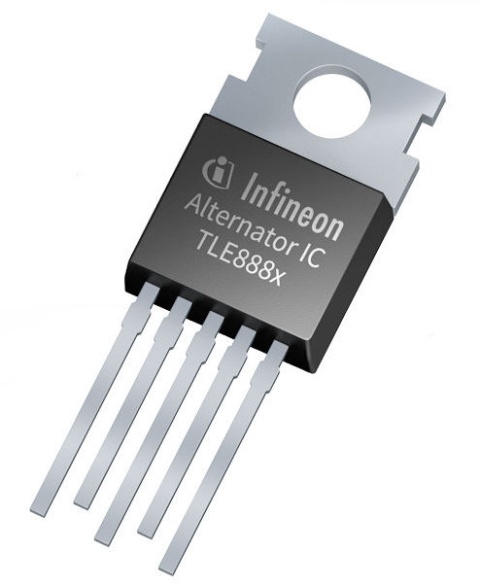

TLE8881TN

分类:
数据:

简介: TLE8881TN regulates 12V automotive multi-phase alternators and is compliant to the HKMC LIN Alternator Regulator specification

Interfaces: LIN 1.3

Voltage Class: 12.0V

Supply Voltage max: 18.0V

Voltage Measurement Range max: 18.0V

Adjustable Regulation Range max: 16.0V

Speed Measurement: No

库存数量:

库存数量:

询价

TLE8880TN2

分类:
数据:

简介: TLE8880TN2 regulates 12V automotive multi-phase alternators with a rotating field winding

Transmission Rate max: 19.2kBit/s

Voltage Class: 12.0V

Supply Voltage max: 18.0V

T[j] max: 175.0°C

ESD Protection: 8.0kV

R[DS (on)]: 60.0mΩ

库存数量:

库存数量:

询价

TLE8082ES

分类:
数据:

简介: TLE8082ES supports OBDII-compliant EURO5/BHARATVI 2-/3-wheeler combustion engine systems with the focus on Electronic Fuel Injection(EFI) technologies

Output Current Type( Inductive Load Channel): 2 x 2,6A (max), 1x 1,3 A (max)

Output Current Type(Resistive Load Channel): 1 x4,5 A (max)

SPI I/F Diagnosis / Control: Yes

VRS I/F: No

5V Supply: 150 - 200 mA

Supply Voltage max: 40.0V

库存数量:

库存数量:

询价

TLE8080EM

分类:
数据:

简介: TLE8088EM is an engine management IC based on Infineon Smart Power Technology (SPT)

库存数量:

库存数量:

询价

TLE8080-3EM

分类:
数据:

简介: The TLE8080EM is an engine management IC based on Infineon Smart Power Technology (SPT)

库存数量:

库存数量:

询价

TLE8886TN

分类:
数据:

简介: TLE8886TN regulates 12V automotive multi-phase alternators with a rotating field winding

Interfaces: LIN 2.1

Voltage Class: 12.0V

Supply Voltage max: 18.0V

Voltage Measurement Range max: 24.0V

Adjustable Regulation Range max: 16.0V

Speed Measurement: Yes

库存数量:

库存数量:

询价

TLE8088EM

分类:
数据:

简介: TLE8088EM is an engine management IC based on Infineon Smart Power Technology (SPT)

Supply Voltage max: 18.0V

Output Current Type( Inductive Load Channel): 1 x 1,3 (2,6) A Nominal (max)

Output Current Type(Resistive Load Channel): 1 x 0,3 (3) A Nominal (max)

Output Current Type(Relay Channels): No

VRS I/F: No

K-Line(acc. ISO 9141): Yes

库存数量:

库存数量:

询价

TLE92466ED

分类:
数据:

简介: TLE92466ED is designed for control of 6 linear solenoids in automatic transmission, electronic stability control, and active suspension applications.

Channels: 6.0

Comments: 6 Channel Integrated Constant Current Control IC

Operating Voltage max: 40.0V

Output Current: 1.5A

Quiescent Current: 0,01mA

R[DS (on) ] (multiple): 115 mOhm

库存数量:

库存数量:

询价

TLE9241QU

分类:
数据:

简介: The TLE9241QU is an integrated circuit (IC) for use in automatic transmission control modules

Channels: 2.0

Quiescent Current: 0,015 mA

Operating Voltage max: 40.0V

SPI: 16.0Bit

Currently planned availability until at least: 2037

|Product Collections|: /product-longevity/

库存数量:

库存数量:

询价

TLE8242-2L

分类:
数据:

简介: The TLE8242-2L IC is an eight channel low-side constant current control pre-driver IC

Channels: 8.0

Operating Voltage max: 42.0V

SPI: 32.0Bit

Quiescent Current: 0,005 mA

Comments: 8 Channel Fixed Frequency Constant Current Control IC

Currently planned availability until at least: 2038

库存数量:

库存数量:

询价
