INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

IPD18DP10LM

分类:
数据:

简介: P-channel MOSFETs in logic level, reducing design complexity in medium and low power applications

I[D ](@25°C) max: -13.9A I[D ] max: -13.9A I[Dpuls] max: -56.0A Mounting: SMT Operating Temperature max: 175.0°C P[tot] max: 83.0W Package: DPAK (TO-252) Pin Count: 3.0Pins Polarity: P Q[G](typ @4.5V): -21.0nC Q[G](typ @10V): -42.0nC Q[G]: -42.0nC R[DS (on)](@10V) max: 178.0mΩ R[DS (on)](@4.5V) max: 200.0mΩ R[DS (on)] max: 178.0mΩ V[DS] max: -100.0V V[GS(th)] max: -2.0V Budgetary Price €/1k: 0.45

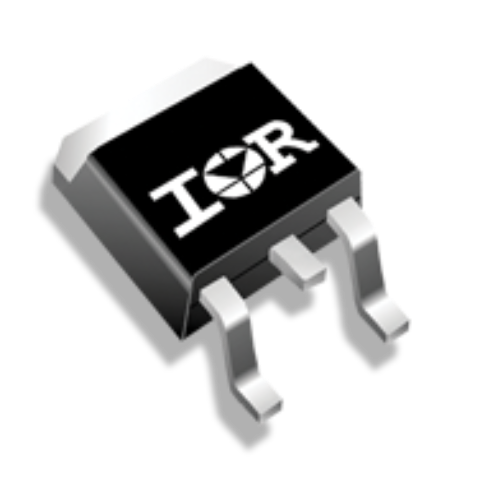

IRLR9343

分类:
数据:

简介: -55V Single P-Channel IR MOSFET in a D-Pak package

Moisture Sensitivity Level: 1 Package: DPAK (TO-252) Polarity: P Q[gd]: 8.5nC T[j] max: 175.0°C V[GS] max: 20.0V Mounting: SMD P[tot] max: 79.0W R[thJC] max: 1.9K/W V[DS] max: -55.0V R[DS (on)](@10V) max: 105.0mΩ R[DS (on)](@4.5V) max: 170.0mΩ V[GS(th)] min: -1.0V Q[G](typ @10V): 31.0nC I[D ](@25°C) max: -20.0A Budgetary Price €/1k: 0.3

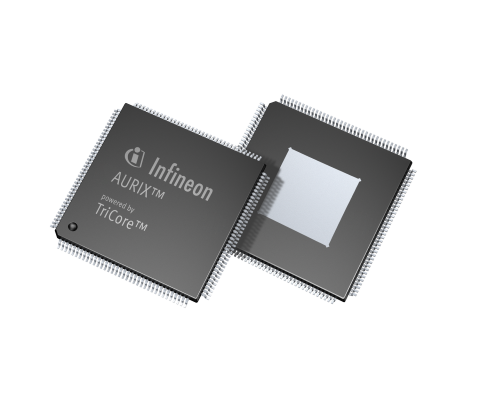

SAK-TC222L-16F133FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications s with a frequency of 133 MHz, up to 1MB of Flash and a TQFP-80 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 14 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V Floating Point Unit: yes DSP Functionality: yes Hardware Accelerator: no # of cores / lockstep cores: 1/1 更多

eMMC: no SPI: 4.0 LIN: 2.0 Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 6.48 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC222L-16F133NAC

分类:
数据:

简介: SAK-TC222L-16F133N AC is a powerful AURIX™ MCU for automotive & industrial applications with a frequency of 133 MHz and up to 1 MB of Flash

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 14 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes I/O Operation Voltages: 3.3V DSP Functionality: yes # of cores / lockstep cores: 1/1 Hardware Accelerator: no 更多

LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 7.62 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC222S-12F133FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 1MB of Flash and a TQFP-80 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 14 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes Floating Point Unit: yes # of cores / lockstep cores: 1/0 Hardware Accelerator: no 更多

LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant ASIL/SIL support: ASIL-B/SIL-2

SAK-TC222S-12F133NAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 1MB of Flash and a TQFP-80 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 14 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes I/O Operation Voltages: 3.3V DSP Functionality: yes Hardware Accelerator: no # of cores / lockstep cores: 1/0 更多

eMMC: no SPI: 4.0 LIN: 2.0 Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant ASIL/SIL support: ASIL-B/SIL-2

SAK-TC222S-16F133FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 1MB of Flash and a TQFP-80 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 14 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/22 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes I/O Operation Voltages: 3.3V DSP Functionality: yes # of cores / lockstep cores: 1/0 Hardware Accelerator: no 更多

LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 5.96 ASIL/SIL support: ASIL-B/SIL-2

SAK-TC222S-16F133NAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 1MB of Flash and a TQFP-80 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 24 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes I/O Operation Voltages: 3.3V DSP Functionality: yes # of cores / lockstep cores: 1/0 Hardware Accelerator: no 更多

eMMC: no SPI: 4.0 LIN: 2.0 Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 7.09 ASIL/SIL support: ASIL-B/SIL-2

SAK-TC223L-12F133FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 1MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 24 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes I/O Operation Voltages: 3.3V DSP Functionality: yes Hardware Accelerator: no # of cores / lockstep cores: 1/1 更多

LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant ASIL/SIL support: ASIL-D/SIL-3

SAK-TC223L-16F133FAC

分类:
数据:

简介: SAK-TC223L-16F133F is a powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz and up to 1 MB of Flash

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 24 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V Floating Point Unit: yes DSP Functionality: yes # of cores / lockstep cores: 1/1 Hardware Accelerator: no 更多

eMMC: no SPI: 4.0 LIN: 2.0 Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 6.83 ASIL/SIL support: ASIL-D/SIL-3
