INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

SAK-TC223L-16F133NAC

分类:
数据:

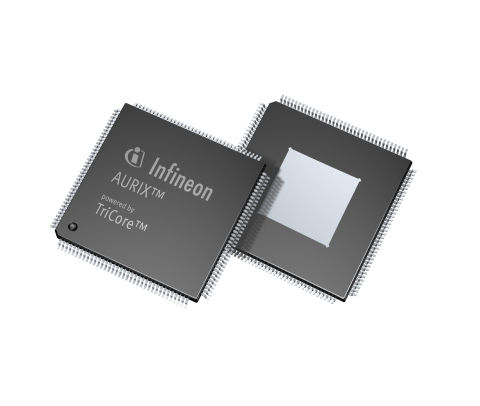

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 1MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 24 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V Floating Point Unit: yes DSP Functionality: yes Hardware Accelerator: no # of cores / lockstep cores: 1/1
LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 7.94 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC223S-16F133FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 1MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 24 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes I/O Operation Voltages: 3.3V DSP Functionality: yes # of cores / lockstep cores: 1/0 Hardware Accelerator: no
LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 6.31 ASIL/SIL support: ASIL-B/SIL-2

SAK-TC224L-16F133NAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 1MB of Flash and a TQFP-144 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 24 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V Floating Point Unit: yes DSP Functionality: yes Hardware Accelerator: no # of cores / lockstep cores: 1/1
eMMC: no SPI: 4.0 LIN: 2.0 Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 8.44 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC233L-32F200FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200 MHz, up to 2MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 192.0kByte CAN Nodes: 6 A/D Input Lines: 24 A/D Input Lines(incl. FADC): 24 Program Memory: 2.0MByte Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes DSP Functionality: yes Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 I/O Operation Voltages: 3.3V DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no # of cores / lockstep cores: 1/1
Hardware Accelerator: no LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 7.58 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC233L-32F200NAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200 MHz, up to 2MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 192.0kByte CAN Nodes: 6 A/D Input Lines: 24 A/D Input Lines(incl. FADC): 24 Program Memory: 2.0MByte Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes DSP Functionality: yes Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 I/O Operation Voltages: 3.3V DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no # of cores / lockstep cores: 1/1
Hardware Accelerator: no eMMC: no LIN: 2.0 SPI: 4.0 Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 8.42 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC233LC-24F133FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 1.5MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 128.0kByte CAN Nodes: 6 A/D Input Lines: 24 A/D Input Lines(incl. FADC): 24 Program Memory: 1.5MByte Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes DSP Functionality: yes Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 I/O Operation Voltages: 3.3V DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Hardware Accelerator: no
# of cores / lockstep cores: 1/1 SPI: 4.0 LIN: 2.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant ASIL/SIL support: ASIL-D/SIL-3

SAK-TC233LP-16F200FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200 MHz, up to 1MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 192.0kByte CAN Nodes: 6 A/D Input Lines: 24 A/D Input Lines(incl. FADC): 24 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V Touch/LED Matrix Control: no On-chip Voltage Regulator: yes Real Time Clock: yes Floating Point Unit: yes Watchdog Timer: yes Oscillator Watchdog: yes # of cores / lockstep cores: 1/1
Hardware Accelerator: no eMMC: no SPI: 4.0 LIN: 2.0 Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant ASIL/SIL support: ASIL-D/SIL-3

SAK-TC233LP-16F200NAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency o 200 MHz, up to 1MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 192.0kByte CAN Nodes: 6 A/D Input Lines: 24 A/D Input Lines(incl. FADC): 24 Program Memory: 1.0MByte Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes DSP Functionality: yes Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 I/O Operation Voltages: 3.3V DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no # of cores / lockstep cores: 1/1
Hardware Accelerator: no LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant ASIL/SIL support: ASIL-D/SIL-3

SAK-TC233LP-32F200FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200 MHz, up to 2MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 192.0kByte CAN Nodes: 6 A/D Input Lines(incl. FADC): 24 A/D Input Lines: 24 Program Memory: 2.0MByte Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes DSP Functionality: yes Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no I/O Operation Voltages: 3.3V Hardware Accelerator: no
# of cores / lockstep cores: 1/1 eMMC: no SPI: 4.0 LIN: 2.0 Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 9.33 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC233LP-32F200NAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200 MHz, up to 2MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 192.0kByte CAN Nodes: 6 A/D Input Lines: 24 A/D Input Lines(incl. FADC): 24 Program Memory: 2.0MByte Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes DSP Functionality: yes Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 I/O Operation Voltages: 3.3V DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no # of cores / lockstep cores: 1/1
Hardware Accelerator: no LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 10.1 ASIL/SIL support: ASIL-D/SIL-3
