INFINEON
Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

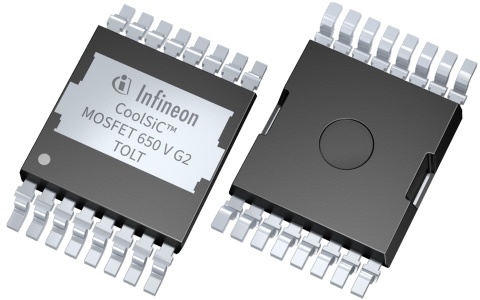

IMLT65R033M2H
分类:数据:
简介: The CoolSiC™ MOSFET 650 V in TOLT combines the best performance of CoolSiC™ G2 with top-side cooling to achieve the highest system power density.
Package: TOLT
I[D ](@25°C) max: 68.0A
Operating Temperature max: 175.0°C
Polarity: N
Qualification: Industrial
R[DS (on)](@ Tj = 25°C): 33.0mΩ
| 库存数量: |

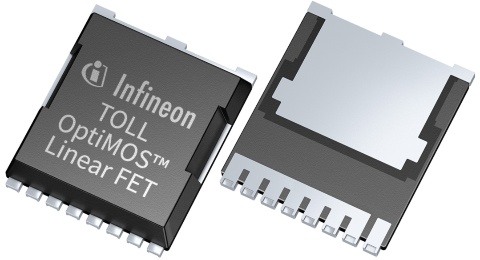

IPT017N10NM5LF2
分类:数据:
简介: OptiMOS™ 5 Single N-channel Linear FET 2 100 V, 1.7 mΩ, 321 A in TOLL package
I[D ](@25°C) max: 321.0A
Operating Temperature max: 175.0°C
Package: TOLL (HSOF-8)
Polarity: N
Q[G](typ @10V): 165.0nC
R[DS (on)](@10V) max: 1.7mΩ
| 库存数量: |

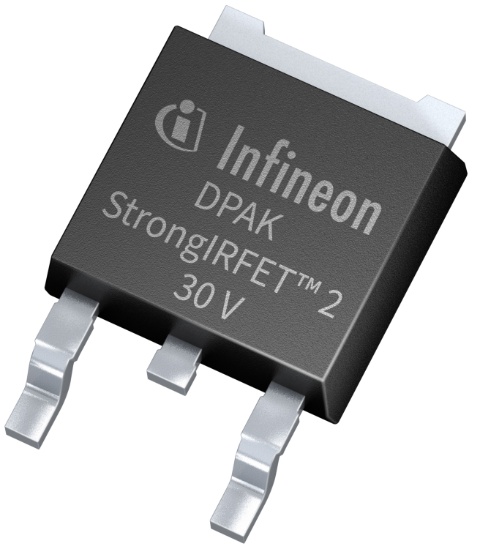

I[D ](@25°C) max: 137.0A
Operating Temperature max: 175.0°C
Package: DPAK (TO-252)
Polarity: N
Q[G](typ @4.5V): 24.0nC
Q[G](typ @10V): 50.0nC
| 库存数量: |
I[D ](@25°C) max: 143.0A
I[Dpuls] max: 572.0A
Operating Temperature max: 175.0°C
Package: DPAK (TO-252)
Polarity: N
Q[G](typ @4.5V): 33.0nC
| 库存数量: |
I[D ](@25°C) max: 99.0A
Operating Temperature max: 175.0°C
Package: DPAK (TO-252)
Polarity: N
Q[G](typ @4.5V): 16.0nC
Q[G](typ @10V): 33.0nC
| 库存数量: |
I[D ](@25°C) max: 73.0A
Operating Temperature max: 175.0°C
Package: DPAK (TO-252)
Polarity: N
Q[G](typ @4.5V): 13.0nC
Q[G](typ @10V): 27.0nC
| 库存数量: |
I[D ](@25°C) max: 71.0A
Operating Temperature max: 175.0°C
Package: DPAK (TO-252)
Polarity: N
Q[G](typ @4.5V): 10.0nC
Q[G](typ @10V): 21.0nC
| 库存数量: |

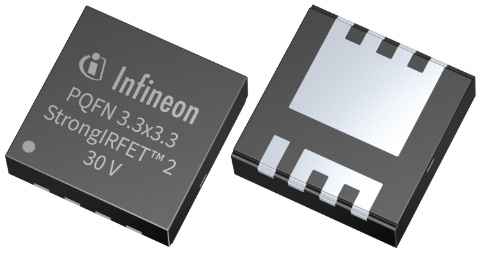

I[D ](@25°C) max: 128.0A
Operating Temperature max: 175.0°C
Package: PQFN 3.3 x 3.3
Polarity: N
Q[G](typ @4.5V): 13.0nC
Q[G](typ @10V): 27.0nC
| 库存数量: |
I[D ](@25°C) max: 72.0A
Operating Temperature max: 175.0°C
Package: PQFN 3.3 x 3.3
Polarity: N
Q[G](typ @4.5V): 7.4nC
Q[G](typ @10V): 15.0nC
| 库存数量: |
I[D ](@25°C) max: 109.0A
Operating Temperature max: 175.0°C
Package: PQFN 3.3 x 3.3
Polarity: N
Q[G](typ @4.5V): 10.0nC
Q[G](typ @10V): 21.0nC
| 库存数量: |
