INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

1EDN8511B

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: Rugged, cool and fast, 1-channel low-side 4/8A gate driver ICs

Input Vcc: NoneV Channels: 1.0 Configuration: Low-side Voltage Class: 20.0V Qualification: Industrial Isolation Type: Non-isolated Output Current(Sink): 8.0A Output Current(Source): 4.0A Turn Off Propagation Delay: 19.0ns Turn On Propagation Delay: 19.0ns VBS UVLO(Off): 7.0V VBS UVLO(On): 8.0V Budgetary Price €/1k: 0.3

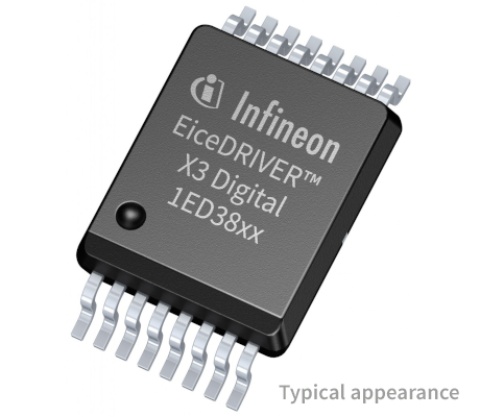

1ED3830MC12M

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 2300 V single-channel highly flexible isolated gate driver with I2C configurability for DESAT, Soft-Off, UVLO, Miller clamp, TLTO and Fault

Configuration: High-side Channels: 1.0 Input Vcc: NoneV Isolation Type: Galvanic isolation - Reinforced Output Current(Sink): 2.5A Output Current(Source): 3.8A Package: PG-DSO-16-33 Qualification: Industrial Turn Off Propagation Delay: 236.0ns Turn On Propagation Delay: 244.0ns VBS UVLO(Off): 11.0V VBS UVLO(On): 12.0V VCC UVLO(Off): 2.8V VCC UVLO(On): 2.95V Voltage Class: 2300.0V

2ED1321S12M

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 1200 V high-side/low-side gate driver IC with integrated bootstrap diode and OCP

Channels: 2.0 Voltage Class: 1200.0V Isolation Type: SOI (Silicon On Insulator) Output Current(Source): 2.3A Output Current(Sink): 4.6A Turn Off Propagation Delay: 350.0ns VBS UVLO(On): 12.2V VBS UVLO(Off): 11.3V VCC UVLO(On): 12.2V VCC UVLO(Off): 11.3V Configuration: High-side and low-side Qualification: Industrial Input Vcc: NoneV Turn On Propagation Delay: 350.0ns Isolation Type: Functional levelshift

2ED1324S12P

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 1200 V half-bridge gate driver IC with AMC (Active Miller Clamp), SCC (Short Circuit Clamp)

Channels: 2.0 Input Vcc: NoneV Output Current(Source): 2.3A Output Current(Sink): 2.3A Turn Off Propagation Delay: 500.0ns Turn On Propagation Delay: 500.0ns VBS UVLO(On): 12.2V VBS UVLO(Off): 11.3V VCC UVLO(On): 12.2V VCC UVLO(Off): 11.3V Voltage Class: 1200.0V Configuration: Half Bridge Qualification: Industrial Isolation Type: Functional levelshift Isolation Type: SOI (Silicon On Insulator)

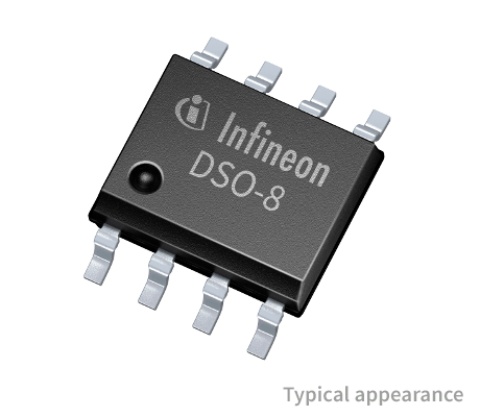

2ED2101S06F

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 650 V high-side and low-side gate driver with integrated bootstrap diode

Voltage Class: 650.0V Output Current(Source): 0.29A Output Current(Sink): 0.7A Channels: 2.0 Configuration: High-side and low-side Qualification: Industrial Isolation Type: Functional levelshift Package: PG-DSO-8 VCC UVLO(Off): 8.0V VCC UVLO(On): 8.9V VBS UVLO(Off): 8.0V VBS UVLO(On): 8.9V Turn Off Propagation Delay: 90.0ns Turn On Propagation Delay: 90.0ns Input Vcc: NoneV

2ED2104S06F

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 650 V half-bridge gate driver with integrated bootstrap diode

Voltage Class: 650.0V Output Current(Source): 0.29A Output Current(Sink): 0.7A Channels: 2.0 Configuration: Half Bridge Qualification: Industrial Isolation Type: Functional levelshift Package: PG-DSO-8 VCC UVLO(Off): 8.0V VCC UVLO(On): 8.9V VBS UVLO(Off): 8.0V VBS UVLO(On): 8.9V Turn Off Propagation Delay: 90.0ns Turn On Propagation Delay: 90.0ns Input Vcc: NoneV

2ED2106S06F

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 650 V, 0.7 A high-side and low-side gate driver with integrated bootstrap diode in DSO-8 package

Configuration: High-side and low-side Channels: 2.0 Input Vcc: NoneV Isolation Type: Functional levelshift Qualification: Industrial Voltage Class: 650.0V Output Current(Source): 0.29A Output Current(Sink): 0.7A Turn Off Propagation Delay: 200.0ns Turn On Propagation Delay: 200.0ns VCC UVLO(Off): 8.2V VCC UVLO(On): 9.1V VBS UVLO(Off): 7.2V VBS UVLO(On): 8.2V

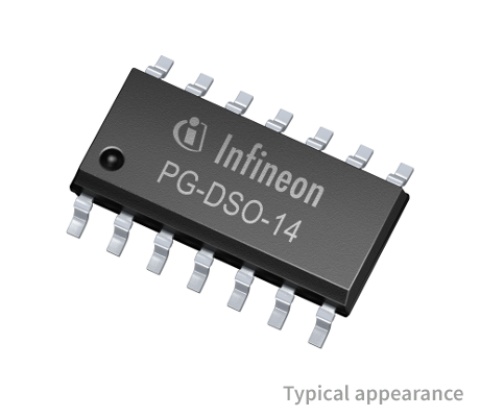

2ED21084S06J

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 650 V, 0.7 A half-bridge gate driver with integrated bootstrap diode in DSO-14 package

Configuration: Half Bridge Channels: 2.0 Input Vcc: NoneV Isolation Type: Functional levelshift Qualification: Industrial Voltage Class: 650.0V Output Current(Source): 0.29A Output Current(Sink): 0.7A Turn Off Propagation Delay: 200.0ns Turn On Propagation Delay: 200.0ns VCC UVLO(Off): 8.2V VCC UVLO(On): 9.1V VBS UVLO(Off): 7.2V VBS UVLO(On): 8.2V

2ED1322S12M

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 1200 V high current half-bridge gate driver IC with integrated bootstrap diode and OCP

Channels: 2.0 Input Vcc: NoneV Output Current(Source): 2.3A Output Current(Sink): 4.6A Turn Off Propagation Delay: 500.0ns Turn On Propagation Delay: 500.0ns VBS UVLO(On): 12.2V VBS UVLO(Off): 11.3V VCC UVLO(On): 12.2V VCC UVLO(Off): 11.3V Voltage Class: 1200.0V Configuration: Half Bridge Isolation Type: SOI (Silicon On Insulator) Qualification: Industrial Isolation Type: Functional levelshift

2ED21064S06J

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 650 V, 0.7 A high-side and low-side gate driver with integrated bootstrap diode in DSO-14 package
