Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。
Continuous Time Blocks: 1.0
DMA Channels: 8
JTAG and Si ID: 0x1181
Lead Ball Finish: Pure Sn
On-chip Clock Generation(PLL): N
Peak Reflow Temp: 260.0°C
Publish in NPSG: Y
Publish in PSG: Y
Timer/Counter/PWM Blocks: 8.0
USB Type: None
CPU: ARM Cortex-M0
Serial Communication Blocks: 4.0
Required Kit: None
SRAM: 4.0kByte
Frequency max: 24.0MHz
Flash: 32.0kByte
LCD Direct Drive: Yes
CAN: 0
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 806 ksps)
GPIOs: 51.0
更多
LP Comparators: 2.0
TCPWM Blocks: 8.0
Operating Voltage max: 5.5V
SCB Blocks: 4.0
WCO: Yes
Operational Amplifier: 2
ECO: No
CAPSENSE™: Yes
USB Full Speed: 0
Comparators: 2.0
Classification: ISO 26262-ready
I/O Pins: 51.0
Family: PSOC™ 4100M
Operating Temperature max: 85.0°C
Continuous Time Blocks: 1.0
CPU: ARM Cortex-M0
JTAG and Si ID: 0x11C2
Lead Ball Finish: Pure Sn
On-chip Clock Generation(PLL): N
Peak Reflow Temp: 260.0°C
Publish in NPSG: Y
Publish in PSG: Y
Required Kit: None
Timer/Counter/PWM Blocks: 8.0
USB Type: None
DMA Channels: 8
Serial Communication Blocks: 4.0
SRAM: 8.0kByte
Frequency max: 24.0MHz
Flash: 64.0kByte
LCD Direct Drive: Yes
CAN: 0
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 806 ksps)
GPIOs: 38.0
更多
LP Comparators: 2.0
Operating Temperature max: 105.0°C
TCPWM Blocks: 8.0
Operating Voltage max: 5.5V
SCB Blocks: 4.0
WCO: Yes
Operational Amplifier: 2
CAPSENSE™: Yes
ECO: No
USB Full Speed: 0
Comparators: 2.0
Classification: ISO 26262-ready
I/O Pins: 38.0
Family: PSOC™ 4100M
Continuous Time Blocks: 2.0
CPU: ARM Cortex-M0
JTAG and Si ID: 0x11A5
Lead Ball Finish: Pure Sn
On-chip Clock Generation(PLL): N
Peak Reflow Temp: 260.0°C
Publish in NPSG: Y
Publish in PSG: Y
Timer/Counter/PWM Blocks: 8.0
USB Type: None
Serial Communication Blocks: 4.0
DMA Channels: 8
Required Kit: None
SRAM: 16.0kByte
Universal Digital Blocks: 4.0
Frequency max: 48.0MHz
Flash: 128.0kByte
LCD Direct Drive: Yes
CAN: 2
GPIOs: 38.0
更多
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 1 msps)
LP Comparators: 2.0
Operating Voltage max: 5.5V
TCPWM Blocks: 8.0
SCB Blocks: 4.0
WCO: Yes
Operational Amplifier: 4
ECO: No
CAPSENSE™: Yes
USB Full Speed: 0
Comparators: 2.0
Classification: ISO 26262-ready
I/O Pins: 38.0
Family: PSOC™ 4200M
Operating Temperature max: 85.0°C
Continuous Time Blocks: 1.0
DMA Channels: 8
JTAG and Si ID: 0x11E3
Lead Ball Finish: Pure Sn
Peak Reflow Temp: 260.0°C
Publish in NPSG: Y
Publish in PSG: Y
Required Kit: None
Timer/Counter/PWM Blocks: 8.0
USB Type: None
CPU: ARM Cortex-M0
On-chip Clock Generation(PLL): N
Serial Communication Blocks: 4.0
SRAM: 8.0kByte
Universal Digital Blocks: 4.0
Frequency max: 48.0MHz
Flash: 64.0kByte
LCD Direct Drive: Yes
CAN: 0
GPIOs: 51.0
更多
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 1 msps)
Operating Temperature max: 105.0°C
LP Comparators: 2.0
Operating Voltage max: 5.5V
TCPWM Blocks: 8.0
SCB Blocks: 4.0
WCO: Yes
Operational Amplifier: 2
ECO: No
CAPSENSE™: Yes
USB Full Speed: 0
Comparators: 2.0
Classification: ISO 26262-ready
I/O Pins: 51.0
Family: PSOC™ 4200M
Continuous Time Blocks: 1.0
CPU: ARM Cortex-M0
DMA Channels: 8
Lead Ball Finish: Pure Sn
On-chip Clock Generation(PLL): N
Publish in NPSG: Y
Publish in PSG: Y
Serial Communication Blocks: 4.0
Timer/Counter/PWM Blocks: 8.0
USB Type: None
Peak Reflow Temp: 260.0°C
JTAG and Si ID: 0x1181
Required Kit: None
SRAM: 4.0kByte
Frequency max: 24.0MHz
Flash: 32.0kByte
LCD Direct Drive: Yes
CAN: 0
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 806 ksps)
GPIOs: 51.0
更多
LP Comparators: 2.0
TCPWM Blocks: 8.0
Operating Voltage max: 5.5V
SCB Blocks: 4.0
WCO: Yes
Operational Amplifier: 2
CAPSENSE™: Yes
ECO: No
USB Full Speed: 0
Comparators: 2.0
Classification: ISO 26262-ready
I/O Pins: 51.0
Family: PSOC™ Automotive 4100M
Operating Temperature max: 85.0°C
Continuous Time Blocks: 1.0
CPU: ARM Cortex-M0
Lead Ball Finish: Pure Sn
On-chip Clock Generation(PLL): N
Peak Reflow Temp: 260.0°C
Publish in NPSG: Y
Publish in PSG: Y
Required Kit: None
Timer/Counter/PWM Blocks: 8.0
USB Type: None
DMA Channels: 8
Serial Communication Blocks: 4.0
JTAG and Si ID: 0x11C3
SRAM: 8.0kByte
Frequency max: 24.0MHz
Flash: 64.0kByte
LCD Direct Drive: Yes
CAN: 0
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 806 ksps)
GPIOs: 51.0
更多
LP Comparators: 2.0
Operating Temperature max: 105.0°C
TCPWM Blocks: 8.0
Operating Voltage max: 5.5V
SCB Blocks: 4.0
WCO: Yes
Operational Amplifier: 2
CAPSENSE™: Yes
ECO: No
USB Full Speed: 0
Comparators: 2.0
Classification: ISO 26262-ready
I/O Pins: 51.0
Family: PSOC™ Automotive 4100M
Continuous Time Blocks: 2.0
CPU: ARM Cortex-M0
DMA Channels: 8
JTAG and Si ID: 0x11A6
Lead Ball Finish: Pure Sn
Peak Reflow Temp: 260.0°C
Publish in NPSG: Y
Required Kit: None
Serial Communication Blocks: 4.0
Timer/Counter/PWM Blocks: 8.0
USB Type: None
Publish in PSG: Y
On-chip Clock Generation(PLL): N
SRAM: 16.0kByte
Universal Digital Blocks: 4.0
Frequency max: 48.0MHz
Flash: 128.0kByte
LCD Direct Drive: Yes
CAN: 2
GPIOs: 51.0
更多
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 1 msps)
LP Comparators: 2.0
Operating Voltage max: 5.5V
TCPWM Blocks: 8.0
SCB Blocks: 4.0
WCO: Yes
Operational Amplifier: 4
ECO: No
CAPSENSE™: Yes
USB Full Speed: 0
Comparators: 2.0
Classification: ISO 26262-ready
I/O Pins: 51.0
Family: PSOC™ 4200M
Operating Temperature max: 85.0°C
CPU: ARM Cortex-M0
DMA Channels: 8
JTAG and Si ID: 0x11A8
Lead Ball Finish: NiPdAuAg
On-chip Clock Generation(PLL): N
Peak Reflow Temp: 260.0°C
Publish in PSG: N
Required Kit: None
Serial Communication Blocks: 4.0
Timer/Counter/PWM Blocks: 8.0
USB Type: None
Publish in NPSG: N
Continuous Time Blocks: 2.0
Universal Digital Blocks: 4.0
Operational Amplifier: 4
Frequency max: 48.0MHz
Flash: 128.0kByte
SRAM: 16.0kByte
LCD Direct Drive: Yes
GPIOs: 46.0
更多
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 1 msps)
LP Comparators: 2.0
Operating Voltage max: 5.5V
TCPWM Blocks: 8.0
SCB Blocks: 4.0
WCO: Yes
CAPSENSE™: Yes
ECO: No
USB Full Speed: 0
CAN: 2
Comparators: 2.0
Classification: ISO 26262-ready
I/O Pins: 48.0
Family: PSOC™ Automotive 4200M
Operating Temperature max: 85.0°C
LIN: 1.0
Packaging: Tray
Voltage measurement accuracy: 0.25%
Classification: ISO 26262-compliant
High Voltage measurement accuracy (with HV divider): 0.25%
Code Flash with ECC: 128.0kByte
Data Flash with ECC: 8.0kByte
SRAM with ECC: 8.0kByte
16-20 bit Precision ΔΣ ADC: 2.0
Digital Channels: 4.0
High Voltage measurement Ios (with HV divider): 2.0
TCPWM Blocks: 4.0
SCB Blocks: 1.0
LIN Controller: Yes
High Voltage Subsystem (LDO, LIN PHY): Yes
CRYPTO: No
CAN-FD: No
iso-UART: No
GPIOs: 9.0
Temperature: - 40°C - + 125°C
更多
Target Application: IBS
AECQ available: Yes

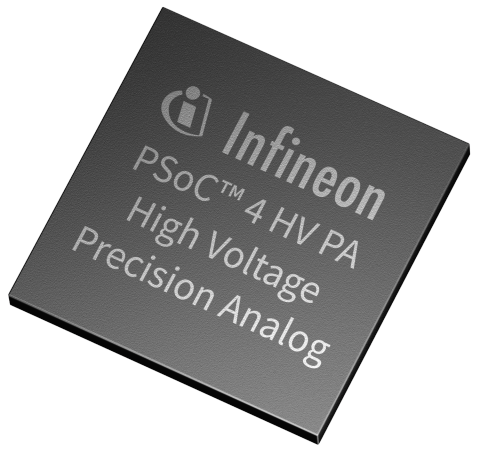

Family: PSOC™ 4 HVPA-144K
LIN: 1.0
Packaging: Tray
Voltage measurement accuracy: 0.15%
Classification: ISO 26262-compliant
AECQ available: Yes
High Voltage measurement accuracy (with HV divider): 0.15%
Code Flash with ECC: 128.0kByte
Data Flash with ECC: 8.0kByte
SRAM with ECC: 8.0kByte
16-20 bit Precision ΔΣ ADC: 2.0
Digital Channels: 4.0
High Voltage measurement Ios (with HV divider): 2.0
TCPWM Blocks: 4.0
SCB Blocks: 1.0
LIN Controller: Yes
High Voltage Subsystem (LDO, LIN PHY): Yes
CRYPTO: No
CAN-FD: No
iso-UART: No
GPIOs: 9.0
更多
Temperature: - 40°C - + 125°C
Target Application: IBS
Family: PSOC™ 4 HVPA-144K
