INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

TLE493D-P2B6A3

分类:
数据:

简介: high accuracy, low power

Additional Information: improved accuracy Interfaces: I2C Pre-Programed Init Address: no Target Application: Automotive Wake-Up Functionality: yes Classification: ISO 26262-ready Classification: AEC-Q100 Qualification: AEC-Q100/ ISO 26262 ready

TLE493D-W2B6A2

分类:
数据:

简介: 7nA (typ) power consumption

Interfaces: I2C Pre-Programed Init Address: yes Target Application: Automotive Wake-Up Functionality: yes Online Simulation: https://design.infineon.com/3dsim/ Language: Magnetics Product Category: Sensors Classification: ISO 26262-ready Classification: AEC-Q100 Qualification: Automotive

TLI493D-A2B6

分类:
数据:

简介: XENSIV™ - TLI493D-A2B6 3D magnetic Hall sensor for any kind of industrial or consumer applications

Interfaces: I2C Pre-Programed Init Address: no Target Application: Industrial, Consumer Wake-Up Functionality: no Online Simulation: https://design.infineon.com/3dsim/ Language: Magnetics Product Category: Sensors Classification: JESD47 Qualification: JESD47 Currently planned availability until at least: 2038

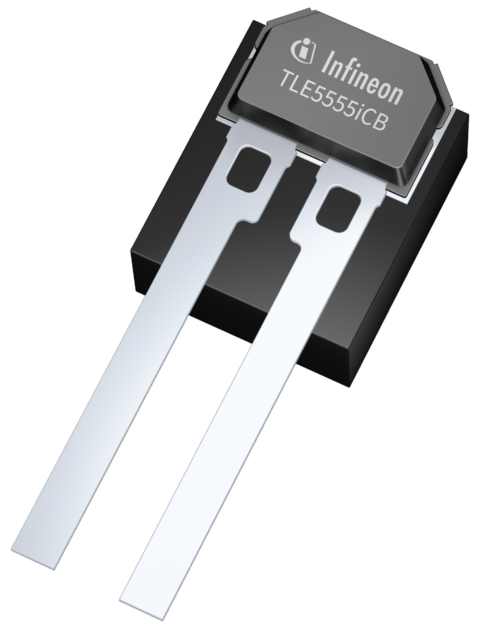

TLE5555ICBE1-TOP

分类: 敏感元器件和传感器(件) / 传感器件 / 力学量传感器件 / 速度传感器件
数据:

简介: XENSIV™ - TLE5555ICB E1-TOP with sintered ferrite back-bias magnet, a new era of TMR transmission speed sensors

Additional Information: Top read for steelwheels Applications: Transmission Classification: ISO 26262-ready Direction Detection: yes Interfaces: Current Technology: TMR Type of Hysteresis: visible adaptive Vibration Suppression: yes

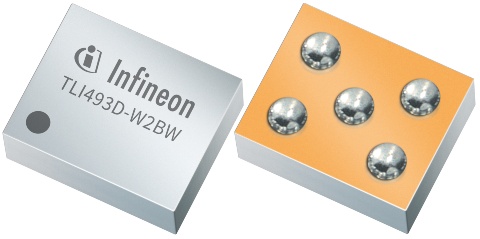

TLI493D-W2BWA0

分类:
数据:

简介: XENSIV™ - TLI493D-W2BW A0 extremely small power-saving 3D magnetic sensor opens up new design options

Additional Information: extremely small footprint Interfaces: I2C Pre-Programed Init Address: no Target Application: Industrial, Consumer Wake-Up Functionality: yes Classification: JESD47 Qualification: JESD47 Qualification: JESD47 Currently planned availability until at least: 2038 Currently planned availability until at least: 2038

TLI493D-W2BWA2

分类:
数据:

简介: XENSIV™ - TLI493D-W2BW A2 magnetic 3D sensor with wake-up function and higher resolution at extremely compact footprint

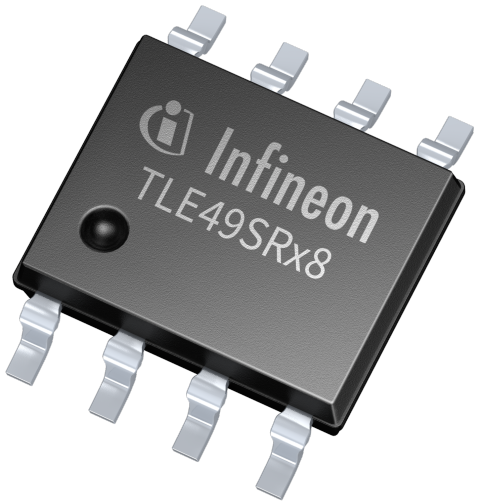

TLE49SRC8

分类:
数据:

简介: SPC, Hall, SMD

Classification: ISO 26262-compliant Interfaces: SPC Magnetic field max: 90.0mT Package: SMD Supply Voltage((V)): -21-26 Supply Voltage max: 26.0V Technology: Hall Temperature max: 125.0°C Currently planned availability until at least: 2038

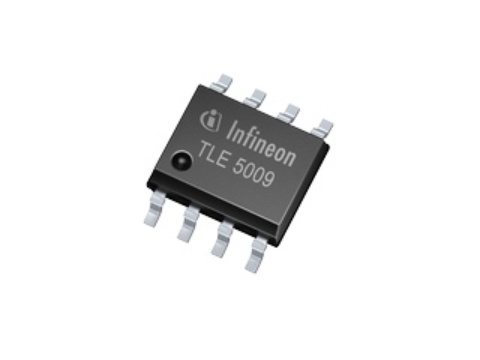

TLE5009E1000

分类:
数据:

简介: Analog, GMR, SMD

Package: SMD Interfaces: Analog Technology: GMR Temperature max: 150.0°C Supply Voltage max: 6.5V Supply Voltage((V)): 0.5-6.5 Magnetic field max: 50.0mT Classification: ISO 26262-ready ISO 26262: ready Currently planned availability until at least: 2033

TLI493D-W2BWA3

分类:
数据:

简介: XENSIV™ - TLI493D-W2BW A3 dedicated for extremely space-critical applications such as BLDC commutation in micromotors or control elements

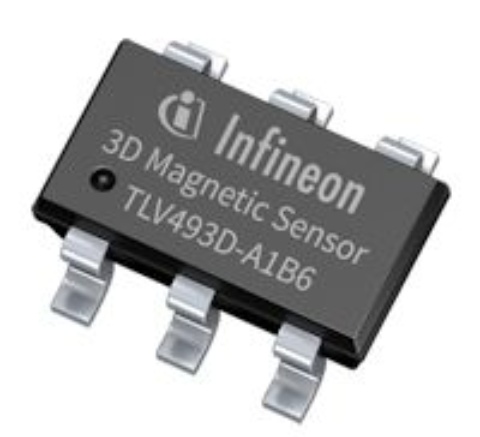

TLV493D-A1B6

分类:
数据:

简介: XENSIV™ - TLV493D-A1B6 is a 3D magnetic sensor offering three dimensional sensing at lowest power consumption

Interfaces: I2C Target Application: Industrial, Consumer Wake-Up Functionality: no Pre-Programed Init Address: no Online Simulation: https://design.infineon.com/3dsim/ Language: Magnetics Product Category: Sensors Classification: JESD47 Qualification: JESD47 Currently planned availability until at least: 2038
