INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

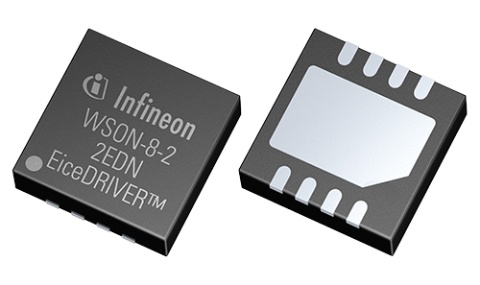

2EDN7524G

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: Fast dual-channel 5A gate driver optimized for driving both standard and superjunction MOSFETs, as well as GaN power switching devices.

Input Vcc: NoneV Channels: 2.0 Configuration: Low-side Voltage Class: 20.0V Package: PG-WSON-8 Qualification: Industrial Isolation Type: Non-isolated Output Current(Sink): 5.0A Output Current(Source): 5.0A Turn Off Propagation Delay: 19.0ns Turn On Propagation Delay: 17.0ns VBS UVLO(Off): 3.9V VBS UVLO(On): 4.2V Budgetary Price €/1k: 0.55

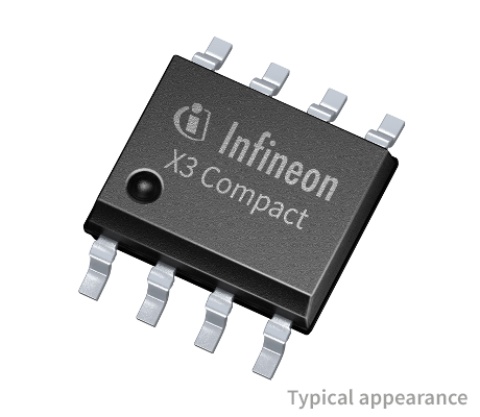

1ED3124MU12F

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 14 A, 3 kV (rms) single-channel isolated gate driver with separate output, UL 1577 certified, 10.5 V UVLO

Channels: 1.0 Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Functional Output Current(Source): 13.5A Output Current(Sink): 14.0A Qualification: Industrial Turn Off Propagation Delay: 90.0ns Turn On Propagation Delay: 90.0ns VCC UVLO(Off): 2.5V VCC UVLO(On): 3.1V VBS UVLO(Off): 10.5V VBS UVLO(On): 12.5V Voltage Class: 2300.0V Package: PG-DSO-8

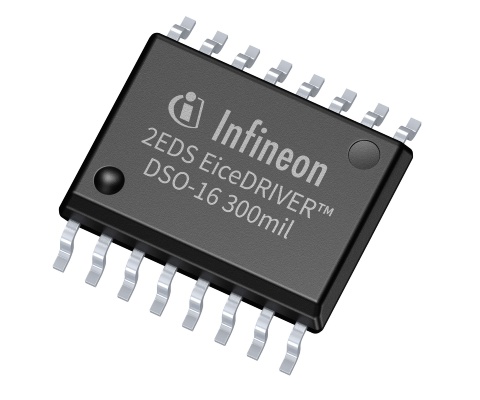

2EDS8165H

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: Fast, robust, dual-channel, reinforced isolated MOSFET gate drivers with accurate and stable timing

Voltage Class: 650.0V Configuration: Half Bridge Configuration: High-side and low-side Configuration: High-side Package: WB-DSO-16 Qualification: Industrial Input Vcc: NoneV Channels: 2.0 Isolation Type: Galvanic isolation - Reinforced Output Current(Source): 1.0A Output Current(Sink): 2.0A Turn Off Propagation Delay: 35.0ns Turn On Propagation Delay: 37.0ns VCC UVLO(On): 2.85V VBS UVLO(On): 8.0V Input-side supply: 20.0V Budgetary Price €/1k: 1.38

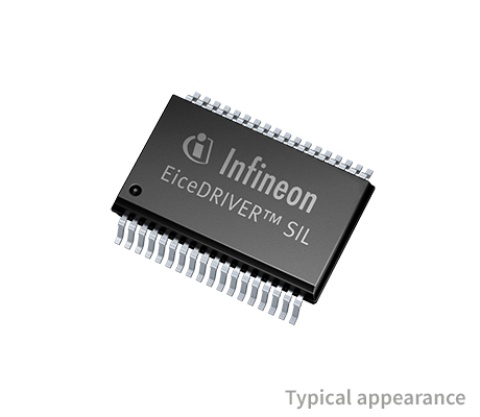

1EDI2002AS

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: Isolated single channel IGBT driver for high voltage automotive applications

Channels: 1.0 Configuration: High-side Voltage Class: 1200.0V Qualification: Automotive Isolation Type: Galvanic isolation - Functional Input Vcc: NoneV Package: PG-DSO-36 Turn Off Propagation Delay: 215.0ns Turn On Propagation Delay: 215.0ns VBS UVLO(Off): 11.7V VBS UVLO(On): 12.5V Classification: ISO 26262-ready Budgetary Price €/1k: 4.86

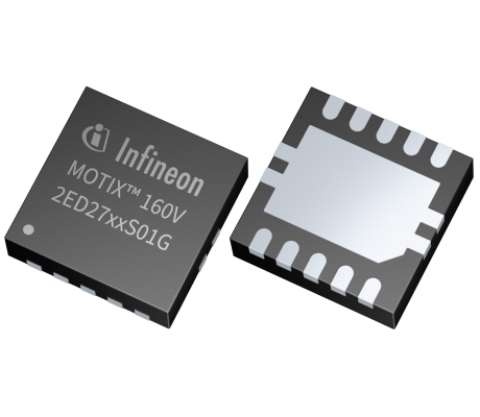

2ED2734S01G

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 160 V high side, low side SOI gate driver with integrated bootstrap diode

Channels: 2.0 Input Vcc: NoneV Operating Voltage: NoneV Output Current(Sink): 4.0A Output Current(Source): 2.0A Temperature: None°C Turn Off Propagation Delay: 50.0ns Turn On Propagation Delay: 50.0ns VBS UVLO(Off): 4.5V VBS UVLO(On): 5.0V VCC UVLO(Off): 4.5V VCC UVLO(On): 5.0V Voltage Class: 160.0V Isolation Type: Functional levelshift Qualification: Industrial Technology: MOTIX™ Driver Configuration: Half Bridge

2ED2732S01G

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 160 V high side, low side SOI gate driver with integrated bootstrap diode

Channels: 2.0 Input Vcc: NoneV Operating Voltage: NoneV Output Current(Sink): 2.0A Output Current(Source): 1.0A Temperature: None°C Turn Off Propagation Delay: 50.0ns Turn On Propagation Delay: 50.0ns VBS UVLO(Off): 4.5V VBS UVLO(On): 5.0V VCC UVLO(Off): 4.5V VCC UVLO(On): 5.0V Voltage Class: 160.0V Isolation Type: Functional levelshift Qualification: Industrial Technology: MOTIX™ Driver Configuration: Half Bridge

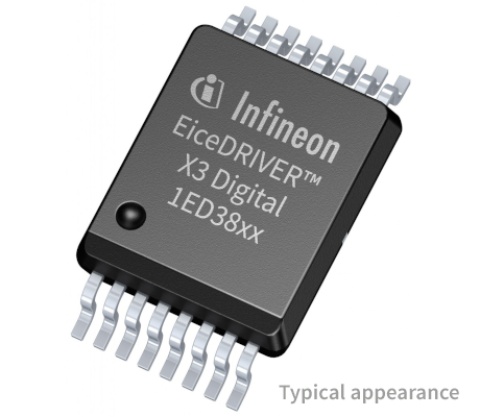

1ED3860MU12M

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 2300 V single-channel highly flexible isolated gate driver with I2C configurability for DESAT, Soft-Off, UVLO, Miller clamp, TLTO and Fault

Channels: 1.0 Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Functional Qualification: Industrial Voltage Class: 2300.0V Output Current(Sink): 5.0A Output Current(Source): 7.5A Turn Off Propagation Delay: 236.0ns Turn On Propagation Delay: 244.0ns VCC UVLO(Off): 2.8V VCC UVLO(On): 2.95V VBS UVLO(Off): 11.0V VBS UVLO(On): 12.0V Package: PG-DSO-16-33

2EDS8265H

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: Fast, robust, dual-channel, reinforced isolated MOSFET gate drivers with accurate and stable timing

Voltage Class: 650.0V Configuration: High-side and low-side Configuration: High-side Package: WB-DSO-16 Qualification: Industrial Input Vcc: NoneV Channels: 2.0 Isolation Type: Galvanic isolation - Reinforced Output Current(Source): 4.0A Output Current(Sink): 8.0A Turn Off Propagation Delay: 37.0ns Turn On Propagation Delay: 37.0ns VCC UVLO(On): 2.85V VBS UVLO(On): 8.0V Input-side supply: 20.0V Configuration: Half Bridge Budgetary Price €/1k: 1.63

2ED2738S01G

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 160 V high side, low side SOI gate driver with integrated bootstrap diode

Channels: 2.0 Input Vcc: NoneV Operating Voltage: NoneV Output Current(Sink): 8.0A Output Current(Source): 4.0A Temperature: None°C Turn Off Propagation Delay: 65.0ns Turn On Propagation Delay: 65.0ns VBS UVLO(Off): 4.5V VBS UVLO(On): 5.0V VCC UVLO(Off): 4.5V VCC UVLO(On): 5.0V Voltage Class: 160.0V Isolation Type: Functional levelshift Qualification: Industrial Technology: MOTIX™ Driver Configuration: Half Bridge

1ED3491MU12M

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 5.7 kV, 9 A single-channel flexible isolated gate driver with active Miller clamp, adjustable DESAT and Soft-off. UL 1577 certified

Channels: 1.0 Configuration: High-side Input Vcc: NoneV Isolation Type: Galvanic isolation - Functional Qualification: Industrial Voltage Class: 2300.0V Output Current(Sink): 7.5A Output Current(Source): 11.0A Turn Off Propagation Delay: 236.0ns Turn On Propagation Delay: 244.0ns VCC UVLO(Off): 2.8V VCC UVLO(On): 2.95V VBS UVLO(Off): 11.0V VBS UVLO(On): 12.0V Package: PG-DSO-16-33
