INFINEON
Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。
Input Vcc: NoneV
Channels: 2.0
Configuration: High-side and low-side
Voltage Class: 200.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.29A
Output Current(Sink): 0.6A
Turn Off Propagation Delay: 150.0ns
Turn On Propagation Delay: 160.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 8.9V
Input Vcc: NoneV
Channels: 2.0
Configuration: Half Bridge
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.2A
Output Current(Sink): 0.35A
Turn Off Propagation Delay: 200.0ns
Turn On Propagation Delay: 750.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 8.9V
VBS UVLO(Off): 8.2V
VBS UVLO(On): 8.9V

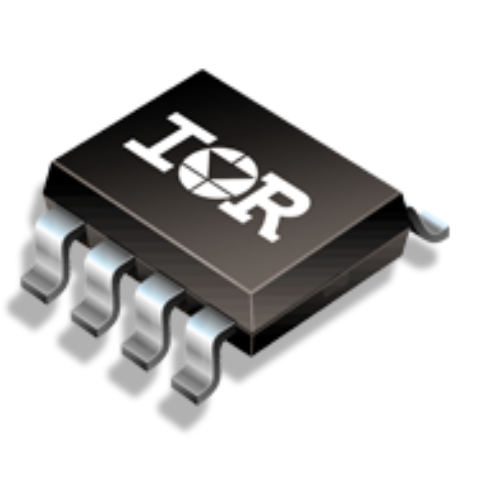

IRS2153D
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: 600 V half-bridge gate driver IC with oscillator, integrated bootstrap FET, programmable frequency and programmable shutdown
Input Vcc: NoneV
Channels: 2.0
Configuration: Half Bridge
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Sink): 0.26A
Output Current(Source): 0.18A
VCC UVLO(On): 11.0V
VCC UVLO(Off): 9.0V
VBS UVLO(Off): 8.0V
VBS UVLO(On): 9.0V
Input Vcc: NoneV
Channels: 2.0
Configuration: Half Bridge
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
VCC UVLO(Off): 8.0V
VCC UVLO(On): 9.0V

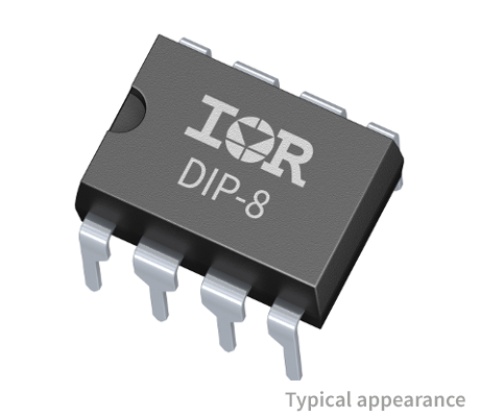

IR2112
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: 600 V high-side and low-side gate driver IC with shutdown
Input Vcc: NoneV
Channels: 2.0
Configuration: High-side and low-side
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.25A
Output Current(Sink): 0.5A
Turn Off Propagation Delay: 105.0ns
Turn On Propagation Delay: 125.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 8.6V
VBS UVLO(Off): 8.1V
VBS UVLO(On): 8.5V

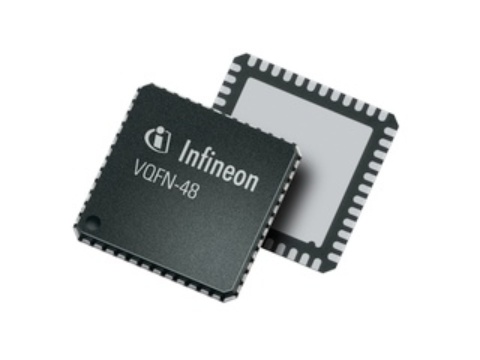

Configuration: Three Phase
Voltage Class: 55.0V
Channels: 6.0
Isolation Type: Non-isolated
Output Current(Source): 0.35A
Output Current(Sink): 0.35A
Supply Voltage: NoneV
Driving Capability: 130nC at 20kHz
Current Sense Amplifier: 1xCSA
Diagnostics: UV, OV, OC, SCD, OT, VDD supervision
Qualification: Automotive
Temperature: None°C
Classification: QM
Configuration: Three Phase
Diagnostics: UV, OV, SCD, OT, VDD supervision
Voltage Class: 55.0V
Channels: 6.0
Isolation Type: Non-isolated
Output Current(Sink): 1.5A
Output Current(Source): 0.8A
Qualification: Automotive
Temperature: - 40°C - 150°C
Technology: MOTIX™ Driver
Supply Voltage: NoneV
Driving Capability: 170nC at 20kHz
Current Sense Amplifier: 3xCSA
Temperature: None°C
Classification: QM
Configuration: Three Phase
Voltage Class: 55.0V
Channels: 6.0
Isolation Type: Non-isolated
Output Current(Source): 0.35A
Output Current(Sink): 0.35A
Supply Voltage: NoneV
Driving Capability: 130nC at 20kHz
Current Sense Amplifier: 1xCSA
Diagnostics: UV, OV, OC, SCD, OT, VDD supervision
Qualification: Automotive
Temperature: None°C
Classification: QM

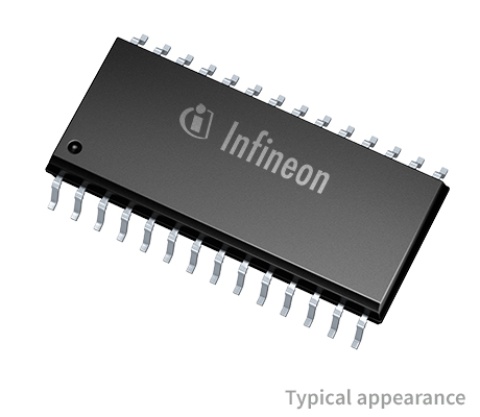

6ED003L06-F2
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: 600 V three-phase gate driver IC with over current protection, enable and fault reporting
Input Vcc: NoneV
Channels: 6.0
Configuration: Three Phase
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.165A
Output Current(Sink): 0.375A
Turn Off Propagation Delay: 490.0ns
Turn On Propagation Delay: 530.0ns
VCC UVLO(On): 11.7V
VCC UVLO(Off): 9.8V
VBS UVLO(On): 11.7V
VBS UVLO(Off): 9.8V

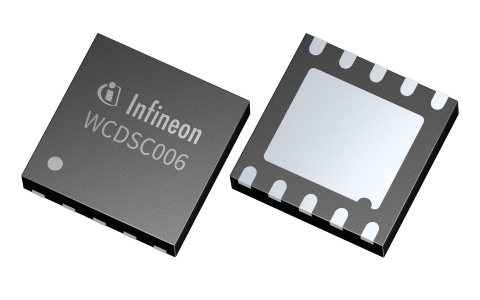

WCDSC006
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: Half-bridge level-shift gate-driver IC ensuring robust and efficient wireless charging operation
Voltage Class: 60.0V
Channels: 2.0
Configuration: Half Bridge
Qualification: Industrial
Isolation Type: Functional levelshift
Input Vcc: NoneV
Output Current(Source): 2.0A
Output Current(Sink): 4.0A
Turn Off Propagation Delay: 40.0ns
Turn On Propagation Delay: 40.0ns
VCC UVLO(Off): 3.9V
VBS UVLO(On): 4.1V
