ANALOG DEVICES INC

Analog Devices, Inc.（NASDAQ: ADI)是全球领先的半导体公司，致力于在现实世界与数字世界之间架起桥梁，以实现智能边缘领域的突破性创新。ADI提供结合模拟、数字和软件技术的解决方案，推动数字化工厂、汽车和数字医疗等领域的持续发展，应对气候变化挑战，并建立人与世界万物的可靠互联。ADI公司2022财年收入超过120亿美元，全球员工约2.5万人。

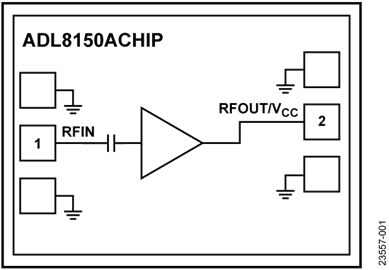

ADL8150ACPZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、HBT、MMIC、低相位噪声放大器，6 GHz至14 GHz

RF Primary Function: Driver Amp, Low Phase Noise Freq Response RF (min): 6GHz Freq Response RF (max): 14GHz Gain dB (typ): 12dB OP1dB (typ): 18dBm NF (typ): 3.6dB OIP3 (typ): 30dBm Vs (typ): 5V Is (typ): 74mA Residual Phase Noise (typ): -172dBc/Hz Package: CHIPS OR DIE,6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 6V Gain dB (min): 10dB Specified at Freq: 12GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No
Temp Range: -40 to 85°C Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (ADL8150ACPZN)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (ADL8150ACPZN)mm Launch Date: 2020-07-31 EP: No

ADL8150ACPZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、HBT、MMIC、低相位噪声放大器，6 GHz至14 GHz

RF Primary Function: Driver Amp, Low Phase Noise Freq Response RF (min): 6GHz Freq Response RF (max): 14GHz Gain dB (typ): 12dB OP1dB (typ): 18dBm NF (typ): 3.6dB OIP3 (typ): 30dBm Vs (typ): 5V Is (typ): 74mA Residual Phase Noise (typ): -172dBc/Hz Package: CHIPS OR DIE,6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 6V Gain dB (min): 10dB Specified at Freq: 12GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No
Temp Range: -40 to 85°C Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (ADL8150ACPZN)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (ADL8150ACPZN)mm Launch Date: 2020-07-31 EP: No

ADL8150CHIP-SX

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、HBT、MMIC、低相位噪声放大器，6 GHz至14 GHz

RF Primary Function: Driver Amp, Low Phase Noise Freq Response RF (min): 6GHz Freq Response RF (max): 14GHz Gain dB (typ): 12dB OP1dB (typ): 18dBm NF (typ): 3.6dB OIP3 (typ): 30dBm Vs (typ): 5V Is (typ): 74mA Residual Phase Noise (typ): -172dBc/Hz Package: CHIPS OR DIE,6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 6V Gain dB (min): 10dB Specified at Freq: 12GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No
Temp Range: -40 to 85°C Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (ADL8150ACPZN)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (ADL8150ACPZN)mm Launch Date: 2020-07-31 EP: No

HMC8412CHIPS-SX

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 0.4 GHz 至 11 GHz 低噪声放大器

RF Primary Function: Gain Block, LNA, Low Phase Noise Freq Response RF (min): 400MHz Freq Response RF (max): 11GHz Gain dB (typ): 15dB OP1dB (typ): 18dBm NF (typ): 1.5dB OIP3 (typ): 33dBm Vs (typ): 5V Is (typ): 60mA Package: CHIPS OR DIE,6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 6V Gain dB (min): 13dB Specified at Freq: 9GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: EP Temp Range: -40 to 85°C
Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm Launch Date: 2020-06-01 EP: Yes

HMC8412LP2FE

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 0.4 GHz 至 11 GHz 低噪声放大器

RF Primary Function: Gain Block, LNA, Low Phase Noise Freq Response RF (min): 400MHz Freq Response RF (max): 11GHz Gain dB (typ): 15dB OP1dB (typ): 18dBm NF (typ): 1.5dB OIP3 (typ): 33dBm Vs (typ): 5V Is (typ): 60mA Package: CHIPS OR DIE,6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 6V Gain dB (min): 13dB Specified at Freq: 9GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: EP Temp Range: -40 to 85°C
Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm Launch Date: 2020-06-01 EP: Yes

HMC8412CHIPS

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 0.4 GHz 至 11 GHz 低噪声放大器

RF Primary Function: Gain Block, LNA, Low Phase Noise Freq Response RF (min): 400MHz Freq Response RF (max): 11GHz Gain dB (typ): 15dB OP1dB (typ): 18dBm NF (typ): 1.5dB OIP3 (typ): 33dBm Vs (typ): 5V Is (typ): 60mA Package: CHIPS OR DIE,6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 6V Gain dB (min): 13dB Specified at Freq: 9GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: EP Temp Range: -40 to 85°C
Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm Launch Date: 2020-06-01 EP: Yes

HMC8412LP2FETR

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 0.4 GHz 至 11 GHz 低噪声放大器

RF Primary Function: Gain Block, LNA, Low Phase Noise Freq Response RF (min): 400MHz Freq Response RF (max): 11GHz Gain dB (typ): 15dB OP1dB (typ): 18dBm NF (typ): 1.5dB OIP3 (typ): 33dBm Vs (typ): 5V Is (typ): 60mA Package: CHIPS OR DIE,6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 6V Gain dB (min): 13dB Specified at Freq: 9GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: EP Temp Range: -40 to 85°C
Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm Launch Date: 2020-06-01 EP: Yes

HMC8412TCPZ-EP-PT

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 0.4 GHz 至 11 GHz 低噪声放大器

RF Primary Function: Gain Block, LNA, Low Phase Noise Freq Response RF (min): 400MHz Freq Response RF (max): 11GHz Gain dB (typ): 15dB OP1dB (typ): 18dBm NF (typ): 1.5dB OIP3 (typ): 33dBm Vs (typ): 5V Is (typ): 60mA Package: CHIPS OR DIE,6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 6V Gain dB (min): 13dB Specified at Freq: 9GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: EP Temp Range: -40 to 85°C
Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm Launch Date: 2020-06-01 EP: Yes

HMC8412TCPZ-EP-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 0.4 GHz 至 11 GHz 低噪声放大器

RF Primary Function: Gain Block, LNA, Low Phase Noise Freq Response RF (min): 400MHz Freq Response RF (max): 11GHz Gain dB (typ): 15dB OP1dB (typ): 18dBm NF (typ): 1.5dB OIP3 (typ): 33dBm Vs (typ): 5V Is (typ): 60mA Package: CHIPS OR DIE,6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 6V Gain dB (min): 13dB Specified at Freq: 9GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: EP Temp Range: -40 to 85°C
Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (HMC8412LP2FE)mm Launch Date: 2020-06-01 EP: Yes

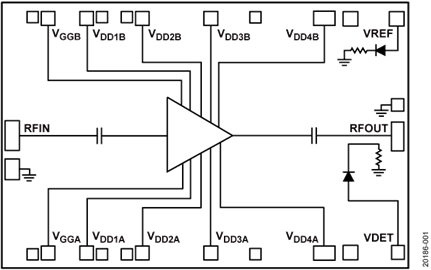

ADPA7006AEHZ-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 18 GHz 至 44 GHz GaAs pHEMT MMIC 1/2 W 功率放大器

RF Primary Function: Power Amp, Wideband Distributed Amps Freq Response RF (min): 18GHz Freq Response RF (max): 44GHz Gain dB (typ): 23dB OP1dB (typ): 29dBm NF (typ): 7dB OIP3 (typ): 37.5dBm Vs (typ): 5V Is (typ): 800mA Package: CHIPS OR DIE,16-Lead LCC (6mm x 6mm x 1.32mm w/EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4V Gain dB (min): 20.5dB Specified at Freq: 34GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C Package Area: 36mm² (16-Lead LCC (6mm x 6mm x 1.32mm w/EP)) (ADPA7006AEHZ)mm²
Package Height: 1.32mm (16-Lead LCC (6mm x 6mm x 1.32mm w/EP)) (ADPA7006AEHZ)mm Launch Date: 2020-04-28 EP: No
