ANALOG DEVICES INC

Analog Devices, Inc.（NASDAQ: ADI)是全球领先的半导体公司，致力于在现实世界与数字世界之间架起桥梁，以实现智能边缘领域的突破性创新。ADI提供结合模拟、数字和软件技术的解决方案，推动数字化工厂、汽车和数字医疗等领域的持续发展，应对气候变化挑战，并建立人与世界万物的可靠互联。ADI公司2022财年收入超过120亿美元，全球员工约2.5万人。

ADRF5515BCPZN-R7

分类: 微电路 / 半导体集成电路 / 射频电路
数据:

简介: 双通道，3.3 GHz至4.0 GHz，20 W接收器前端

RF Primary Function: Massive MIMO Receiver Front End Freq Response RF (min): 3.4GHz Freq Response RF (max): 3.8GHz Gain dB (typ): 33dB OP1dB (typ): 18dBm NF (typ): 1dB OIP3 (typ): 32dBm Vs (typ): 5V Is (typ): 36mA Package: 40-Lead LFCSP (6mm x 6mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 2 Vs+ (min): 4.75V Vs+ (max): 5.25V Gain dB (min): 16dB Gain dB (max): 33dB Specified at Freq: 3.6GHz Eval / Ref Circuit: Evaluation board Export Classification: 5A991.b.6 Automotive: No
Temp Range: -40 to 105°C Package Area: 36mm² (40-Lead LFCSP (6mm x 6mm w/ EP)) (ADRF5515BCPZN-RL)mm² Package Height: 1mm (40-Lead LFCSP (6mm x 6mm w/ EP)) (ADRF5515BCPZN-RL)mm Launch Date: 2020-11-20 EP: No

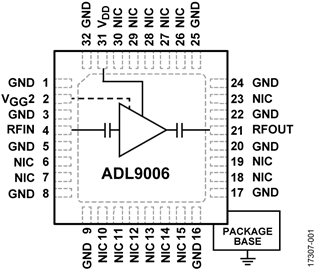

ADPA1105ACGZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 46 dBm (40 W)、0.9 GHz至1.6 GHz GaN功率放大器

RF Primary Function: GaN Power Amp, Power Amp Freq Response RF (min): 900MHz Freq Response RF (max): 1.6GHz Gain dB (typ): 34.5dB Vs (typ): 50V Is (typ): 400mA Package: 32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Gain dB (min): 32dB Gain dB (max): 34.5dB Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA1105ACGZN-R7)mm² Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA1105ACGZN-R7)mm Launch Date: 2020-10-16 EP: No

ADPA1105ACGZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 46 dBm (40 W)、0.9 GHz至1.6 GHz GaN功率放大器

RF Primary Function: GaN Power Amp, Power Amp Freq Response RF (min): 900MHz Freq Response RF (max): 1.6GHz Gain dB (typ): 34.5dB Vs (typ): 50V Is (typ): 400mA Package: 32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Gain dB (min): 32dB Gain dB (max): 34.5dB Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA1105ACGZN-R7)mm² Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA1105ACGZN-R7)mm Launch Date: 2020-10-16 EP: No

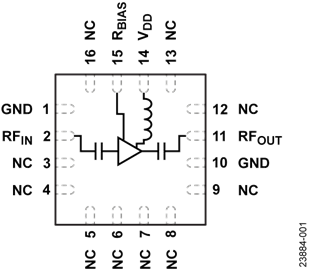

ADL8104ACPZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 0.4 GHz 至 7.5 GHz 的高线性度宽带低噪声放大器

RF Primary Function: Gain Block, LNA Freq Response RF (min): 400MHz Freq Response RF (max): 7.5GHz Gain dB (typ): 15dB OP1dB (typ): 20dBm NF (typ): 3.5dB OIP3 (typ): 32dBm Vs (typ): 5V Is (typ): 150mA Package: 16-Lead LFCSP (3mm x 3mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 5.5V Gain dB (min): 12dB Specified at Freq: 6GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 9mm² (16-Lead LFCSP (3mm x 3mm w/ EP)) (ADL8104ACPZN)mm² Package Height: 0.8mm (16-Lead LFCSP (3mm x 3mm w/ EP)) (ADL8104ACPZN)mm Launch Date: 2020-09-17 EP: No

ADL8104ACPZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 0.4 GHz 至 7.5 GHz 的高线性度宽带低噪声放大器

RF Primary Function: Gain Block, LNA Freq Response RF (min): 400MHz Freq Response RF (max): 7.5GHz Gain dB (typ): 15dB OP1dB (typ): 20dBm NF (typ): 3.5dB OIP3 (typ): 32dBm Vs (typ): 5V Is (typ): 150mA Package: 16-Lead LFCSP (3mm x 3mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 5.5V Gain dB (min): 12dB Specified at Freq: 6GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 9mm² (16-Lead LFCSP (3mm x 3mm w/ EP)) (ADL8104ACPZN)mm² Package Height: 0.8mm (16-Lead LFCSP (3mm x 3mm w/ EP)) (ADL8104ACPZN)mm Launch Date: 2020-09-17 EP: No

ADL9006ACGZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 2 GHz至28 GHz、GaAs、pHEMT、MMIC低噪声放大器

RF Primary Function: LNA, Wideband Distributed Amps Freq Response RF (min): 2GHz Freq Response RF (max): 28GHz Gain dB (typ): 15.5dB OP1dB (typ): 18dBm NF (typ): 2.5dB OIP3 (typ): 23dBm Vs (typ): 5V Is (typ): 53mA Package: CHIPS OR DIE,32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4V Vs+ (max): 7V Gain dB (min): 13dB Specified at Freq: 20GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADL9006ACGZN)mm² Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADL9006ACGZN)mm Launch Date: 2020-08-26 EP: No

ADL9006ACGZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 2 GHz至28 GHz、GaAs、pHEMT、MMIC低噪声放大器

RF Primary Function: LNA, Wideband Distributed Amps Freq Response RF (min): 2GHz Freq Response RF (max): 28GHz Gain dB (typ): 15.5dB OP1dB (typ): 18dBm NF (typ): 2.5dB OIP3 (typ): 23dBm Vs (typ): 5V Is (typ): 53mA Package: CHIPS OR DIE,32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4V Vs+ (max): 7V Gain dB (min): 13dB Specified at Freq: 20GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADL9006ACGZN)mm² Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADL9006ACGZN)mm Launch Date: 2020-08-26 EP: No

ADL9006C-KIT

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 2 GHz至28 GHz、GaAs、pHEMT、MMIC低噪声放大器

RF Primary Function: LNA, Wideband Distributed Amps Freq Response RF (min): 2GHz Freq Response RF (max): 28GHz Gain dB (typ): 15.5dB OP1dB (typ): 18dBm NF (typ): 2.5dB OIP3 (typ): 23dBm Vs (typ): 5V Is (typ): 53mA Package: CHIPS OR DIE,32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4V Vs+ (max): 7V Gain dB (min): 13dB Specified at Freq: 20GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADL9006ACGZN)mm² Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADL9006ACGZN)mm Launch Date: 2020-08-26 EP: No

ADL9006CHIPS

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 2 GHz至28 GHz、GaAs、pHEMT、MMIC低噪声放大器

RF Primary Function: LNA, Wideband Distributed Amps Freq Response RF (min): 2GHz Freq Response RF (max): 28GHz Gain dB (typ): 15.5dB OP1dB (typ): 18dBm NF (typ): 2.5dB OIP3 (typ): 23dBm Vs (typ): 5V Is (typ): 53mA Package: CHIPS OR DIE,32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4V Vs+ (max): 7V Gain dB (min): 13dB Specified at Freq: 20GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADL9006ACGZN)mm² Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADL9006ACGZN)mm Launch Date: 2020-08-26 EP: No

ADL8150ACHIP

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、HBT、MMIC、低相位噪声放大器，6 GHz至14 GHz

RF Primary Function: Driver Amp, Low Phase Noise Freq Response RF (min): 6GHz Freq Response RF (max): 14GHz Gain dB (typ): 12dB OP1dB (typ): 18dBm NF (typ): 3.6dB OIP3 (typ): 30dBm Vs (typ): 5V Is (typ): 74mA Residual Phase Noise (typ): -172dBc/Hz Package: CHIPS OR DIE,6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 6V Gain dB (min): 10dB Specified at Freq: 12GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No
Temp Range: -40 to 85°C Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (ADL8150ACPZN)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (ADL8150ACPZN)mm Launch Date: 2020-07-31 EP: No
