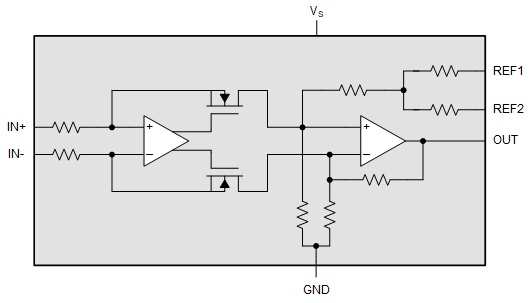

INA241A-Q1
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 其他放大器数据:
简介: 具有增强型 PWM 抑制功能、符合 AEC-Q100 标准的 -4V 至 110V、双向、超精密电流检测放大器
Product type: Analog output
Common-mode voltage (max) (V): 110
Common-mode voltage (min) (V): -5
Input offset (±) (max) (µV): 8, 10, 15, 20
Input offset drift (±) (typ) (µV/°C): 0.05, 0.1
Voltage gain (V/V): 10, 20, 50, 100, 200
CMRR (min) (dB): 150
Bandwidth (kHz): 1100
Supply voltage (max) (V): 20
Supply voltage (min) (V): 2.7
Iq (max) (mA): 3.2
Number of channels: 1
Comparators (#): 0
Gain error (%): 0.01, 0.015
Gain error drift (±) (max) (ppm/°C): 1
Slew rate (V/µs): 5
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Product type: Analog output
更多
Common-mode voltage (max) (V): 110
Common-mode voltage (min) (V): -5
Input offset (±) (max) (µV): 8, 10, 15, 20
Input offset drift (±) (typ) (µV/°C): 0.05, 0.1
Voltage gain (V/V): 10, 20, 50, 100, 200
CMRR (min) (dB): 150
Bandwidth (kHz): 1100
Supply voltage (max) (V): 20
Supply voltage (min) (V): 2.7
Iq (max) (mA): 3.2
Number of channels: 1
Comparators (#): 0
Gain error (%): 0.01, 0.015
Gain error drift (±) (max) (ppm/°C): 1
Slew rate (V/µs): 5
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
INA241B-Q1
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 其他放大器数据:
简介: 具有增强型 PWM 抑制功能、符合 AEC-Q100 标准的 -4V 至 110V、双向、高精度电流检测放大器
Product type: Analog output
Common-mode voltage (max) (V): 110
Common-mode voltage (min) (V): -5
Input offset (±) (max) (µV): 150
Input offset drift (±) (typ) (µV/°C): 0.5
Voltage gain (V/V): 10, 20, 50, 100, 200, 500
CMRR (min) (dB): 120
Bandwidth (kHz): 1100
Supply voltage (max) (V): 20
Supply voltage (min) (V): 2.7
Iq (max) (mA): 3.2
Number of channels: 1
Comparators (#): 0
Gain error (%): 0.1
Gain error drift (±) (max) (ppm/°C): 5
Slew rate (V/µs): 5
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Product type: Analog output
更多
Common-mode voltage (max) (V): 110
Common-mode voltage (min) (V): -5
Input offset (±) (max) (µV): 150
Input offset drift (±) (typ) (µV/°C): 0.5
Voltage gain (V/V): 10, 20, 50, 100, 200, 500
CMRR (min) (dB): 120
Bandwidth (kHz): 1100
Supply voltage (max) (V): 20
Supply voltage (min) (V): 2.7
Iq (max) (mA): 3.2
Number of channels: 1
Comparators (#): 0
Gain error (%): 0.1
Gain error drift (±) (max) (ppm/°C): 5
Slew rate (V/µs): 5
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
INA296A-Q1
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 其他放大器数据:
简介: 符合 AEC-Q100 标准的 -5V 至 110V、双向、1.1MHz、8V/µs、超精密电流检测放大器
Product type: Analog output
Common-mode voltage (max) (V): 110
Common-mode voltage (min) (V): -5
Input offset (±) (max) (µV): 8, 10, 15, 20
Input offset drift (±) (typ) (µV/°C): 0.1
Voltage gain (V/V): 10, 20, 50, 100, 200
CMRR (min) (dB): 150
Bandwidth (kHz): 1100
Supply voltage (max) (V): 20
Supply voltage (min) (V): 2.7
Iq (max) (mA): 3.2
Number of channels: 1
Comparators (#): 0
Gain error (%): 0.01, 0.015
Gain error drift (±) (max) (ppm/°C): 1
Slew rate (V/µs): 8
Features: Bidirectional, Low-side Capable, Ultra precise
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
更多
Product type: Analog output
Common-mode voltage (max) (V): 110
Common-mode voltage (min) (V): -5
Input offset (±) (max) (µV): 8, 10, 15, 20
Input offset drift (±) (typ) (µV/°C): 0.1
Voltage gain (V/V): 10, 20, 50, 100, 200
CMRR (min) (dB): 150
Bandwidth (kHz): 1100
Supply voltage (max) (V): 20
Supply voltage (min) (V): 2.7
Iq (max) (mA): 3.2
Number of channels: 1
Comparators (#): 0
Gain error (%): 0.01, 0.015
Gain error drift (±) (max) (ppm/°C): 1
Slew rate (V/µs): 8
Features: Bidirectional, Low-side Capable, Ultra precise
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
INA296B-Q1
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 其他放大器数据:
简介: 符合 AEC-Q100 标准的 -5V 至 110V、双向、1.1MHz、8V/µs、高精度电流检测放大器
Product type: Analog output
Common-mode voltage (max) (V): 110
Common-mode voltage (min) (V): -5
Input offset (±) (max) (µV): 150
Input offset drift (±) (typ) (µV/°C): 0.5
Voltage gain (V/V): 10, 20, 50, 100, 200
CMRR (min) (dB): 120
Bandwidth (kHz): 1100
Supply voltage (max) (V): 20
Supply voltage (min) (V): 2.7
Iq (max) (mA): 3.2
Number of channels: 1
Comparators (#): 0
Gain error (%): 0.1
Gain error drift (±) (max) (ppm/°C): 5
Slew rate (V/µs): 8
Features: Bidirectional, High precision, Low-side Capable
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
更多
Product type: Analog output
Common-mode voltage (max) (V): 110
Common-mode voltage (min) (V): -5
Input offset (±) (max) (µV): 150
Input offset drift (±) (typ) (µV/°C): 0.5
Voltage gain (V/V): 10, 20, 50, 100, 200
CMRR (min) (dB): 120
Bandwidth (kHz): 1100
Supply voltage (max) (V): 20
Supply voltage (min) (V): 2.7
Iq (max) (mA): 3.2
Number of channels: 1
Comparators (#): 0
Gain error (%): 0.1
Gain error drift (±) (max) (ppm/°C): 5
Slew rate (V/µs): 8
Features: Bidirectional, High precision, Low-side Capable
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125

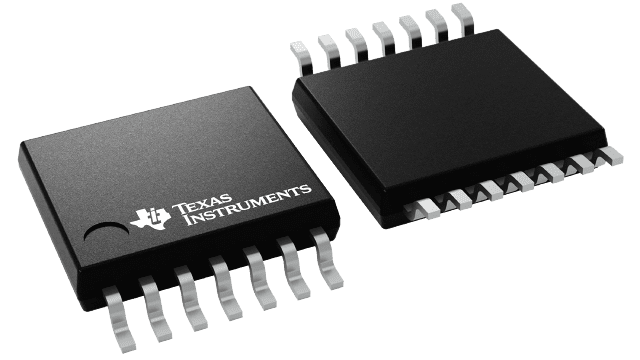

Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 36
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 3
Rail-to-rail: In to V-
GBW (typ) (MHz): 1.2
Slew rate (typ) (V/µs): 0.5
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 0.175
Vn at 1 kHz (typ) (nV√Hz): 35
Rating: Automotive
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 7
Features: Cost Optimized, EMI Hardened, Standard Amps
Input bias current (max) (pA): 35000
CMRR (typ) (dB): 80
Iout (typ) (A): 0.04
Architecture: Bipolar
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -1.5
Output swing headroom (to negative supply) (typ) (V): 0.005
更多
Output swing headroom (to positive supply) (typ) (V): -1.4
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 36
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 3
Rail-to-rail: In to V-
GBW (typ) (MHz): 1.2
Slew rate (typ) (V/µs): 0.5
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 0.175
Vn at 1 kHz (typ) (nV√Hz): 35
Rating: Automotive
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 7
Features: Cost Optimized, EMI Hardened, Standard Amps
Input bias current (max) (pA): 35000
CMRR (typ) (dB): 80
Iout (typ) (A): 0.04
Architecture: Bipolar
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -1.5
Output swing headroom (to negative supply) (typ) (V): 0.005
Output swing headroom (to positive supply) (typ) (V): -1.4

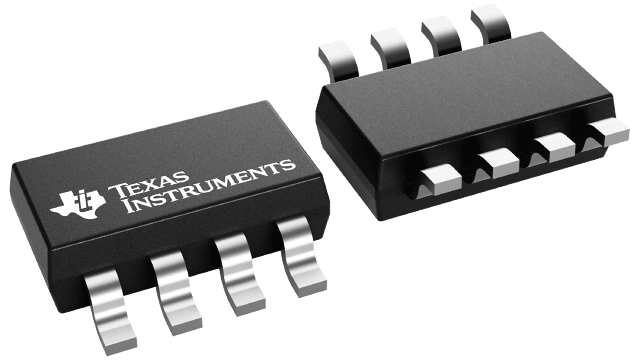

Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 40
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7
Rail-to-rail: In, Out
GBW (typ) (MHz): 10.6
Slew rate (typ) (V/µs): 32
Vos (offset voltage at 25°C) (max) (mV): 1
Iq per channel (typ) (mA): 2.4
Vn at 1 kHz (typ) (nV√Hz): 7
Rating: Automotive
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 0.25
Features: EMI Hardened, MUX Friendly, Small Size
CMRR (typ) (dB): 115
Iout (typ) (A): 0.065
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 0.048
Output swing headroom (to positive supply) (typ) (V): -0.048
更多
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 40
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7
Rail-to-rail: In, Out
GBW (typ) (MHz): 10.6
Slew rate (typ) (V/µs): 32
Vos (offset voltage at 25°C) (max) (mV): 1
Iq per channel (typ) (mA): 2.4
Vn at 1 kHz (typ) (nV√Hz): 7
Rating: Automotive
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 0.25
Features: EMI Hardened, MUX Friendly, Small Size
CMRR (typ) (dB): 115
Iout (typ) (A): 0.065
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 0.048
Output swing headroom (to positive supply) (typ) (V): -0.048

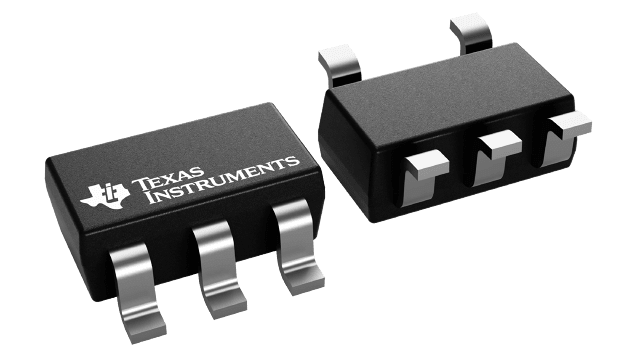

Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.5
Rail-to-rail: In to V-, Out
GBW (typ) (MHz): 1
Slew rate (typ) (V/µs): 1.7
Vos (offset voltage at 25°C) (max) (mV): 4
Iq per channel (typ) (mA): 0.08
Vn at 1 kHz (typ) (nV√Hz): 33
Rating: Automotive
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 1
Features: Cost Optimized, EMI Hardened, Small Size
CMRR (typ) (dB): 77
Iout (typ) (A): 0.04
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.1
Input common mode headroom (to positive supply) (typ) (V): -1
Output swing headroom (to negative supply) (typ) (V): 0.02
Output swing headroom (to positive supply) (typ) (V): -0.02
更多
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.5
Rail-to-rail: In to V-, Out
GBW (typ) (MHz): 1
Slew rate (typ) (V/µs): 1.7
Vos (offset voltage at 25°C) (max) (mV): 4
Iq per channel (typ) (mA): 0.08
Vn at 1 kHz (typ) (nV√Hz): 33
Rating: Automotive
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 1
Features: Cost Optimized, EMI Hardened, Small Size
CMRR (typ) (dB): 77
Iout (typ) (A): 0.04
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.1
Input common mode headroom (to positive supply) (typ) (V): -1
Output swing headroom (to negative supply) (typ) (V): 0.02
Output swing headroom (to positive supply) (typ) (V): -0.02
Number of channels: 2
Output type: Push-Pull
Propagation delay time (µs): 0.0025
Vs (max) (V): 5.5
Vs (min) (V): 2.4
Vos (offset voltage at 25°C) (max) (mV): 5
Iq per channel (typ) (mA): 4.9
Input bias current (±) (max) (nA): 5000
Rail-to-rail: In
Rating: Automotive
Operating temperature range (°C): -40 to 125
Features: Hysteresis, POR
VICR (max) (V): 5.7
VICR (min) (V): -0.2
TI functional safety category: Functional Safety-Capable
Number of channels: 2
Output type: Push-Pull
Propagation delay time (µs): 0.0025
Vs (max) (V): 5.5
Vs (min) (V): 2.4
更多
Vos (offset voltage at 25°C) (max) (mV): 5
Iq per channel (typ) (mA): 4.9
Input bias current (±) (max) (nA): 5000
Rail-to-rail: In
Rating: Automotive
Operating temperature range (°C): -40 to 125
Features: Hysteresis, POR
VICR (max) (V): 5.7
VICR (min) (V): -0.2
TI functional safety category: Functional Safety-Capable
Common-mode voltage (max) (V): 48
Common-mode voltage (min) (V): -0.3
Input offset (±) (max) (µV): 50
Input offset drift (±) (max) (µV/°C): 0.1
Voltage gain (V/V): 1
CMRR (min) (dB): 120
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 1.7
Digital interface: I2C
Gain error (%): 0.3
Gain error drift (±) (max) (ppm/°C): 30
Number of channels: 1
Resolution (bps): 16
Power measurement accuracy (%): 0.8
Rating: Catalog
Operating temperature range (°C): -40 to 125
Common-mode voltage (max) (V): 48
Common-mode voltage (min) (V): -0.3
Input offset (±) (max) (µV): 50
Input offset drift (±) (max) (µV/°C): 0.1
更多
Voltage gain (V/V): 1
CMRR (min) (dB): 120
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 1.7
Digital interface: I2C
Gain error (%): 0.3
Gain error drift (±) (max) (ppm/°C): 30
Number of channels: 1
Resolution (bps): 16
Power measurement accuracy (%): 0.8
Rating: Catalog
Operating temperature range (°C): -40 to 125
Architecture: Voltage FB
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12.6
GBW (typ) (MHz): 50
BW at Acl (MHz): 105
Acl, min spec gain (V/V): 1
Slew rate (typ) (V/µs): 100
Vn at flatband (typ) (nV√Hz): 5.9
Vn at 1 kHz (typ) (nV√Hz): 5.9
Iq per channel (typ) (mA): 0.75
Vos (offset voltage at 25°C) (max) (mV): 0.095
Rail-to-rail: In, Out
Features: Output short-circuit protection, Overload power limit, Shutdown
Rating: Catalog
Operating temperature range (°C): -40 to 125
CMRR (typ) (dB): 120
Input bias current (max) (pA): 730000
Offset drift (typ) (µV/°C): 0.3
Iout (typ) (mA): 30
更多
2nd harmonic (dBc): 129
3rd harmonic (dBc): -138
Frequency of harmonic distortion measurement (MHz): 0.02
Architecture: Voltage FB
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12.6
GBW (typ) (MHz): 50
BW at Acl (MHz): 105
Acl, min spec gain (V/V): 1
Slew rate (typ) (V/µs): 100
Vn at flatband (typ) (nV√Hz): 5.9
Vn at 1 kHz (typ) (nV√Hz): 5.9
Iq per channel (typ) (mA): 0.75
Vos (offset voltage at 25°C) (max) (mV): 0.095
Rail-to-rail: In, Out
Features: Output short-circuit protection, Overload power limit, Shutdown
Rating: Catalog
Operating temperature range (°C): -40 to 125
CMRR (typ) (dB): 120
Input bias current (max) (pA): 730000
Offset drift (typ) (µV/°C): 0.3
Iout (typ) (mA): 30
2nd harmonic (dBc): 129
3rd harmonic (dBc): -138
Frequency of harmonic distortion measurement (MHz): 0.02
