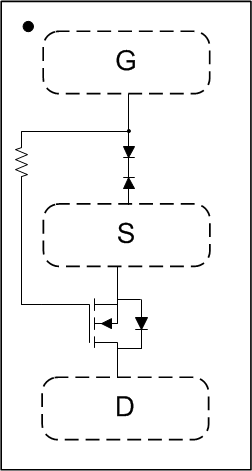

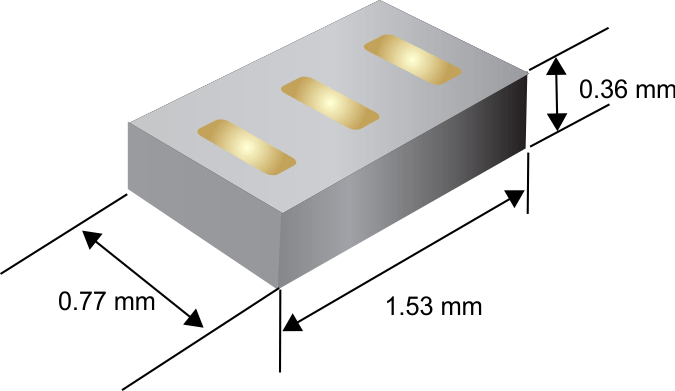

CSD17585F5
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 0.8mm x 1.5mm LGA 封装、具有栅极 ESD 保护的单路、33mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 27
Rds(on) at VGS=4.5 V (max) (mΩ): 33
VGSTH typ (typ) (V): 1.3
QG (typ) (nC): 1.9
QGD (typ) (nC): 0.39
QGS (typ) (nC): 0.53
ID - silicon limited at TC=25°C (A): 5.9
ID - package limited (A): 5.9
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 27
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 33
VGSTH typ (typ) (V): 1.3
QG (typ) (nC): 1.9
QGD (typ) (nC): 0.39
QGS (typ) (nC): 0.53
ID - silicon limited at TC=25°C (A): 5.9
ID - package limited (A): 5.9
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150

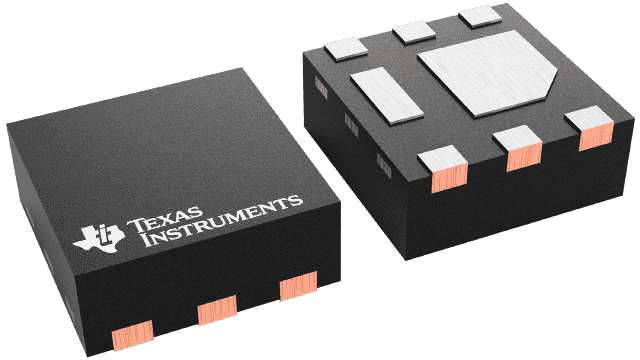

CSD17581Q3A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 3mm x 3mm SON 封装的单路、4.7mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 3.8
Rds(on) at VGS=4.5 V (max) (mΩ): 4.7
VGSTH typ (typ) (V): 1.3
QG (typ) (nC): 20
QGD (typ) (nC): 4
QGS (typ) (nC): 6.9
ID - silicon limited at TC=25°C (A): 101
ID - package limited (A): 60
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 3.8
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 4.7
VGSTH typ (typ) (V): 1.3
QG (typ) (nC): 20
QGD (typ) (nC): 4
QGS (typ) (nC): 6.9
ID - silicon limited at TC=25°C (A): 101
ID - package limited (A): 60
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150

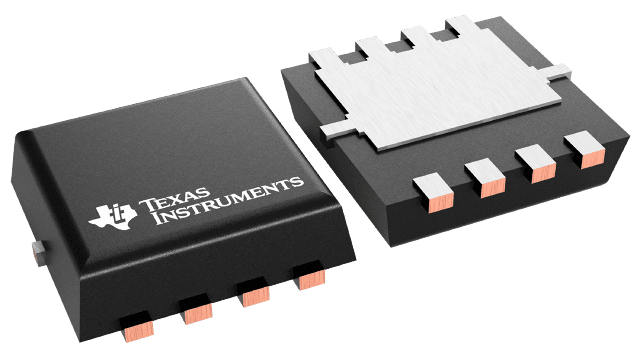

CSD17581Q5A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的单路、4.2mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 3.4
Rds(on) at VGS=4.5 V (max) (mΩ): 4.2
VGSTH typ (typ) (V): 1.3
QG (typ) (nC): 20
QGD (typ) (nC): 4
QGS (typ) (nC): 6.9
ID - silicon limited at TC=25°C (A): 123
ID - package limited (A): 60
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 3.4
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 4.2
VGSTH typ (typ) (V): 1.3
QG (typ) (nC): 20
QGD (typ) (nC): 4
QGS (typ) (nC): 6.9
ID - silicon limited at TC=25°C (A): 123
ID - package limited (A): 60
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD23285F5
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 0.8mm x 1.5mm LGA 封装、具有栅极 ESD 保护的单路、35mΩ、-12V、P 沟道 NexFET™ 功率 MOSFET
VDS (V): -12
VGS (V): -6
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 35
Rds(on) at VGS=2.5 V (max) (mΩ): 47
VGSTH typ (typ) (V): -0.65
QG (typ) (nC): 3.2
QGD (typ) (nC): 0.48
QGS (typ) (nC): 0.66
ID - silicon limited at TC=25°C (A): 3.3
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): -12
VGS (V): -6
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 35
Rds(on) at VGS=2.5 V (max) (mΩ): 47
更多
VGSTH typ (typ) (V): -0.65
QG (typ) (nC): 3.2
QGD (typ) (nC): 0.48
QGS (typ) (nC): 0.66
ID - silicon limited at TC=25°C (A): 3.3
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD25485F5
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 0.8mm x 1.5mm LGA 封装、具有栅极 ESD 保护的单路、42mΩ、-20V、P 沟道 NexFET™ 功率 MOSFET
VDS (V): -20
VGS (V): -12
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 42
Rds(on) at VGS=2.5 V (max) (mΩ): 70
VGSTH typ (typ) (V): -0.95
QG (typ) (nC): 2.7
QGD (typ) (nC): 0.56
QGS (typ) (nC): 0.67
ID - silicon limited at TC=25°C (A): 3.2
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): -20
VGS (V): -12
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 42
Rds(on) at VGS=2.5 V (max) (mΩ): 70
更多
VGSTH typ (typ) (V): -0.95
QG (typ) (nC): 2.7
QGD (typ) (nC): 0.56
QGS (typ) (nC): 0.67
ID - silicon limited at TC=25°C (A): 3.2
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD19538Q2
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 2mm x 2mm SON 封装的单路、59mΩ、100V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 100
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 59
VGSTH typ (typ) (V): 3.2
QG (typ) (nC): 4.3
QGD (typ) (nC): 0.8
QGS (typ) (nC): 1.6
ID - silicon limited at TC=25°C (A): 13.1
ID - package limited (A): 14.4
Logic level: No
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 100
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 59
VGSTH typ (typ) (V): 3.2
更多
QG (typ) (nC): 4.3
QGD (typ) (nC): 0.8
QGS (typ) (nC): 1.6
ID - silicon limited at TC=25°C (A): 13.1
ID - package limited (A): 14.4
Logic level: No
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD19538Q3A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 3mm x 3mm SON 封装的单路、61mΩ、100V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 100
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 61
VGSTH typ (typ) (V): 3.2
QG (typ) (nC): 4.3
QGD (typ) (nC): 0.8
QGS (typ) (nC): 1.6
ID - silicon limited at TC=25°C (A): 13.7
ID - package limited (A): 15
Logic level: No
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 100
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 61
VGSTH typ (typ) (V): 3.2
更多
QG (typ) (nC): 4.3
QGD (typ) (nC): 0.8
QGS (typ) (nC): 1.6
ID - silicon limited at TC=25°C (A): 13.7
ID - package limited (A): 15
Logic level: No
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD18541F5
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 1.5mm x 0.8mm LGA 封装、具有栅极 ESD 保护的单路、65mΩ、60V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 60
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 65
Rds(on) at VGS=4.5 V (max) (mΩ): 75
VGSTH typ (typ) (V): 1.75
QG (typ) (nC): 11
QGD (typ) (nC): 1.6
QGS (typ) (nC): 1.5
ID - silicon limited at TC=25°C (A): 2.2
ID - package limited (A): 2.2
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 60
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 65
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 75
VGSTH typ (typ) (V): 1.75
QG (typ) (nC): 11
QGD (typ) (nC): 1.6
QGS (typ) (nC): 1.5
ID - silicon limited at TC=25°C (A): 2.2
ID - package limited (A): 2.2
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD15380F3
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 0.6mm x 0.7mm LGA 封装、具有栅极 ESD 保护的单路、1460mΩ、20V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 20
VGS (V): 10
Type: N-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 1460
VGSTH typ (typ) (V): 1.1
QG (typ) (nC): 0.216
QGD (typ) (nC): 0.027
QGS (typ) (nC): 0.077
ID - silicon limited at TC=25°C (A): 0.5
ID - package limited (A): 0.5
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 20
VGS (V): 10
Type: N-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 1460
VGSTH typ (typ) (V): 1.1
更多
QG (typ) (nC): 0.216
QGD (typ) (nC): 0.027
QGS (typ) (nC): 0.077
ID - silicon limited at TC=25°C (A): 0.5
ID - package limited (A): 0.5
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD23280F3
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 0.6mm x 0.7mm LGA 封装、具有栅极 ESD 保护的单路、116mΩ、-12V、P 沟道 NexFET™ 功率 MOSFET
VDS (V): -12
VGS (V): -6
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 116
Rds(on) at VGS=2.5 V (max) (mΩ): 165
VGSTH typ (typ) (V): -0.65
QG (typ) (nC): 0.95
QGD (typ) (nC): 0.068
QGS (typ) (nC): 0.3
ID - silicon limited at TC=25°C (A): 1.8
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): -12
VGS (V): -6
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 116
Rds(on) at VGS=2.5 V (max) (mΩ): 165
更多
VGSTH typ (typ) (V): -0.65
QG (typ) (nC): 0.95
QGD (typ) (nC): 0.068
QGS (typ) (nC): 0.3
ID - silicon limited at TC=25°C (A): 1.8
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
