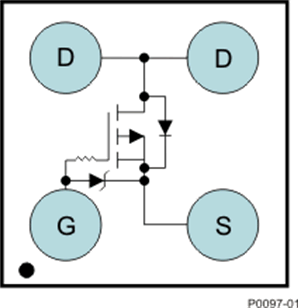

CSD13383F4
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 1mm x 0.6mm LGA 封装、具有栅极 ESD 保护的单路、44mΩ、12V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 12
VGS (V): 10
Type: N-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 44
VGSTH typ (typ) (V): 1
QG (typ) (nC): 2
QGD (typ) (nC): 0.6
QGS (typ) (nC): 0.4
ID - silicon limited at TC=25°C (A): 2.9
ID - package limited (A): 2.9
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 12
VGS (V): 10
Type: N-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 44
VGSTH typ (typ) (V): 1
更多
QG (typ) (nC): 2
QGD (typ) (nC): 0.6
QGS (typ) (nC): 0.4
ID - silicon limited at TC=25°C (A): 2.9
ID - package limited (A): 2.9
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150

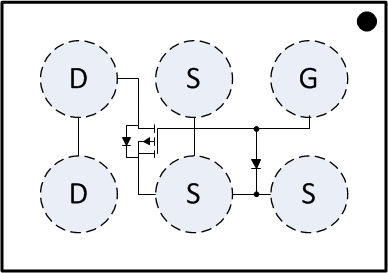

CSD23203W
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 1mm x 1.5mm WLP 封装、具有栅极 ESD 保护的单路、19.4mΩ、-8V、P 沟道 NexFET™ 功率 MOSFET
VDS (V): -8
VGS (V): -6
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 19.4
Rds(on) at VGS=2.5 V (max) (mΩ): 26.5
VGSTH typ (typ) (V): -0.8
QG (typ) (nC): 4.9
QGD (typ) (nC): 0.6
QGS (typ) (nC): 1.3
ID - silicon limited at TC=25°C (A): 3
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): -8
VGS (V): -6
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 19.4
Rds(on) at VGS=2.5 V (max) (mΩ): 26.5
更多
VGSTH typ (typ) (V): -0.8
QG (typ) (nC): 4.9
QGD (typ) (nC): 0.6
QGS (typ) (nC): 1.3
ID - silicon limited at TC=25°C (A): 3
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD83325L
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 LGA 封装、具有栅极 ESD 保护的双路、5.9mΩ、12V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 12
VGS (V): 10
Type: N-channel
Configuration: Dual Common Drain
Rds(on) at VGS=4.5 V (max) (mΩ): 5.9
VGSTH typ (typ) (V): 0.95
QG (typ) (nC): 8.4
QGD (typ) (nC): 1.9
QGS (typ) (nC): 2.2
ID - silicon limited at TC=25°C (A): 8
ID - package limited (A): 8
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 12
VGS (V): 10
Type: N-channel
Configuration: Dual Common Drain
Rds(on) at VGS=4.5 V (max) (mΩ): 5.9
VGSTH typ (typ) (V): 0.95
更多
QG (typ) (nC): 8.4
QGD (typ) (nC): 1.9
QGS (typ) (nC): 2.2
ID - silicon limited at TC=25°C (A): 8
ID - package limited (A): 8
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150

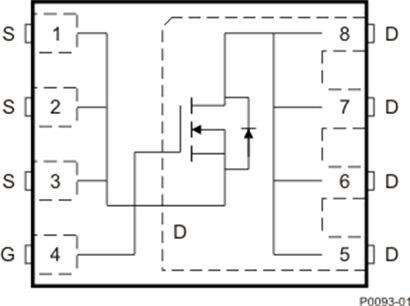

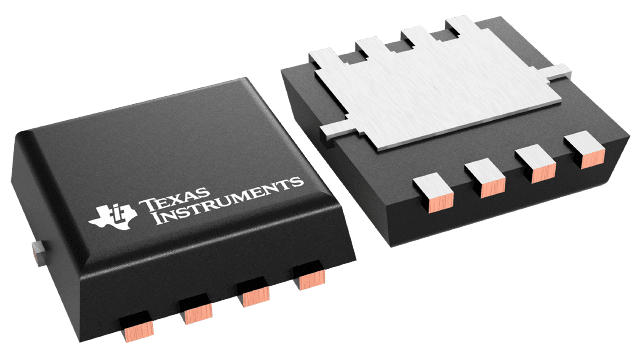

CSD17578Q3A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 3mm x 3mm SON 封装的单路、9.4mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 7.3
Rds(on) at VGS=4.5 V (max) (mΩ): 9.4
VGSTH typ (typ) (V): 1.5
QG (typ) (nC): 7.9
QGD (typ) (nC): 1.7
QGS (typ) (nC): 3.3
ID - silicon limited at TC=25°C (A): 54
ID - package limited (A): 20
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 7.3
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 9.4
VGSTH typ (typ) (V): 1.5
QG (typ) (nC): 7.9
QGD (typ) (nC): 1.7
QGS (typ) (nC): 3.3
ID - silicon limited at TC=25°C (A): 54
ID - package limited (A): 20
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD17579Q3A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 3mm x 3mm SON 封装的单路、14.2mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 10.2
Rds(on) at VGS=4.5 V (max) (mΩ): 14.2
VGSTH typ (typ) (V): 1.5
QG (typ) (nC): 5.3
QGD (typ) (nC): 1.2
QGS (typ) (nC): 2.2
ID - silicon limited at TC=25°C (A): 39
ID - package limited (A): 20
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 10.2
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 14.2
VGSTH typ (typ) (V): 1.5
QG (typ) (nC): 5.3
QGD (typ) (nC): 1.2
QGS (typ) (nC): 2.2
ID - silicon limited at TC=25°C (A): 39
ID - package limited (A): 20
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD23202W10
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 1mm x 1mm WLP 封装、具有栅极 ESD 保护的单路、53mΩ、-12V、P 沟道 NexFET™ 功率 MOSFET
VDS (V): -12
VGS (V): -6
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 53
Rds(on) at VGS=2.5 V (max) (mΩ): 66
VGSTH typ (typ) (V): -0.6
QG (typ) (nC): 2.9
QGD (typ) (nC): 0.28
QGS (typ) (nC): 0.55
ID - silicon limited at TC=25°C (A): 2.2
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): -12
VGS (V): -6
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 53
Rds(on) at VGS=2.5 V (max) (mΩ): 66
更多
VGSTH typ (typ) (V): -0.6
QG (typ) (nC): 2.9
QGD (typ) (nC): 0.28
QGS (typ) (nC): 0.55
ID - silicon limited at TC=25°C (A): 2.2
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD16570Q5B
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的单路、0.82mΩ、25V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 25
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 0.59
Rds(on) at VGS=4.5 V (max) (mΩ): 0.82
VGSTH typ (typ) (V): 1.5
QG (typ) (nC): 95
QGD (typ) (nC): 31
QGS (typ) (nC): 29
ID - silicon limited at TC=25°C (A): 456
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 25
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 0.59
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 0.82
VGSTH typ (typ) (V): 1.5
QG (typ) (nC): 95
QGD (typ) (nC): 31
QGS (typ) (nC): 29
ID - silicon limited at TC=25°C (A): 456
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD17577Q3A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 3mm x 3mm SON 封装的单路、6.4mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 4.8
Rds(on) at VGS=4.5 V (max) (mΩ): 6.4
VGSTH typ (typ) (V): 1.4
QG (typ) (nC): 13
QGD (typ) (nC): 2.8
QGS (typ) (nC): 5.1
ID - silicon limited at TC=25°C (A): 83
ID - package limited (A): 35
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 4.8
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 6.4
VGSTH typ (typ) (V): 1.4
QG (typ) (nC): 13
QGD (typ) (nC): 2.8
QGS (typ) (nC): 5.1
ID - silicon limited at TC=25°C (A): 83
ID - package limited (A): 35
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD17577Q5A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的单路、5.8mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 4.2
Rds(on) at VGS=4.5 V (max) (mΩ): 5.8
VGSTH typ (typ) (V): 1.4
QG (typ) (nC): 13
QGD (typ) (nC): 2.8
QGS (typ) (nC): 5.1
ID - silicon limited at TC=25°C (A): 83
ID - package limited (A): 60
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 4.2
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 5.8
VGSTH typ (typ) (V): 1.4
QG (typ) (nC): 13
QGD (typ) (nC): 2.8
QGS (typ) (nC): 5.1
ID - silicon limited at TC=25°C (A): 83
ID - package limited (A): 60
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150

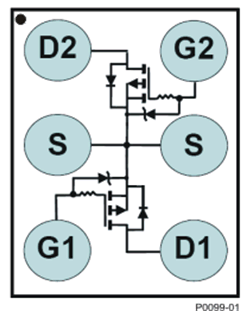

CSD75208W1015
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 1mm x 1.5mm WLP 封装、具有栅极 ESD 保护的双通道共源极、108mΩ、-20V、P 沟道 NexFET™ 功率 MOSFET
VDS (V): -20
VGS (V): -6
Type: P-channel
Configuration: Dual Common Source
Rds(on) at VGS=4.5 V (max) (mΩ): 108
Rds(on) at VGS=2.5 V (max) (mΩ): 150
VGSTH typ (typ) (V): -0.8
QG (typ) (nC): 1.9
QGD (typ) (nC): 0.23
QGS (typ) (nC): 0.48
ID - silicon limited at TC=25°C (A): 1.6
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): -20
VGS (V): -6
Type: P-channel
Configuration: Dual Common Source
Rds(on) at VGS=4.5 V (max) (mΩ): 108
Rds(on) at VGS=2.5 V (max) (mΩ): 150
更多
VGSTH typ (typ) (V): -0.8
QG (typ) (nC): 1.9
QGD (typ) (nC): 0.23
QGS (typ) (nC): 0.48
ID - silicon limited at TC=25°C (A): 1.6
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
