Package name: SOD323
Peak pulse power (8/20 μs) (max) (W): 159
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 1
IO capacitance (typ) (pF): 3
IEC 61000-4-2 contact (±V): 30000
IEC 61000-4-5 (A): 3.5
Features: ESD Protection
Clamping voltage (V): 40
Dynamic resistance (typ): 0.45
Interface type: LIN
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -50 to 150
Package name: SOD323
Peak pulse power (8/20 μs) (max) (W): 159
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
更多
Number of channels: 1
IO capacitance (typ) (pF): 3
IEC 61000-4-2 contact (±V): 30000
IEC 61000-4-5 (A): 3.5
Features: ESD Protection
Clamping voltage (V): 40
Dynamic resistance (typ): 0.45
Interface type: LIN
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -50 to 150

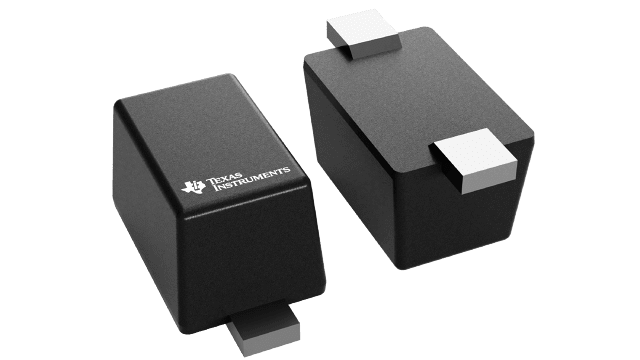

Package name: DFN1006
Peak pulse power (8/20 μs) (max) (W): 65
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 1
IO capacitance (typ) (pF): 1.1
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 1.8
Features: ESD Protection
Clamping voltage (V): 36.3
Dynamic resistance (typ): 0.53
Interface type: GPIO, LIN
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -55 to 150
Package name: DFN1006
Peak pulse power (8/20 μs) (max) (W): 65
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
更多
Number of channels: 1
IO capacitance (typ) (pF): 1.1
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 1.8
Features: ESD Protection
Clamping voltage (V): 36.3
Dynamic resistance (typ): 0.53
Interface type: GPIO, LIN
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -55 to 150
ESD751-Q1
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 LIN 和车载网络的汽车 1.6pF、±24V、±22kV ESD 保护二极管

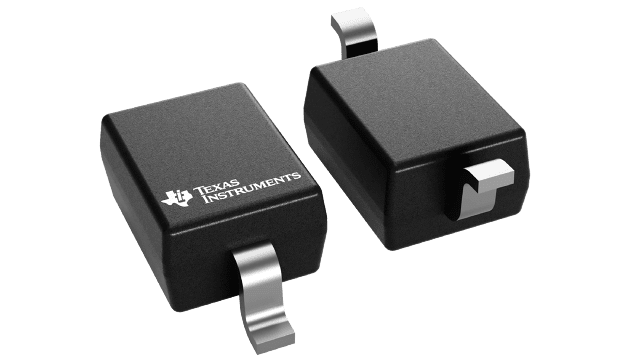

Package name: SOD523
Peak pulse power (8/20 μs) (max) (W): 102
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 1
IO capacitance (typ) (pF): 1.6
IEC 61000-4-2 contact (±V): 22000
IEC 61000-4-5 (A): 2.8
Features: ESD Protection
Clamping voltage (V): 41.5
Dynamic resistance (typ): 0.6
Interface type: LIN
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Automotive
Operating temperature range (°C): -55 to 150
Package name: SOD523
Peak pulse power (8/20 μs) (max) (W): 102
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
更多
Number of channels: 1
IO capacitance (typ) (pF): 1.6
IEC 61000-4-2 contact (±V): 22000
IEC 61000-4-5 (A): 2.8
Features: ESD Protection
Clamping voltage (V): 41.5
Dynamic resistance (typ): 0.6
Interface type: LIN
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Automotive
Operating temperature range (°C): -55 to 150
ESD2CANFD24
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 具有 8/20µS 浪涌的双通道 2.5pF、±24V、±25kV ESD 保护二极管

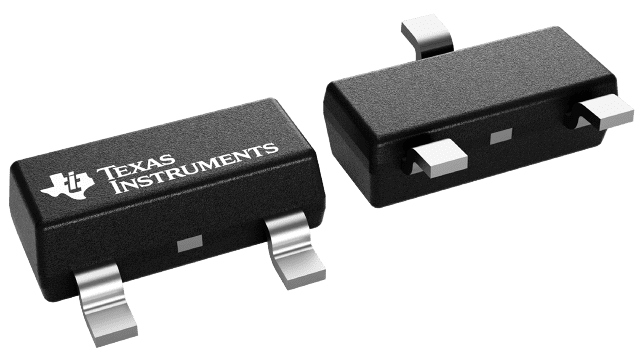

Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 133
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 2
IO capacitance (typ) (pF): 2.5
IEC 61000-4-2 contact (±V): 25000
IEC 61000-4-5 (A): 3.5
Features: ESD Protection
Clamping voltage (V): 36
Dynamic resistance (typ): 0.45
Interface type: CAN, GPIO, USB 2.0
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -50 to 150
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 133
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
更多
Number of channels: 2
IO capacitance (typ) (pF): 2.5
IEC 61000-4-2 contact (±V): 25000
IEC 61000-4-5 (A): 3.5
Features: ESD Protection
Clamping voltage (V): 36
Dynamic resistance (typ): 0.45
Interface type: CAN, GPIO, USB 2.0
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -50 to 150
ESD2CANFD24-Q1
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: Automotive, dual, 2.5pF ±24-V, 25-kV ESD protection diode for in-vehicle networks
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 133
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 2
IO capacitance (typ) (pF): 2.5
IEC 61000-4-2 contact (±V): 25000
IEC 61000-4-5 (A): 3.5
Features: ESD Protection
Clamping voltage (V): 36
Dynamic resistance (typ): 0.45
Interface type: CAN, GPIO
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Automotive
Operating temperature range (°C): -55 to 150
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 133
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
更多
Number of channels: 2
IO capacitance (typ) (pF): 2.5
IEC 61000-4-2 contact (±V): 25000
IEC 61000-4-5 (A): 3.5
Features: ESD Protection
Clamping voltage (V): 36
Dynamic resistance (typ): 0.45
Interface type: CAN, GPIO
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Automotive
Operating temperature range (°C): -55 to 150
Package name: SOD523
Peak pulse power (8/20 μs) (max) (W): 102
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 1
IO capacitance (typ) (pF): 1.6
IEC 61000-4-2 contact (±V): 22000
IEC 61000-4-5 (A): 2.8
Features: ESD Protection
Clamping voltage (V): 36.5
Dynamic resistance (typ): 0.6
Interface type: LIN
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -55 to 150
Package name: SOD523
Peak pulse power (8/20 μs) (max) (W): 102
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
更多
Number of channels: 1
IO capacitance (typ) (pF): 1.6
IEC 61000-4-2 contact (±V): 22000
IEC 61000-4-5 (A): 2.8
Features: ESD Protection
Clamping voltage (V): 36.5
Dynamic resistance (typ): 0.6
Interface type: LIN
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -55 to 150
ESD2CANXL24-Q1
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于车载网络的汽车类双路 1.75pF ±24V ±20kV ESD 保护二极管
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 90
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 2
IO capacitance (typ) (pF): 1.7
IEC 61000-4-2 contact (±V): 20000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 38
Dynamic resistance (typ): 0.57
Interface type: CAN, GPIO
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Automotive
Operating temperature range (°C): -55 to 150
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 90
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 2
更多
IO capacitance (typ) (pF): 1.7
IEC 61000-4-2 contact (±V): 20000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 38
Dynamic resistance (typ): 0.57
Interface type: CAN, GPIO
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Automotive
Operating temperature range (°C): -55 to 150
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 90
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 2
IO capacitance (typ) (pF): 1.7
IEC 61000-4-2 contact (±V): 20000
IEC 61000-4-5 (A): 2.5
Features: ESD Protection
Clamping voltage (V): 38
Dynamic resistance (typ): 0.57
Interface type: CAN, GPIO, RS-485/432/422/232, USB 2.0
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -55 to 150
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 90
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
更多
Number of channels: 2
IO capacitance (typ) (pF): 1.7
IEC 61000-4-2 contact (±V): 20000
IEC 61000-4-5 (A): 2.5
Features: ESD Protection
Clamping voltage (V): 38
Dynamic resistance (typ): 0.57
Interface type: CAN, GPIO, RS-485/432/422/232, USB 2.0
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -55 to 150
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 2000
IEC 61000-4-5 (A): 41
Vrwm (V): 36
Breakdown voltage (min) (V): 37.8
Bi-/uni-directional: Uni-Directional
Number of channels: 1
IO capacitance (typ) (pF): 50
Clamping voltage (V): 57
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 2000
IEC 61000-4-5 (A): 41
Vrwm (V): 36
Breakdown voltage (min) (V): 37.8
Bi-/uni-directional: Uni-Directional
Number of channels: 1
IO capacitance (typ) (pF): 50
Clamping voltage (V): 57
Package name: SC70-3, SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 210
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 2
IO capacitance (typ) (pF): 3
IEC 61000-4-2 contact (±V): 30000
IEC 61000-4-5 (A): 5.7
Clamping voltage (V): 35
Dynamic resistance (typ): 0.35
Interface type: CAN, GPIO
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Automotive
Operating temperature range (°C): -55 to 150
Package name: SC70-3, SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 210
Vrwm (V): 24
Bi-/uni-directional: Bi-directional
Number of channels: 2
更多
IO capacitance (typ) (pF): 3
IEC 61000-4-2 contact (±V): 30000
IEC 61000-4-5 (A): 5.7
Clamping voltage (V): 35
Dynamic resistance (typ): 0.35
Interface type: CAN, GPIO
Breakdown voltage (min) (V): 25.5
IO leakage current (max) (nA): 50
Rating: Automotive
Operating temperature range (°C): -55 to 150
