Package name: UQFN
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 1.6
IEC 61000-4-2 contact (±V): 8000
Clamping voltage (V): 20
Interface type: USB 2.0
Breakdown voltage (min) (V): 6
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: UQFN
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 1.6
IEC 61000-4-2 contact (±V): 8000
Clamping voltage (V): 20
Interface type: USB 2.0
Breakdown voltage (min) (V): 6
更多
Rating: Catalog
Operating temperature range (°C): -40 to 85
TPD2E001
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 2.0 且具有 1nA 最大漏电流和 VCC 引脚的双路 1.5pF、5.5V、±8kV ESD 保护二极管
Package name: SOT-23, SOT-5X3, USON, WSON
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 8000
Clamping voltage (V): 16
Dynamic resistance (typ): 1.2
Interface type: Ethernet, LVDS, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 1
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: SOT-23, SOT-5X3, USON, WSON
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 1.5
更多
IEC 61000-4-2 contact (±V): 8000
Clamping voltage (V): 16
Dynamic resistance (typ): 1.2
Interface type: Ethernet, LVDS, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 1
Rating: Catalog
Operating temperature range (°C): -40 to 85
TPD3E001
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 2.0 且具有 1nA 最大泄漏电流和 VCC 引脚的 3 通道 1.5pF、5.5V、±8kV ESD 保护二极管
Package name: SOT-5X3, USON, WSON
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 3
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5.5
Clamping voltage (V): 25
Dynamic resistance (typ): 1.2
Interface type: USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 1
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: SOT-5X3, USON, WSON
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 3
更多
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5.5
Clamping voltage (V): 25
Dynamic resistance (typ): 1.2
Interface type: USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 1
Rating: Catalog
Operating temperature range (°C): -40 to 85

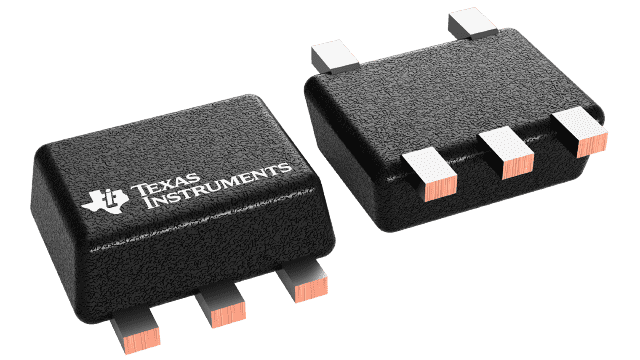

Package name: SOT-5X3
Peak pulse power (8/20 μs) (max) (W): 25
Vrwm (V): 5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 11
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 30
Dynamic resistance (typ): 2
Interface type: GPIO, General purpose
Breakdown voltage (min) (V): 6.1
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: SOT-5X3
Peak pulse power (8/20 μs) (max) (W): 25
Vrwm (V): 5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
更多
IO capacitance (typ) (pF): 11
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 30
Dynamic resistance (typ): 2
Interface type: GPIO, General purpose
Breakdown voltage (min) (V): 6.1
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
TPD4E001
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 2.0 且具有 1nA 最大漏电流和 VCC 引脚的四路 1.5pF、5.5V、±8kV ESD 保护二极管

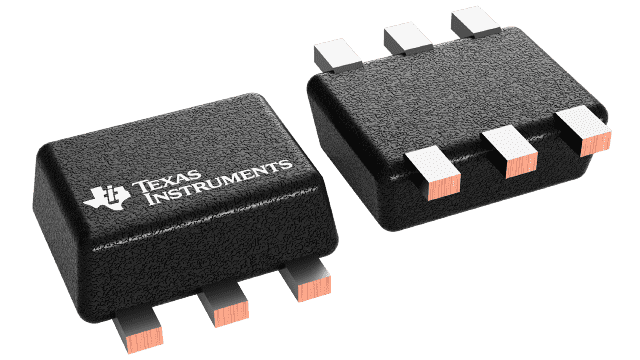

Package name: SC70-6, SOT-23-6, SOT-5X3, USON, WSON
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5.5
Clamping voltage (V): 25
Interface type: Ethernet, LVDS, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 1
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: SC70-6, SOT-23-6, SOT-5X3, USON, WSON
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 1.5
更多
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5.5
Clamping voltage (V): 25
Interface type: Ethernet, LVDS, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 1
Rating: Catalog
Operating temperature range (°C): -40 to 85

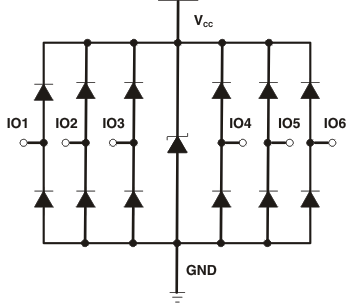

TPD6E001
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 2.0 且具有 1nA 最大漏电流和 VCC 引脚的 6 通道 1.5pF、5.5V、±8kV ESD 保护二极管
Package name: UQFN, WQFN
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 8000
Features: ESD Protection
Clamping voltage (V): 15
Interface type: LVDS, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 1
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: UQFN, WQFN
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 1.5
更多
IEC 61000-4-2 contact (±V): 8000
Features: ESD Protection
Clamping voltage (V): 15
Interface type: LVDS, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 1
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: CDIP, LCCC
Rating: Space
Operating temperature range (°C): -55 to 125
Package name: CDIP, LCCC
Rating: Space
Operating temperature range (°C): -55 to 125

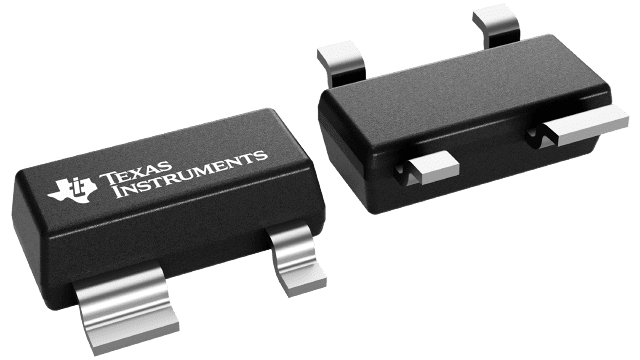

Package name: SOT-23
Peak pulse power (8/20 μs) (max) (W): 60
Vrwm (V): 6
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 35
IEC 61000-4-5 (A): 3
Interface type: USB 2.0
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 1000
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: SOT-23
Peak pulse power (8/20 μs) (max) (W): 60
Vrwm (V): 6
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 35
IEC 61000-4-5 (A): 3
Interface type: USB 2.0
更多
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 1000
Rating: Catalog
Operating temperature range (°C): -40 to 85

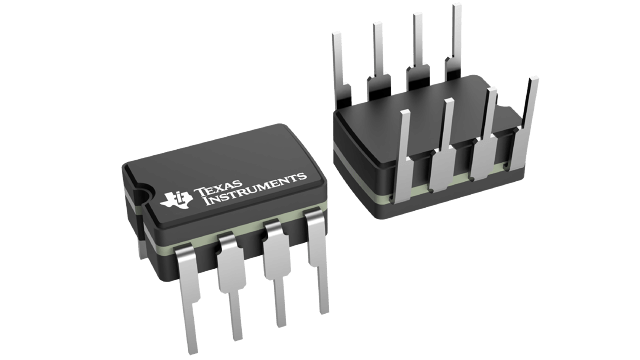

Package name: PDIP, TSSOP
Peak pulse power (8/20 μs) (max) (W): 60
Vrwm (V): 6
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 35
IEC 61000-4-5 (A): 3
Interface type: USB 2.0
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 1000
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: PDIP, TSSOP
Peak pulse power (8/20 μs) (max) (W): 60
Vrwm (V): 6
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 35
IEC 61000-4-5 (A): 3
Interface type: USB 2.0
更多
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 1000
Rating: Catalog
Operating temperature range (°C): -40 to 85
Peak pulse power (8/20 μs) (max) (W): 60
Vrwm (V): 6
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 35
IEC 61000-4-5 (A): 3
Interface type: USB 2.0
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 1000
Rating: Catalog
Operating temperature range (°C): 0 to 70
Peak pulse power (8/20 μs) (max) (W): 60
Vrwm (V): 6
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 35
IEC 61000-4-5 (A): 3
Interface type: USB 2.0
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 1000
更多
Rating: Catalog
Operating temperature range (°C): 0 to 70
