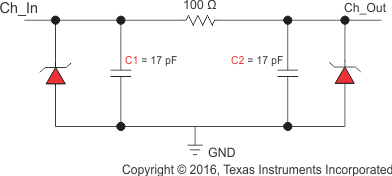

TPD6F002
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 SIM 卡且具有 100MHz -3dB 性能的 6 通道 5.5V、±20kV ESD 保护 & EMI 滤波器
Package name: WSON
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 34
IEC 61000-4-2 contact (±V): 20000
Features: EMI Filter
Clamping voltage (V): 15
Interface type: LCD Display
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 20
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: WSON
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 34
IEC 61000-4-2 contact (±V): 20000
Features: EMI Filter
更多
Clamping voltage (V): 15
Interface type: LCD Display
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 20
Rating: Catalog
Operating temperature range (°C): -40 to 85

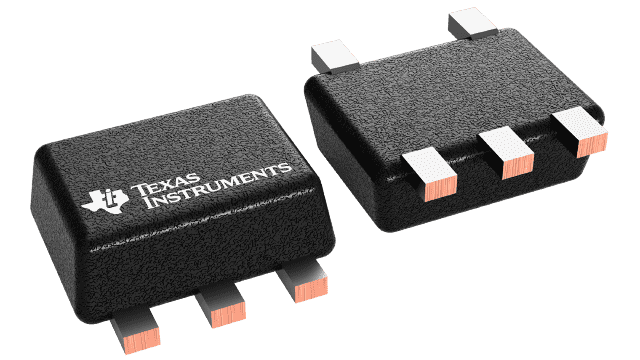

TPD2E001-Q1
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 2.0 且具有 VCC 引脚的汽车类双通道 1.5pF、5.5V、±8kV ESD 保护二极管
Package name: SOT-5X3
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 8000
Clamping voltage (V): 16
Dynamic resistance (typ): 1.2
Interface type: Ethernet, General purpose, LVDS, Memory/SIM Card, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 1
Rating: Automotive
Operating temperature range (°C): -40 to 85
Package name: SOT-5X3
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 1.5
更多
IEC 61000-4-2 contact (±V): 8000
Clamping voltage (V): 16
Dynamic resistance (typ): 1.2
Interface type: Ethernet, General purpose, LVDS, Memory/SIM Card, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 1
Rating: Automotive
Operating temperature range (°C): -40 to 85
TPD2S017
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 具有低钳位和 EMI 滤波功能的 2 通道 5.5V、1pF、±11kV ESD 保护二极管
Package name: SOT-23-6
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 1
IEC 61000-4-2 contact (±V): 11000
IEC 61000-4-5 (A): 6
Clamping voltage (V): 14
Dynamic resistance (typ): 0.8
Interface type: LVDS, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: SOT-23-6
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 1
IEC 61000-4-2 contact (±V): 11000
更多
IEC 61000-4-5 (A): 6
Clamping voltage (V): 14
Dynamic resistance (typ): 0.8
Interface type: LVDS, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85

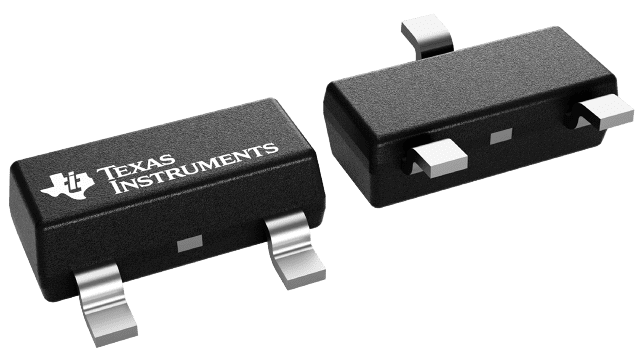

Package name: SOT-23-3, SOT-9X3
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 0.7
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5
Clamping voltage (V): 8
Dynamic resistance (typ): 1
Interface type: LVDS, SATA/PCIe
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: SOT-23-3, SOT-9X3
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
更多
IO capacitance (typ) (pF): 0.7
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5
Clamping voltage (V): 8
Dynamic resistance (typ): 1
Interface type: LVDS, SATA/PCIe
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: LGA (PicoStar), SC70-3
Peak pulse power (8/20 μs) (max) (W): 0.27
Vrwm (V): 13
Bi-/uni-directional: Bi-directional
Number of channels: 2
IO capacitance (typ) (pF): 10
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 4.5
Clamping voltage (V): 20
Dynamic resistance (typ): 3.5
Interface type: Audio
Breakdown voltage (min) (V): 14
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: LGA (PicoStar), SC70-3
Peak pulse power (8/20 μs) (max) (W): 0.27
Vrwm (V): 13
Bi-/uni-directional: Bi-directional
Number of channels: 2
更多
IO capacitance (typ) (pF): 10
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 4.5
Clamping voltage (V): 20
Dynamic resistance (typ): 3.5
Interface type: Audio
Breakdown voltage (min) (V): 14
IO leakage current (max) (nA): 50
Rating: Catalog
Operating temperature range (°C): -40 to 85
TPD4S010
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 3.0 且具有 5A 8/20us 浪涌额定值的四通道 0.8pF、5.5V、±8kV ESD 保护二极管
Package name: DFN2510
Peak pulse power (8/20 μs) (max) (W): 25
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 20
Dynamic resistance (typ): 1.1
Interface type: Ethernet, HDMI 1.4/1.3, LVDS, SATA/PCIe, USB 2.0
Breakdown voltage (min) (V): 9
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: DFN2510
Peak pulse power (8/20 μs) (max) (W): 25
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
更多
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 20
Dynamic resistance (typ): 1.1
Interface type: Ethernet, HDMI 1.4/1.3, LVDS, SATA/PCIe, USB 2.0
Breakdown voltage (min) (V): 9
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
TPD4S012
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 接口且具有 15V 耐受 Vbus 的四通道 0.8pF、5.5V、±10kV ESD 保护二极管
Package name: DFN2510
Peak pulse power (8/20 μs) (max) (W): 60
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 10000
IEC 61000-4-5 (A): 3
Features: ESD Protection
Clamping voltage (V): 8
Dynamic resistance (typ): 1
Interface type: USB 2.0
Breakdown voltage (min) (V): 20
IO leakage current (max) (nA): 500
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: DFN2510
Peak pulse power (8/20 μs) (max) (W): 60
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
更多
Number of channels: 4
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 10000
IEC 61000-4-5 (A): 3
Features: ESD Protection
Clamping voltage (V): 8
Dynamic resistance (typ): 1
Interface type: USB 2.0
Breakdown voltage (min) (V): 20
IO leakage current (max) (nA): 500
Rating: Catalog
Operating temperature range (°C): -40 to 85

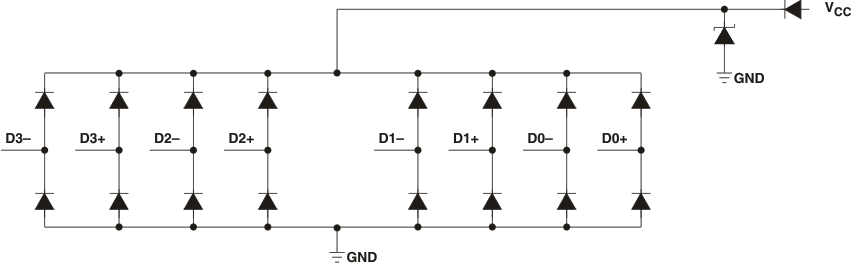

TPD8S009
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 HDMI 和 DisplayPort 的 8 通道 0.8pF、5.5V、±8kV ESD 保护二极管
Package name: WSON
Peak pulse power (8/20 μs) (max) (W): 25
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 8
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 2.5
Features: ESD Protection
Clamping voltage (V): 20
Dynamic resistance (typ): 1.1
Interface type: DVI, HDMI 1.4
Breakdown voltage (min) (V): 9
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: WSON
Peak pulse power (8/20 μs) (max) (W): 25
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
更多
Number of channels: 8
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 2.5
Features: ESD Protection
Clamping voltage (V): 20
Dynamic resistance (typ): 1.1
Interface type: DVI, HDMI 1.4
Breakdown voltage (min) (V): 9
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
TPD4S009
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于高速接口且具有 VCC 引脚的四通道 0.8pF、5.5V、±8kV ESD 保护二极管
Package name: SC70-6, SOT-23-6, USON, VSSOP
Peak pulse power (8/20 μs) (max) (W): 25
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 20
Dynamic resistance (typ): 1.1
Interface type: Ethernet, HDMI 1.4/1.3, LVDS, SATA/PCIe, USB 2.0
Breakdown voltage (min) (V): 9
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: SC70-6, SOT-23-6, USON, VSSOP
Peak pulse power (8/20 μs) (max) (W): 25
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
更多
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 20
Dynamic resistance (typ): 1.1
Interface type: Ethernet, HDMI 1.4/1.3, LVDS, SATA/PCIe, USB 2.0
Breakdown voltage (min) (V): 9
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85

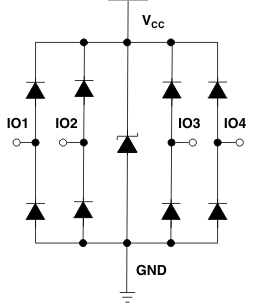

TPD4E004
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于高速接口且具有 VCC 引脚的四通道 1.6pF、5.5V、±8kV ESD 保护二极管
Package name: USON
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 1.6
IEC 61000-4-2 contact (±V): 8000
Clamping voltage (V): 14
Interface type: Ethernet, USB 2.0
Breakdown voltage (min) (V): 6
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: USON
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 1.6
IEC 61000-4-2 contact (±V): 8000
Clamping voltage (V): 14
Interface type: Ethernet, USB 2.0
Breakdown voltage (min) (V): 6
更多
Rating: Catalog
Operating temperature range (°C): -40 to 85
