TPD1E10B06
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 采用 0402 和 SOD-523 封装的 12pF、±5.5V、±30kV ESD 保护二极管

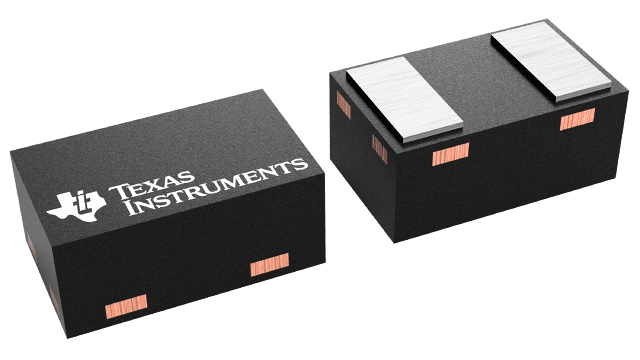

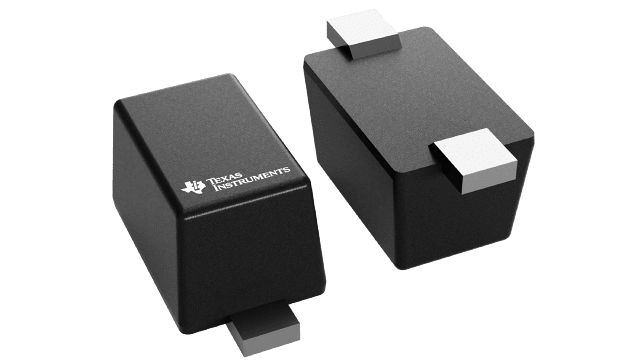

Package name: DFN1006, SOD523
Peak pulse power (8/20 μs) (max) (W): 90
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 1
IO capacitance (typ) (pF): 12
IEC 61000-4-2 contact (±V): 30000
IEC 61000-4-5 (A): 6
Clamping voltage (V): 10
Dynamic resistance (typ): 0.4
Interface type: Audio, General purpose
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN1006, SOD523
Peak pulse power (8/20 μs) (max) (W): 90
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 1
更多
IO capacitance (typ) (pF): 12
IEC 61000-4-2 contact (±V): 30000
IEC 61000-4-5 (A): 6
Clamping voltage (V): 10
Dynamic resistance (typ): 0.4
Interface type: Audio, General purpose
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
TPD1E10B09
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 采用 0402 封装、具有 6A 8/20us 浪涌的 10pF、±9V、±20kV ESD 保护二极管
Package name: DFN1006
Peak pulse power (8/20 μs) (max) (W): 90
Vrwm (V): 9
Bi-/uni-directional: Bi-directional
Number of channels: 1
IO capacitance (typ) (pF): 10
IEC 61000-4-2 contact (±V): 20000
IEC 61000-4-5 (A): 4.5
Clamping voltage (V): 13
Dynamic resistance (typ): 0.5
Interface type: Audio, General purpose
Breakdown voltage (min) (V): 9.5
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN1006
Peak pulse power (8/20 μs) (max) (W): 90
Vrwm (V): 9
Bi-/uni-directional: Bi-directional
Number of channels: 1
更多
IO capacitance (typ) (pF): 10
IEC 61000-4-2 contact (±V): 20000
IEC 61000-4-5 (A): 4.5
Clamping voltage (V): 13
Dynamic resistance (typ): 0.5
Interface type: Audio, General purpose
Breakdown voltage (min) (V): 9.5
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
TPD3F303
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 SIM 卡且具有 300MHz -3dB 性能的 3 通道 5.5V、±15kV ESD 保护和 EMI 滤波器
Package name: USON, WSON
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 3
IO capacitance (typ) (pF): 20
IEC 61000-4-2 contact (±V): 15000
Features: EMI Filter
Clamping voltage (V): 10
Interface type: Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: USON, WSON
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 3
IO capacitance (typ) (pF): 20
IEC 61000-4-2 contact (±V): 15000
Features: EMI Filter
更多
Clamping voltage (V): 10
Interface type: Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
TPD2EUSB30A
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 3.0 且具有 5A 浪涌额定值的双通道 0.7pF、3.6V、±8kV ESD 保护二极管
Package name: SOT-9X3
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 3.6
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 0.7
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5
Clamping voltage (V): 8
Dynamic resistance (typ): 0.6
Interface type: Ethernet, LVDS, USB 2.0, USB 3.0
Breakdown voltage (min) (V): 4.5
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: SOT-9X3
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 3.6
Bi-/uni-directional: Uni-Directional
Number of channels: 2
更多
IO capacitance (typ) (pF): 0.7
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5
Clamping voltage (V): 8
Dynamic resistance (typ): 0.6
Interface type: Ethernet, LVDS, USB 2.0, USB 3.0
Breakdown voltage (min) (V): 4.5
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85

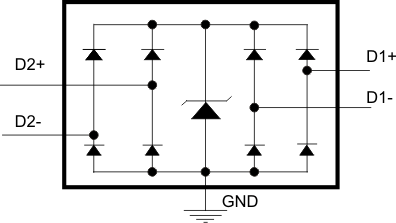

TPD4EUSB30
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 3.0 且具有 5A 8/20us 浪涌额定值的四通道 0.8pF、5.5V、±8kV ESD 保护二极管
Package name: USON
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5
Features: ESD Protection
Clamping voltage (V): 8
Dynamic resistance (typ): 0.6
Interface type: USB 3.0
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: USON
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
更多
Number of channels: 4
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5
Features: ESD Protection
Clamping voltage (V): 8
Dynamic resistance (typ): 0.6
Interface type: USB 3.0
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: WSON
Peak pulse power (8/20 μs) (max) (W): 55
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 8
IO capacitance (typ) (pF): 9
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 3.5
Clamping voltage (V): 10
Dynamic resistance (typ): 1
Interface type: GPIO, Keypad
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: WSON
Peak pulse power (8/20 μs) (max) (W): 55
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 8
更多
IO capacitance (typ) (pF): 9
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 3.5
Clamping voltage (V): 10
Dynamic resistance (typ): 1
Interface type: GPIO, Keypad
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85

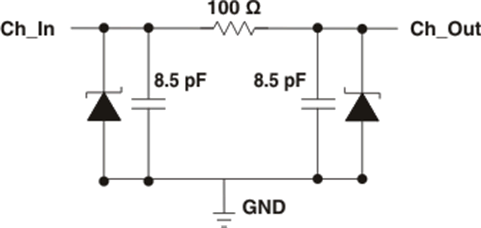

TPD4F003
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 具有 200MHz -3dB 的 4 通道 5.5V、±12kV ESD 保护和 EMI 滤波器
Package name: WSON
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 8.5
IEC 61000-4-2 contact (±V): 12000
Features: EMI Filter
Clamping voltage (V): 15
Interface type: LCD Display, Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: WSON
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 8.5
IEC 61000-4-2 contact (±V): 12000
Features: EMI Filter
更多
Clamping voltage (V): 15
Interface type: LCD Display, Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 85
TPD6F003
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 具有 200MHz -3dB 的 6 通道 5.5V、±12kV ESD 保护 & EMI 滤波器
Package name: WSON
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 19
IEC 61000-4-2 contact (±V): 12000
Features: EMI Filter
Clamping voltage (V): 15
Interface type: LCD Display, Memory/SIM Card
Breakdown voltage (min) (V): 6
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: WSON
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 19
IEC 61000-4-2 contact (±V): 12000
Features: EMI Filter
Clamping voltage (V): 15
更多
Interface type: LCD Display, Memory/SIM Card
Breakdown voltage (min) (V): 6
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: WSON
Bi-/uni-directional: Uni-Directional
Number of channels: 8
IO capacitance (typ) (pF): 17
IEC 61000-4-2 contact (±V): 12000
Clamping voltage (V): 15
Interface type: LCD Display, Memory/SIM Card
Breakdown voltage (min) (V): 6
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: WSON
Bi-/uni-directional: Uni-Directional
Number of channels: 8
IO capacitance (typ) (pF): 17
IEC 61000-4-2 contact (±V): 12000
Clamping voltage (V): 15
Interface type: LCD Display, Memory/SIM Card
Breakdown voltage (min) (V): 6
Rating: Catalog
Operating temperature range (°C): -40 to 85

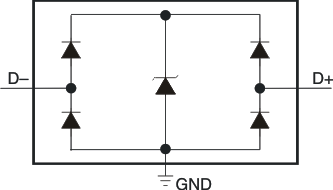

TPD2EUSB30
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 3.0 且具有 5A 浪涌额定值的双通道 0.7pF、5.5V ±8kV ESD 保护二极管
Package name: SOT-9X3
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 0.7
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5
Clamping voltage (V): 8
Dynamic resistance (typ): 0.6
Interface type: USB 3.0
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
Package name: SOT-9X3
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
更多
IO capacitance (typ) (pF): 0.7
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5
Clamping voltage (V): 8
Dynamic resistance (typ): 0.6
Interface type: USB 3.0
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 85
