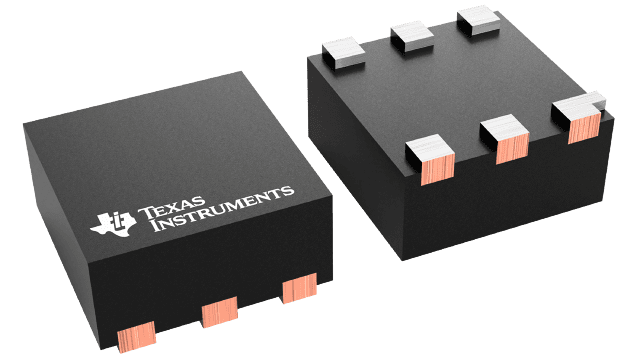

TPD6E05U06
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB、HDMI 和高速接口的 6 通道 0.5pF、5.5V、±12kV ESD 保护二极管
Package name: UQFN
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 0.5
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 10
Dynamic resistance (typ): 0.8
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: UQFN
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 0.5
更多
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 10
Dynamic resistance (typ): 0.8
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
TPD2E2U06
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 2.0 且具有 5.5A 8/20us 浪涌等级的双通道 1.5pF、5.5V、±25kV ESD 保护二极管
Package name: SC70-3, SOT-5X3
Peak pulse power (8/20 μs) (max) (W): 85
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 25000
IEC 61000-4-5 (A): 5.5
Clamping voltage (V): 9.7
Dynamic resistance (typ): 0.5
Interface type: Ethernet, General purpose, LVDS, USB 2.0
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: SC70-3, SOT-5X3
Peak pulse power (8/20 μs) (max) (W): 85
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
更多
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 25000
IEC 61000-4-5 (A): 5.5
Clamping voltage (V): 9.7
Dynamic resistance (typ): 0.5
Interface type: Ethernet, General purpose, LVDS, USB 2.0
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125

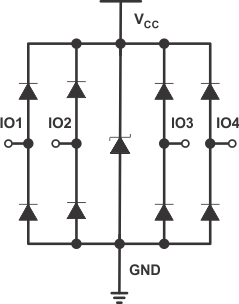

TPD4E001-Q1
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 2.0 且具有 VCC 引脚的汽车类四通道 1.5pF、5.5V、±8kV ESD 保护二极管
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5.5
Clamping voltage (V): 16
Interface type: Ethernet, General purpose, LVDS, Memory/SIM Card, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 10
Rating: Automotive
Operating temperature range (°C): -40 to 125
Package name: SOT-23-3
Peak pulse power (8/20 μs) (max) (W): 100
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 1.5
更多
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 5.5
Clamping voltage (V): 16
Interface type: Ethernet, General purpose, LVDS, Memory/SIM Card, USB 2.0
Breakdown voltage (min) (V): 11
IO leakage current (max) (nA): 10
Rating: Automotive
Operating temperature range (°C): -40 to 125

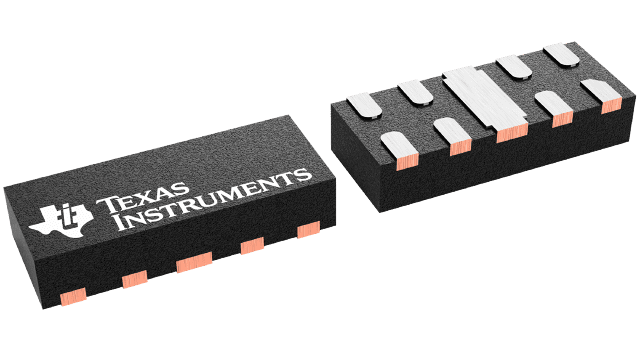

TPD4E05U06
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB、HDMI 和高速接口的四通道 0.5pF、5.5V、±12kV ESD 保护二极管
Package name: DFN2510
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 0.5
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 10
Dynamic resistance (typ): 0.8
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN2510
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 0.5
更多
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 10
Dynamic resistance (typ): 0.8
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125

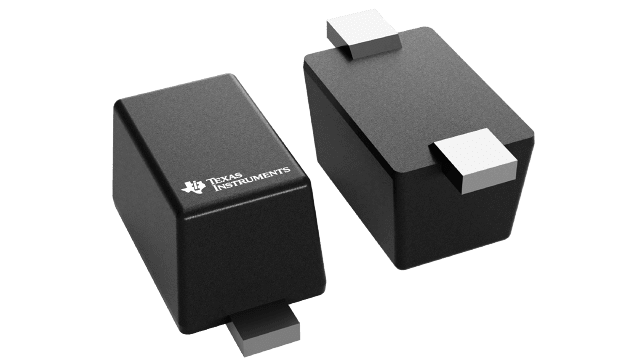

TPD1E05U06
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于高速接口且采用 0402 封装的 0.5pF、5.5V、±12kV ESD 保护二极管
Package name: DFN1006, SOD523
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 1
IO capacitance (typ) (pF): 0.5
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 10
Dynamic resistance (typ): 0.8
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN1006, SOD523
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 1
IO capacitance (typ) (pF): 0.5
更多
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 10
Dynamic resistance (typ): 0.8
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125

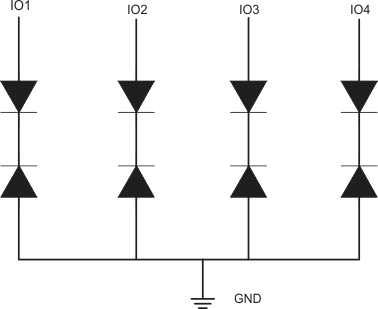

TPD4E1B06
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 采用 SOT 和 SC70 封装且具有 0.5nA 最大泄漏电流的四路 0.7pF、±5.5V、±12kV ESD 保护二极管
Package name: SC70-6, SOT-5X3
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 4
IO capacitance (typ) (pF): 0.7
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 3
Features: ESD Protection
Clamping voltage (V): 10.9
Dynamic resistance (typ): 1
Interface type: General purpose, LVDS, USB 2.0
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 0.5
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: SC70-6, SOT-5X3
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
更多
Number of channels: 4
IO capacitance (typ) (pF): 0.7
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 3
Features: ESD Protection
Clamping voltage (V): 10.9
Dynamic resistance (typ): 1
Interface type: General purpose, LVDS, USB 2.0
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 0.5
Rating: Catalog
Operating temperature range (°C): -40 to 125
TPD4E1U06
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 采用 SOT-23 和 SC70 封装的四路 0.8pF、5.5V、±15kV ESD 保护二极管
Package name: SC70-6, SOT-23
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 3
Clamping voltage (V): 13
Dynamic resistance (typ): 1
Interface type: Ethernet, General purpose, LCD Display, LVDS, USB 2.0
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: SC70-6, SOT-23
Peak pulse power (8/20 μs) (max) (W): 45
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
更多
IO capacitance (typ) (pF): 0.8
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 3
Clamping voltage (V): 13
Dynamic resistance (typ): 1
Interface type: Ethernet, General purpose, LCD Display, LVDS, USB 2.0
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125

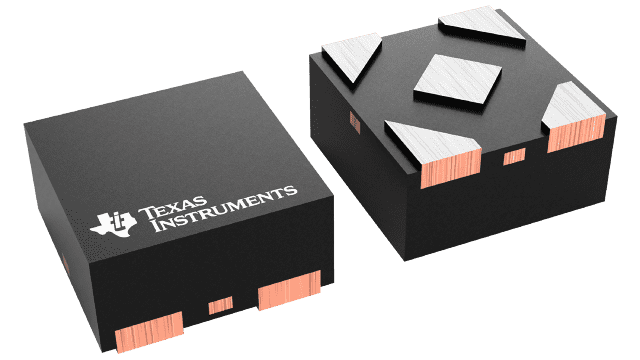

TPD5E003
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 采用 1mm2 X2SON 封装的 5 通道 7pF、5.5V、15kV ESD 保护器件
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 5
IO capacitance (typ) (pF): 9
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 3
Clamping voltage (V): 13
Dynamic resistance (typ): 0.8
Interface type: Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 5
IO capacitance (typ) (pF): 9
IEC 61000-4-2 contact (±V): 15000
更多
IEC 61000-4-5 (A): 3
Clamping voltage (V): 13
Dynamic resistance (typ): 0.8
Interface type: Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN0603
Peak pulse power (8/20 μs) (max) (W): 50
Vrwm (V): 5
Bi-/uni-directional: Bi-directional
Number of channels: 1
IO capacitance (typ) (pF): 6
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 3.8
Clamping voltage (V): 10
Dynamic resistance (typ): 0.55
Interface type: General purpose
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN0603
Peak pulse power (8/20 μs) (max) (W): 50
Vrwm (V): 5
Bi-/uni-directional: Bi-directional
Number of channels: 1
更多
IO capacitance (typ) (pF): 6
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 3.8
Clamping voltage (V): 10
Dynamic resistance (typ): 0.55
Interface type: General purpose
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
TPD4E101
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 采用 0.5mm 间距、0.64mm2 SON 封装的四路 4.8pF、±5.5V、±15kV ESD 保护二极管
Package name: DFN0603
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 4
IO capacitance (typ) (pF): 4.8
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 3
Clamping voltage (V): 13
Dynamic resistance (typ): 0.45
Interface type: Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN0603
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 4
更多
IO capacitance (typ) (pF): 4.8
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 3
Clamping voltage (V): 13
Dynamic resistance (typ): 0.45
Interface type: Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
