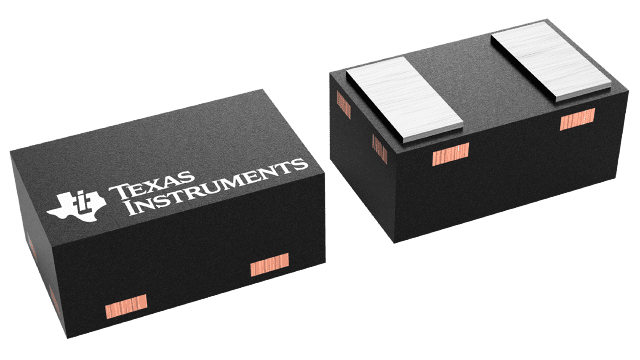

TPD1E0B04
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB-C 和天线且采用 0402 和 0201 封装的 0.13pF、±3.6V、±8kV ESD 保护二极管
Package name: DFN0603, DFN1006
Peak pulse power (8/20 μs) (max) (W): 15
Vrwm (V): 3.6
Bi-/uni-directional: Bi-directional
Number of channels: 1
IO capacitance (typ) (pF): 0.13
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 1.7
Clamping voltage (V): 7.2
Dynamic resistance (typ): 1
Interface type: USB Type-C
Breakdown voltage (min) (V): 6.7
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN0603, DFN1006
Peak pulse power (8/20 μs) (max) (W): 15
Vrwm (V): 3.6
Bi-/uni-directional: Bi-directional
Number of channels: 1
更多
IO capacitance (typ) (pF): 0.13
IEC 61000-4-2 contact (±V): 8000
IEC 61000-4-5 (A): 1.7
Clamping voltage (V): 7.2
Dynamic resistance (typ): 1
Interface type: USB Type-C
Breakdown voltage (min) (V): 6.7
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
TPD1E01B04
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB-C 和天线且采用 0402 和 0201 封装的 0.18pF、±3.6V、±15kV ESD 保护二极管
Package name: DFN0603, DFN1006
Peak pulse power (8/20 μs) (max) (W): 27
Vrwm (V): 3.6
Bi-/uni-directional: Bi-directional
Number of channels: 1
IO capacitance (typ) (pF): 0.18
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 2.5
Features: ESD Protection
Clamping voltage (V): 7
Dynamic resistance (typ): 0.57
Interface type: HDMI 1.4/1.3, HDMI 2.0, USB 3.0, USB Type-C
Breakdown voltage (min) (V): 6.4
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN0603, DFN1006
Peak pulse power (8/20 μs) (max) (W): 27
Vrwm (V): 3.6
Bi-/uni-directional: Bi-directional
更多
Number of channels: 1
IO capacitance (typ) (pF): 0.18
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 2.5
Features: ESD Protection
Clamping voltage (V): 7
Dynamic resistance (typ): 0.57
Interface type: HDMI 1.4/1.3, HDMI 2.0, USB 3.0, USB Type-C
Breakdown voltage (min) (V): 6.4
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
TPD1E04U04
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 HDMI 2.0 和 USB 3.0 且采用 0402 和 0201 封装的 0.5pF、3.6V、±16kV ESD 保护二极管
Package name: DFN0603, DFN1006
Peak pulse power (8/20 μs) (max) (W): 19
Vrwm (V): 3.6
Bi-/uni-directional: Uni-Directional
Number of channels: 1
IO capacitance (typ) (pF): 0.5
IEC 61000-4-2 contact (±V): 16000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 8.5
Dynamic resistance (typ): 0.25
Interface type: HDMI 1.4/1.3, HDMI 2.0, USB 2.0, USB 3.0, USB Type-C
Breakdown voltage (min) (V): 4.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN0603, DFN1006
Peak pulse power (8/20 μs) (max) (W): 19
Vrwm (V): 3.6
Bi-/uni-directional: Uni-Directional
Number of channels: 1
更多
IO capacitance (typ) (pF): 0.5
IEC 61000-4-2 contact (±V): 16000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 8.5
Dynamic resistance (typ): 0.25
Interface type: HDMI 1.4/1.3, HDMI 2.0, USB 2.0, USB 3.0, USB Type-C
Breakdown voltage (min) (V): 4.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125

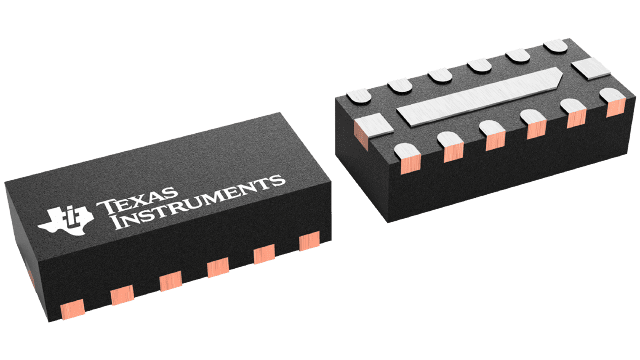

TPD4E02B04
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 3.0、HDMI 2.0 和高速信号的四路 0.25pF、±3.6V、±12kV ESD 保护二极管
Package name: DFN2510
Peak pulse power (8/20 μs) (max) (W): 17
Vrwm (V): 3.6
Bi-/uni-directional: Bi-directional
Number of channels: 4
IO capacitance (typ) (pF): 0.25
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2
Clamping voltage (V): 6.6
Dynamic resistance (typ): 0.47
Interface type: HDMI 1.4/1.3, HDMI 2.0, USB 3.0, USB Type-C
Breakdown voltage (min) (V): 5.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN2510
Peak pulse power (8/20 μs) (max) (W): 17
Vrwm (V): 3.6
Bi-/uni-directional: Bi-directional
Number of channels: 4
更多
IO capacitance (typ) (pF): 0.25
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2
Clamping voltage (V): 6.6
Dynamic resistance (typ): 0.47
Interface type: HDMI 1.4/1.3, HDMI 2.0, USB 3.0, USB Type-C
Breakdown voltage (min) (V): 5.5
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
TPD6F002-Q1
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 LCD 显示屏应用的汽车类 6 通道、5.5V ESD 保护和 EMI 滤波器
Package name: WSON
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 34
IEC 61000-4-2 contact (±V): 20000
Features: EMI Filter
Clamping voltage (V): 12
Interface type: General purpose, LCD Display, LVDS, Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 20
Rating: Automotive
Operating temperature range (°C): -40 to 125
Package name: WSON
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 6
IO capacitance (typ) (pF): 34
IEC 61000-4-2 contact (±V): 20000
Features: EMI Filter
更多
Clamping voltage (V): 12
Interface type: General purpose, LCD Display, LVDS, Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 20
Rating: Automotive
Operating temperature range (°C): -40 to 125

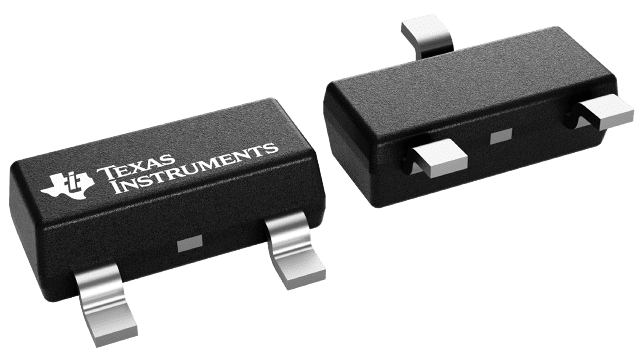

TPD2E2U06-Q1
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 和高速接口的汽车类双路 1.5pF、5.5V、±25kV ESD 保护二极管
Package name: SC70-3, SOT-23
Peak pulse power (8/20 μs) (max) (W): 75
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 25000
IEC 61000-4-5 (A): 5.5
Clamping voltage (V): 9.7
Dynamic resistance (typ): 0.6
Interface type: Ethernet, General purpose, LVDS, USB 2.0
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Automotive
Operating temperature range (°C): -40 to 125
Package name: SC70-3, SOT-23
Peak pulse power (8/20 μs) (max) (W): 75
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 2
更多
IO capacitance (typ) (pF): 1.5
IEC 61000-4-2 contact (±V): 25000
IEC 61000-4-5 (A): 5.5
Clamping voltage (V): 9.7
Dynamic resistance (typ): 0.6
Interface type: Ethernet, General purpose, LVDS, USB 2.0
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 10
Rating: Automotive
Operating temperature range (°C): -40 to 125

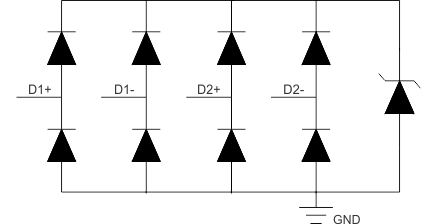

TPD4E05U06-Q1
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 和高速接口的汽车类四路 0.5pF、5.5V、±12kV ESD 保护二极管
Package name: DFN2510
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 0.5
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 10
Dynamic resistance (typ): 0.96
Interface type: Ethernet, HDMI 1.4/1.3, HDMI 2.0, LVDS, USB 2.0, USB 3.0
Breakdown voltage (min) (V): 6.4
IO leakage current (max) (nA): 10
Rating: Automotive
Operating temperature range (°C): -40 to 125
Package name: DFN2510
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
更多
IO capacitance (typ) (pF): 0.5
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 10
Dynamic resistance (typ): 0.96
Interface type: Ethernet, HDMI 1.4/1.3, HDMI 2.0, LVDS, USB 2.0, USB 3.0
Breakdown voltage (min) (V): 6.4
IO leakage current (max) (nA): 10
Rating: Automotive
Operating temperature range (°C): -40 to 125

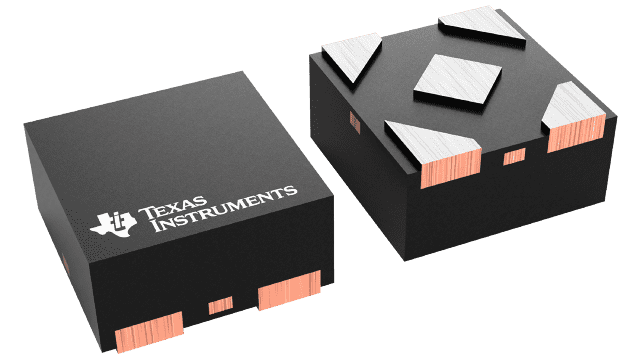

TPD4E6B06
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 采用 0.5mm 间距、0.64mm2 SON 封装的四路 4.8pF、±5.5V、±15kV ESD 保护二极管
Package name: DFN0603
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 4
IO capacitance (typ) (pF): 4.8
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 3
Clamping voltage (V): 10
Dynamic resistance (typ): 0.75
Interface type: Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN0603
Peak pulse power (8/20 μs) (max) (W): 40
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 4
更多
IO capacitance (typ) (pF): 4.8
IEC 61000-4-2 contact (±V): 15000
IEC 61000-4-5 (A): 3
Clamping voltage (V): 10
Dynamic resistance (typ): 0.75
Interface type: Memory/SIM Card
Breakdown voltage (min) (V): 6
IO leakage current (max) (nA): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN0603
Peak pulse power (8/20 μs) (max) (W): 35
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
IO capacitance (typ) (pF): 0.45
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 10
Dynamic resistance (typ): 0.8
Interface type: HDMI 1.4/1.3, HDMI 2.0, USB 3.0
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 1
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: DFN0603
Peak pulse power (8/20 μs) (max) (W): 35
Vrwm (V): 5.5
Bi-/uni-directional: Uni-Directional
Number of channels: 4
更多
IO capacitance (typ) (pF): 0.45
IEC 61000-4-2 contact (±V): 12000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 10
Dynamic resistance (typ): 0.8
Interface type: HDMI 1.4/1.3, HDMI 2.0, USB 3.0
Breakdown voltage (min) (V): 6.5
IO leakage current (max) (nA): 1
Rating: Catalog
Operating temperature range (°C): -40 to 125

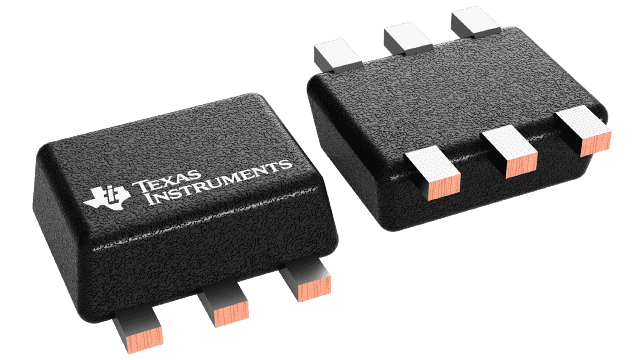

TPD2E1B06
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: 适用于 USB 2.0 且具有 ESD 等级的双通道 1pF、±5.5V、±10kV ESD 保护二极管
Package name: SOT-5X3
Peak pulse power (8/20 μs) (max) (W): 35
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 2
IO capacitance (typ) (pF): 1
IEC 61000-4-2 contact (±V): 10000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 11
Dynamic resistance (typ): 0.9
Interface type: Audio, LVDS, USB 2.0
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
Package name: SOT-5X3
Peak pulse power (8/20 μs) (max) (W): 35
Vrwm (V): 5.5
Bi-/uni-directional: Bi-directional
Number of channels: 2
更多
IO capacitance (typ) (pF): 1
IEC 61000-4-2 contact (±V): 10000
IEC 61000-4-5 (A): 2.5
Clamping voltage (V): 11
Dynamic resistance (typ): 0.9
Interface type: Audio, LVDS, USB 2.0
Breakdown voltage (min) (V): 7
IO leakage current (max) (nA): 10
Rating: Catalog
Operating temperature range (°C): -40 to 125
