Configuration: Discrete I[D ](@100°C) max: -2.4A I[D ](@25°C) max: -4.0A V[F] max: -5.0V Package: TO-205AF Polarity: P Die Size: 3 V[BRDSS] min: -200.0V QPL Part Number: 2N7390 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 800.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 45.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -28.5A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Tabless SMD Polarity: P Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7550D1 TID max: 300.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 50.0mΩ Generation: R5 Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA

Configuration: Discrete I[D ](@100°C) max: -13.0A I[D ](@25°C) max: -20.0A V[F] max: -5.0V Package: TO-257AA Low Ohmic Polarity: P Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7520T3 TID max: 300.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 87.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 45.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -14.0A I[D ](@25°C) max: -22.0A V[F] max: -3.0V Package: TO-254AA Polarity: P Die Size: 5 V[BRDSS] min: -100.0V QPL Part Number: 2N7422 TID max: 300.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 80.0mΩ Generation: R4 Q[G]: 200.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -16.0A I[D ](@25°C) max: -22.0A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Qualification: QIRL Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7520U3 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 85.0mΩ Generation: R5 Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

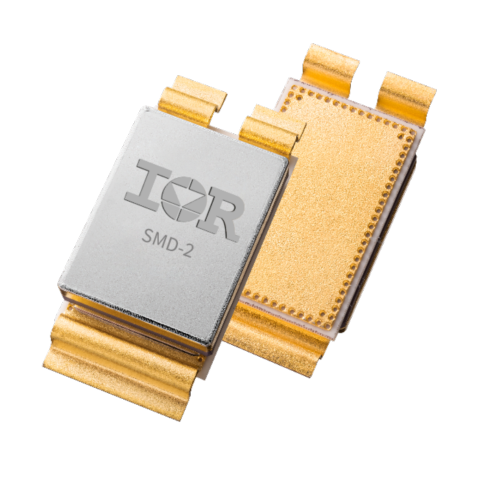

Configuration: Discrete I[D ](@100°C) max: -24.0A I[D ](@25°C) max: -38.0A V[F] max: -3.3V Package: SMD-2 Polarity: P Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7425U TID max: 300.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 68.0mΩ Generation: R4 Q[G]: 290.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -24.0A I[D ](@25°C) max: -38.0A V[F] max: -3.3V Package: SMD-2 Polarity: P Qualification: QIRL Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7425U TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 68.0mΩ Generation: R4 Q[G]: 290.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

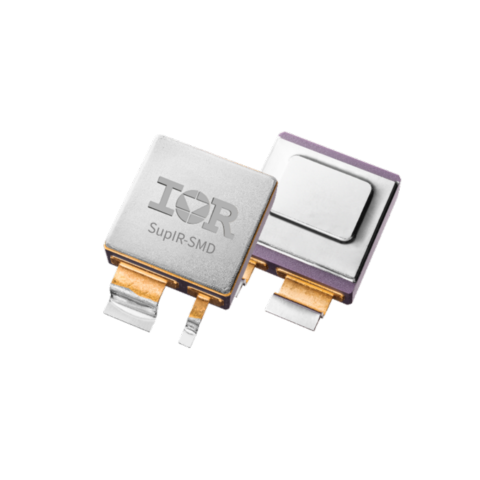

Configuration: Discrete I[D ](@100°C) max: -56.0A I[D ](@25°C) max: -56.0A V[F] max: -5.0V Package: SupIR-SMD Polarity: P V[BRDSS] min: -30.0V QPL Part Number: 2N7523U2A TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 13.0mΩ Qualification: COTS Generation: R5 Die Size: 6 Q[G]: 240.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: -56.0A I[D ](@25°C) max: -56.0A V[F] max: -5.0V Package: SMD-2 Polarity: P Die Size: 6 V[BRDSS] min: -60.0V QPL Part Number: 2N7524U2 TID max: 300.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 15.0mΩ Generation: R5 Q[G]: 200.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Qualification: DLA Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -22.5A I[D ](@25°C) max: -35.5A V[F] max: -5.0V Package: SMD-2 Polarity: P Die Size: 6 V[BRDSS] min: -200.0V QPL Part Number: 2N7549U2 TID max: 300.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 102.0mΩ Generation: R5 Q[G]: 180.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Qualification: DLA Product Category: Rad hard MOSFETS
