Configuration: Discrete
I[D ](@100°C) max: -24.0A
I[D ](@25°C) max: -38.0A
V[F] max: -3.3V

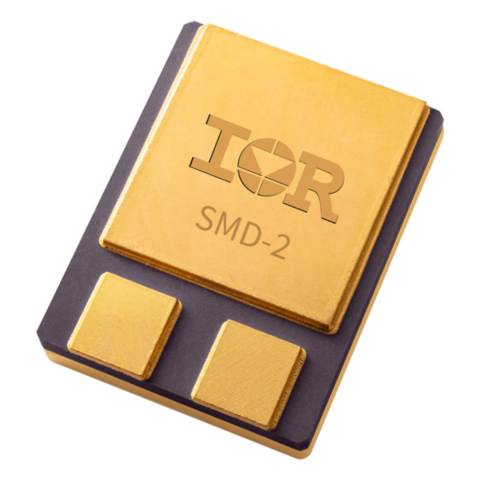

Package: SMD-2
Polarity: P
Die Size: 6
V[BRDSS] min: -100.0V
QPL Part Number: 2N7425U
TID max: 300.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 68.0mΩ
Generation: R4
Q[G]: 290.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS] min: -60.0V
I[D ](@25°C) max: -100.0A
R[DS (on)](@25°C) max: 12.5mΩ
Qualification: COTS
Q[G]: 221.0nC
Package: SupIR-SMD
TID max: 300.0Krad(Si)
Die Size: 6
QPL Part Number: 2N7664T1
ESD Class: Class B
Polarity: P
Generation: R9
Optional TID Rating(kRad(si)): 100 300
V[F] max: -1.3V
Configuration: Discrete
I[D ](@100°C) max: -56.0A
I[D ](@25°C) max: -56.0A
V[F] max: -5.0V
Package: SMD-2
Polarity: P
Qualification: QIRL
Die Size: 6
V[BRDSS] min: -60.0V
QPL Part Number: 2N7622U2
TID max: 100.0Krad(Si)
ESD Class: Class 3B
R[DS (on)](@25°C) max: 15.0mΩ
Generation: R7
Q[G]: 130.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS] min: -100.0V
R[DS (on)](@25°C) max: 76.0mΩ
I[D ](@25°C) max: -23.0A
Package: Tabless TO-257AA
TID max: 100.0Krad(Si)
Die Size: 3
QPL Part Number: 2N7660D5
ESD Class: 2
Polarity: P
V[F] max: -1.3V
Generation: R9
Optional TID Rating(kRad(si)): 100 300
Q[G]: 50.0nC
Qualification: DLA
Configuration: Discrete
I[D ](@100°C) max: -9.0A
I[D ](@25°C) max: -14.0A
V[F] max: -3.6V

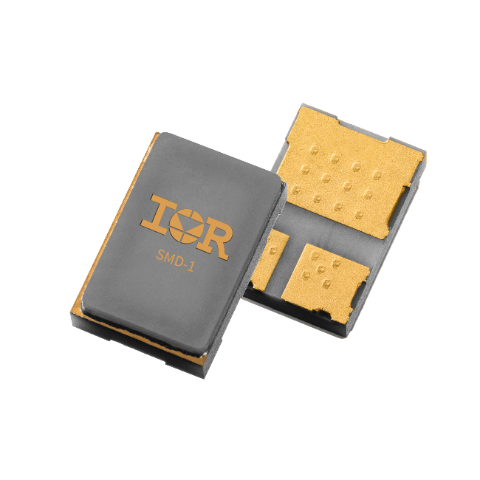

Package: SMD-1
Polarity: P
Die Size: 5
V[BRDSS] min: -200.0V
QPL Part Number: 2N7423U
TID max: 100.0Krad(Si)
ESD Class: Class 2
R[DS (on)](@25°C) max: 315.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 200.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -2.4A
I[D ](@25°C) max: -4.0A
V[F] max: -5.0V
Package: TO-205AF
Polarity: P
Die Size: 3
V[BRDSS] min: -200.0V
QPL Part Number: 2N7390
TID max: 100.0Krad(Si)
ESD Class: Class 1B
R[DS (on)](@25°C) max: 800.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 45.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -56.0A
I[D ](@25°C) max: -56.0A
V[F] max: -5.0V
Package: SMD-2
Polarity: P
Qualification: QIRL
Die Size: 6
V[BRDSS] min: -60.0V
QPL Part Number: 2N7622U2
TID max: 100.0Krad(Si)
ESD Class: Class 3B
R[DS (on)](@25°C) max: 15.0mΩ
Generation: R7
Q[G]: 130.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -8.0A
I[D ](@25°C) max: -12.5A
V[F] max: -5.0V

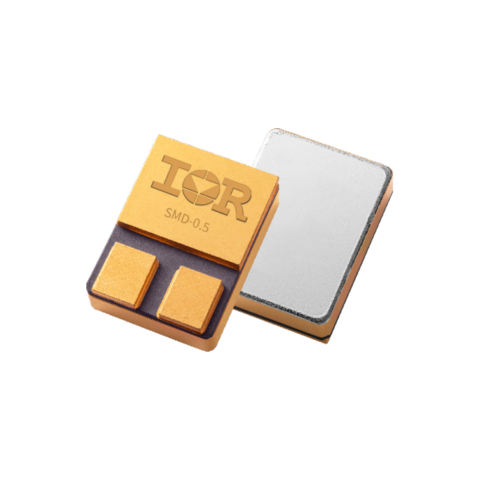

Package: SMD-0.5
Polarity: P
Die Size: 3
V[BRDSS] min: -100.0V
QPL Part Number: 2N7545U3
TID max: 300.0Krad(Si)
ESD Class: Class 1B
R[DS (on)](@25°C) max: 205.0mΩ
Generation: R5
Q[G]: 45.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -4.1A
I[D ](@25°C) max: -6.5A
V[F] max: -3.0V
Package: 18-pin LCC
Polarity: P
Die Size: 3
V[BRDSS] min: -100.0V
QPL Part Number: 2N7389U
TID max: 100.0Krad(Si)
ESD Class: Class 1B
R[DS (on)](@25°C) max: 300.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 45.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -56.0A
I[D ](@25°C) max: -56.0A
V[F] max: -5.0V
Package: SMD-2
Polarity: P
Qualification: COTS
Die Size: 6
V[BRDSS] min: -60.0V
QPL Part Number: 2N7524U2
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 15.0mΩ
Generation: R5
Q[G]: 200.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
