Configuration: Discrete
I[D ](@100°C) max: -20.0A
I[D ](@25°C) max: -32.0A
V[F] max: -5.0V
Package: TO-254AA Low Ohmic
Polarity: P
Die Size: 6
V[BRDSS] min: -200.0V
QPL Part Number: 2N7549T1
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 103.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300
Q[G]: 180.0nC
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -16.0A
I[D ](@25°C) max: -18.0A
V[F] max: -5.0V
Package: TO-257AA
Polarity: P
Die Size: 3
V[BRDSS] min: -60.0V
TID max: 100.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 95.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300
Qualification: QIRL
Q[G]: 45.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -13.0A
I[D ](@25°C) max: -20.0A
V[F] max: -5.0V
Package: TO-257AA Low Ohmic
Polarity: P
Die Size: 3
V[BRDSS] min: -60.0V
QPL Part Number: 2N7520T3
TID max: 300.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 87.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 45.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -9.0A
I[D ](@25°C) max: -14.0A
V[F] max: -3.6V
Package: TO-254AA
Polarity: P
Die Size: 5
V[BRDSS] min: -200.0V
QPL Part Number: 2N7423
TID max: 100.0Krad(Si)
ESD Class: Class 2
R[DS (on)](@25°C) max: 315.0mΩ
Generation: R4
Q[G]: 200.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -2.0A
I[D ](@25°C) max: -3.1A
V[F] max: -5.0V

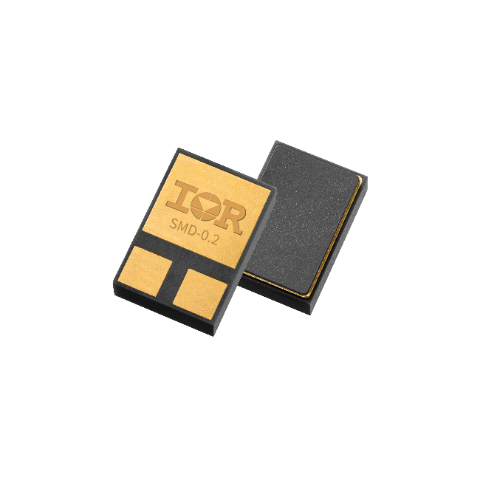

Package: SMD-0.2
Polarity: P
Die Size: 1
V[BRDSS] min: -100.0V
QPL Part Number: 2N7506U8
TID max: 100.0Krad(Si)
ESD Class: Class 1A
R[DS (on)](@25°C) max: 1200.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300
Q[G]: 11.0nC
Qualification: COTS
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -16.0A
I[D ](@25°C) max: -22.0A
V[F] max: -5.0V

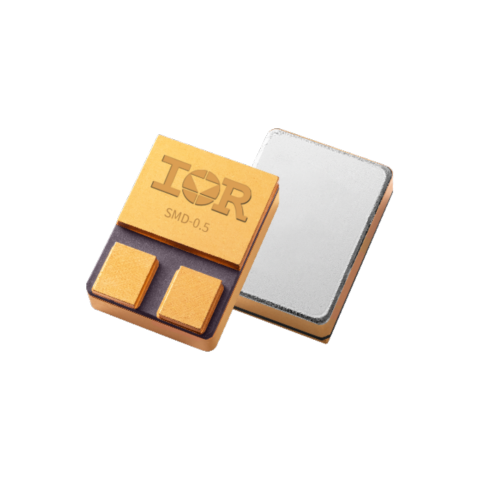

Package: SMD-0.5
Polarity: P
Die Size: 3
V[BRDSS] min: -60.0V
QPL Part Number: 2N7520U3
TID max: 300.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 85.0mΩ
Generation: R5
Q[G]: 45.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -22.5A
I[D ](@25°C) max: -35.5A
V[F] max: -5.0V

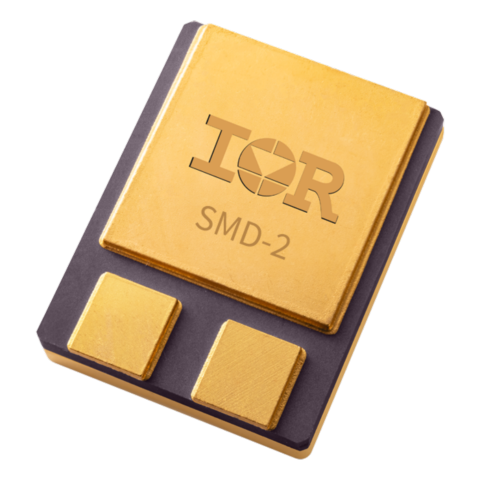

Package: SMD-2
Polarity: P
Qualification: COTS
Die Size: 6
V[BRDSS] min: -200.0V
QPL Part Number: 2N7549U2
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 102.0mΩ
Generation: R5
Q[G]: 180.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS] min: -100.0V
Q[G]: 50.0nC

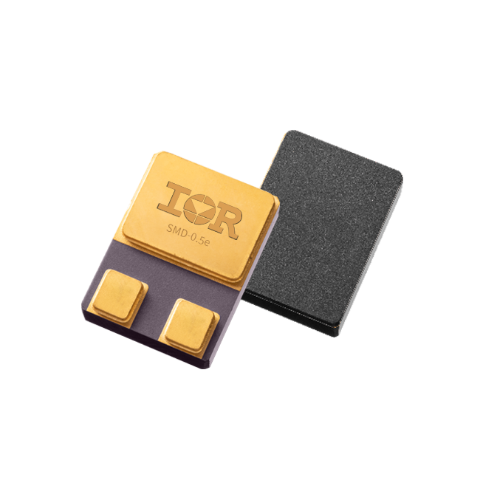

Package: SMD-0.5e Ceramic Lid
TID max: 100.0Krad(Si)
QPL Part Number: 2N7660U3CE
Die Size: 3
ESD Class: 2
Polarity: P
V[F] max: -1.3V
Generation: R9
I[D ](@25°C) max: -24.0A
R[DS (on)](@25°C) max: 72.0mΩ
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Voltage Class max: -100.0V
Language: SPICE
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -18.0A
I[D ](@25°C) max: -22.0A
V[F] max: -5.0V
Package: SMD-0.5
Polarity: P
Die Size: 3
V[BRDSS] min: -30.0V
QPL Part Number: 2N7519U3
TID max: 100.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 70.0mΩ
Generation: R5
Q[G]: 45.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -22.0A
I[D ](@25°C) max: -35.0A
V[F] max: -3.3V
Package: TO-254AA
Polarity: P
Die Size: 6
V[BRDSS] min: -100.0V
QPL Part Number: 2N7425
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 73.0mΩ
Generation: R4
Q[G]: 290.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Qualification: COTS
Product Category: Rad hard MOSFETS
