Configuration: Discrete I[D ](@100°C) max: -45.0A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Tabless Low Ohmic Polarity: P Qualification: QIRL Die Size: 6 V[BRDSS] min: -60.0V QPL Part Number: 2N7524D4 TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 18.0mΩ Generation: R5 Q[G]: 160.0nC Optional TID Rating(kRad(si)): 100 300

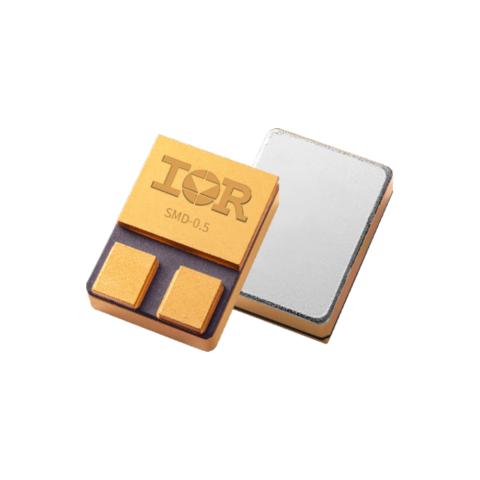

Configuration: Discrete I[D ](@100°C) max: -5.0A I[D ](@25°C) max: -8.0A Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -200.0V TID max: 100.0Krad(Si) ESD Class: Class 1C SEE: Yes R[DS (on)](@25°C) max: 505.0mΩ Generation: R5 Qualification: COTS V[F] max: -5.0V Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300

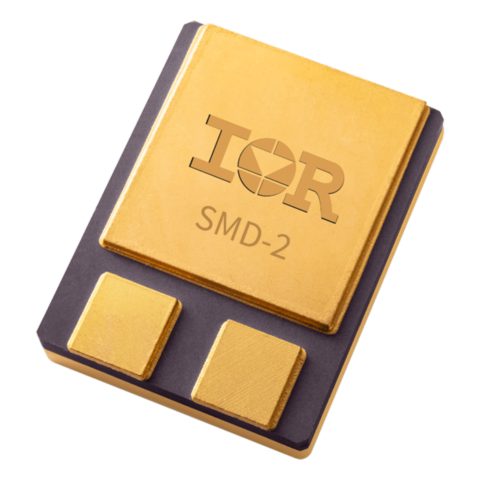

Configuration: Discrete I[D ](@100°C) max: -21.0A I[D ](@25°C) max: -33.5A V[F] max: -5.0V Package: SMD-2 Polarity: P Die Size: 6 V[BRDSS] min: -200.0V TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 102.0mΩ Generation: R5 Qualification: QIRL Q[G]: 180.0nC Optional TID Rating(kRad(si)): 100

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -47.0A V[F] max: -5.0V Package: SMD-2 Polarity: P Die Size: 6 V[BRDSS] min: -100.0V TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 49.0mΩ Generation: R5 Qualification: QIRL Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: -8.0A I[D ](@25°C) max: -12.5A Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -100.0V TID max: 100.0Krad(Si) SEE: Yes R[DS (on)](@25°C) max: 205.0mΩ Qualification: COTS ESD Class: Class 1B V[F] max: -5.0V Generation: R5 Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: -8.0A I[D ](@25°C) max: -12.5A Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -100.0V TID max: 100.0Krad(Si) SEE: Yes R[DS (on)](@25°C) max: 205.0mΩ Generation: R5 Qualification: QIRL ESD Class: Class 1B V[F] max: -5.0V Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -47.0A V[F] max: -5.0V Package: SMD-2 Polarity: P Qualification: COTS Die Size: 6 V[BRDSS] min: -100.0V TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 49.0mΩ Generation: R5 Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: -5.0A I[D ](@25°C) max: -8.0A Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -200.0V TID max: 100.0Krad(Si) ESD Class: Class 1C SEE: Yes R[DS (on)](@25°C) max: 505.0mΩ Generation: R5 Qualification: QIRL V[F] max: -5.0V Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: -21.0A I[D ](@25°C) max: -33.5A V[F] max: -5.0V Package: SMD-2 Polarity: P Qualification: COTS Die Size: 6 V[BRDSS] min: -200.0V TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 102.0mΩ Generation: R5 Q[G]: 180.0nC Optional TID Rating(kRad(si)): 100

Configuration: Discrete ID (@100°C): NoneA ID (@25°C): NoneA VF: NoneV Package: TO-254AA Low Ohmic Polarity: P Qualification: QIRL Die Size: 6 VBRDSS: NoneV QPL Part Number: 2N7524T1 TID: NoneKrad(Si) ESD Class: Class 3A RDS (on)(@25°C): NonemΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 QG: 160.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS
