Configuration: Discrete
ID (@100°C): NoneA
ID (@25°C): NoneA
VF: NoneV

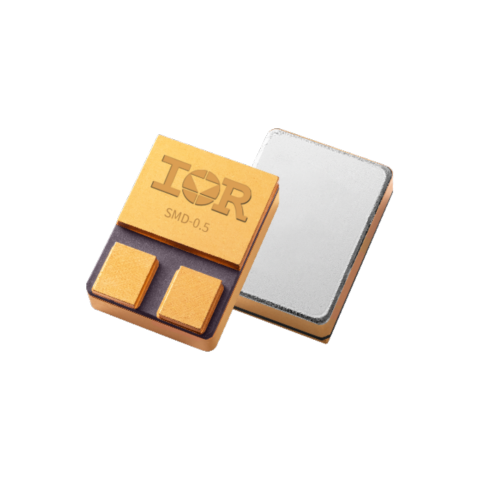

Package: SMD-0.5
Polarity: P
Qualification: QIRL
Die Size: 3
VBRDSS: NoneV
QPL Part Number: 2N7519U3
TID: NoneKrad(Si)
ESD Class: Class 1C
RDS (on)(@25°C): NonemΩ
Generation: R5
QG: 45.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: 0.8A
I[D ](@25°C) max: 1.25A
Package: 18-pin LCC
Polarity: N
Qualification: QPL
V[BRDSS] min: 400.0V
QPL Part Number: 2N6786U
R[DS (on)](@25°C) max: 3600.0mΩ
Configuration: Discrete
I[D ](@100°C) max: 11.0A
I[D ](@25°C) max: 18.0A
Package: TO-204AE
Polarity: N
V[BRDSS] min: 200.0V
R[DS (on)](@25°C) max: 180.0mΩ
Configuration: Discrete
I[D ](@100°C) max: 2.0A
I[D ](@25°C) max: 3.0A
Package: 18-pin LCC
Polarity: N
Qualification: QPL
V[BRDSS] min: 400.0V
QPL Part Number: 2N6800U
R[DS (on)](@25°C) max: 1000.0mΩ
Language: SPICE
Voltage Class: 100.0V
Product Category: High Reliability MOSFETs
Configuration: Discrete
I[D ](@100°C) max: 17.0A
I[D ](@25°C) max: 27.4A
Package: TO-254AA
Polarity: N
Qualification: QPL
V[BRDSS] min: 200.0V
QPL Part Number: 2N7225
R[DS (on)](@25°C) max: 100.0mΩ
Configuration: Discrete
I[D ](@100°C) max: 5.0A
I[D ](@25°C) max: 8.0A
Package: TO-205AF
Polarity: N
Qualification: QPL
V[BRDSS] min: 100.0V
QPL Part Number: 2N6796
R[DS (on)](@25°C) max: 180.0mΩ
Language: SPICE
Voltage Class: 100.0V
Product Category: High Reliability MOSFETs
Configuration: Discrete
I[D ](@100°C) max: -7.0A
I[D ](@25°C) max: -11.0A
Package: SMD-1
Polarity: P
Qualification: DLA
V[BRDSS] min: -200.0V
QPL Part Number: 2N7237U
R[DS (on)](@25°C) max: 510.0mΩ
Configuration: Discrete
I[D ](@100°C) max: 0.9A
I[D ](@25°C) max: 1.4A
Package: 18-pin LCC
Polarity: N
Qualification: QPL
V[BRDSS] min: 500.0V
QPL Part Number: 2N6794U
R[DS (on)](@25°C) max: 3000.0mΩ
Configuration: Discrete
I[D ](@100°C) max: -10.0A
I[D ](@25°C) max: -15.8A
Package: TO-257AA
Polarity: P
V[BRDSS] min: -100.0V
R[DS (on)](@25°C) max: 200.0mΩ
