Configuration: Discrete I[D ](@100°C) max: 7.4A I[D ](@25°C) max: 11.7A V[F] max: 1.2V Package: TO-205AF Polarity: N Die Size: 3 QPL Part Number: 2N7493T2 TID max: 300.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 80.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Q[G]: 50.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 12.5A I[D ](@25°C) max: 20.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 QPL Part Number: 2N7485U3 TID max: 100.0Krad(Si) ESD Class: Class 1C SEE: Yes R[DS (on)](@25°C) max: 80.0mΩ Generation: R5 Qualification: COTS Q[G]: 48.0nC Optional TID Rating(kRad(si)): 100 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 130.0V

Configuration: Discrete I[D ](@100°C) max: 22.0A I[D ](@25°C) max: 30.0A V[F] max: 1.2V Package: TO-257AA Low Ohmic Polarity: N QPL Part Number: 2N7648T3 TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 35.0mΩ Generation: R9 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 44.0nC Die Size: 3 Voltage Class: 100.0V Language: SPICE Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

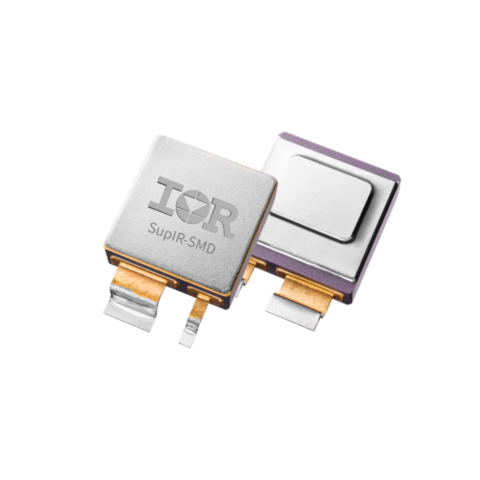

Configuration: Discrete I[D ](@100°C) max: 75.0A I[D ](@25°C) max: 75.0A V[F] max: 1.3V Package: SupIR-SMD Polarity: N QPL Part Number: 2N7468U2A TID max: 100.0Krad(Si) ESD Class: Class 3B SEE: Yes R[DS (on)](@25°C) max: 5.6mΩ Qualification: COTS Generation: R5 Die Size: 6 Q[G]: 165.0nC Optional TID Rating(kRad(si)): 100 300 500 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 40.0A I[D ](@25°C) max: 56.0A V[F] max: 1.2V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7583U2 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 28.0mΩ Generation: R6 Q[G]: 240.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 200.0V

Comments: Package SMD2 P[tot] max: 250.0W Language: SPICE Generation: PowerMOS I[Dpuls]: 224 A V[DS]: 150 V QPL Part Number: 5205/031/02 Polarity: N Optional TID Rating(kRad(si)): 100 V[F] max: 1.2V Qualification: ESA Die Size: 3 Package: SMD-2 V[GS]: +/-20 V Q[G]: 170.0nC ESD Class: class 1C TID max: 100.0Krad(Si) Product Category: Rad tol MOSFETs V[BRDSS]: 150.0V I[D ] max: 57.0A R[DS (on)] max: 11.0Ω

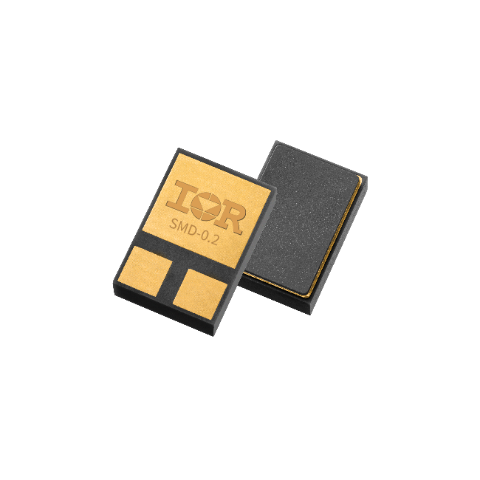

Configuration: Discrete I[D ](@100°C) max: 2.0A I[D ](@25°C) max: 3.2A V[F] max: 1.2V Package: SMD-0.2 Polarity: N Qualification: QIRL Die Size: 1 TID max: 300.0Krad(Si) ESD Class: Class 1B SEE: Yes R[DS (on)](@25°C) max: 1100.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 13.0nC V[BRDSS]: 250.0V

Configuration: Discrete I[D ](@100°C) max: 16.0A I[D ](@25°C) max: 26.0A Package: TO-204AE Polarity: N Die Size: 5 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 110.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 500 Q[G]: 170.0nC Qualification: QIRL V[F] max: 1.4V V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 56.0A I[D ](@25°C) max: 75.0A V[F] max: 1.5V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7431U TID max: 300.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 15.0mΩ Generation: R4 Q[G]: 270.0nC Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 56.0A I[D ](@25°C) max: 56.0A V[F] max: 1.2V Package: SupIR-SMD Polarity: N QPL Part Number: 2N7579U2A TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 10.0mΩ Qualification: COTS Generation: R6 Die Size: 6 Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V
