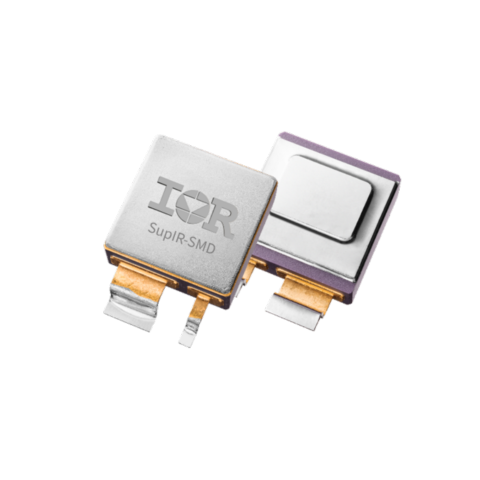

Configuration: Discrete I[D ](@100°C) max: 40.0A I[D ](@25°C) max: 56.0A V[F] max: 1.2V Package: SupIR-SMD Polarity: N QPL Part Number: 2N7583U2A TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 28.0mΩ Qualification: COTS Generation: R6 Die Size: 6 Q[G]: 240.0nC Optional TID Rating(kRad(si)): 100 300 V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 0.5A I[D ](@25°C) max: 0.8A V[F] max: 1.2V Package: UB Polarity: N QPL Part Number: 2N7616UB TID max: 100.0Krad(Si) ESD Class: Class 0 R[DS (on)](@25°C) max: 680.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 3.6nC Die Size: Z Language: SPICE Language: SPICE Voltage Class: 100.0V Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 20.0A I[D ](@25°C) max: 20.0A V[F] max: 1.2V Package: TO-257AA Low Ohmic Polarity: N Qualification: QIRL Die Size: 3 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 45.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 34.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 10.0A I[D ](@25°C) max: 16.0A V[F] max: 1.2V Package: TO-257AA Low Ohmic Polarity: N Die Size: 3 QPL Part Number: 2N7592T3 TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 130.0mΩ Generation: R6 Optional TID Rating(kRad(si)): 100 300 Qualification: COTS Q[G]: 42.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 2.2A I[D ](@25°C) max: 3.4A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 QPL Part Number: 2N7598U3 TID max: 300.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 2900.0mΩ Generation: R6 Qualification: QIRL Q[G]: 52.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 600.0V

Configuration: Discrete I[D ](@100°C) max: 75.0A I[D ](@25°C) max: 75.0A V[F] max: 1.0V Package: SupIR-SMD Polarity: N TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 2.5mΩ Generation: R8 Die Size: 5 Q[G]: 130.0nC Optional TID Rating(kRad(si)): 100 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS Qualification: QIRL V[BRDSS]: 20.0V

Configuration: Discrete I[D ](@100°C) max: 75.0A I[D ](@25°C) max: 75.0A V[F] max: 1.0V Package: SupIR-SMD Polarity: N Qualification: COTS TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 2.5mΩ Generation: R8 Die Size: 5 Q[G]: 130.0nC Optional TID Rating(kRad(si)): 100 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 20.0V

P[tot] max: 75.0W Comments: Package SMD05 Language: SPICE I[Dpuls]: 100 A V[DS]: 60 V Generation: PowerMOS QPL Part Number: 5205/032/02 Polarity: N Optional TID Rating(kRad(si)): 100 V[F] max: 1.3V Die Size: 3 Package: SMD-0.5 V[GS]: +/-20 V Q[G]: 25.0nC ESD Class: class 2 TID max: 100.0Krad(Si) Qualification: ESA Product Category: Rad tol MOSFETs V[BRDSS]: 60.0V I[D ] max: 35.0A R[DS (on)] max: 35.0Ω

Configuration: Discrete I[D ](@100°C) max: 6.0A I[D ](@25°C) max: 9.4A V[F] max: 1.4V Package: TO-257AA Polarity: N Die Size: 3 QPL Part Number: 2N7381 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 400.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Q[G]: 50.0nC V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 10.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 QPL Part Number: 2N7591U3 TID max: 100.0Krad(Si) R[DS (on)](@25°C) max: 130.0mΩ Generation: R6 Qualification: COTS Q[G]: 50.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V I[D ](@25°C) max: 16.0A ESD Class: 3A Product Category: Rad hard MOSFETS V[BRDSS]: 200.0V
