Configuration: Discrete
I[D ](@100°C) max: 35.0A
I[D ](@25°C) max: 35.0A
V[F] max: 1.5V
Package: TO-254AA
Polarity: N
Qualification: DLA
Die Size: 6
QPL Part Number: 2N7431
TID max: 100.0Krad(Si)
ESD Class: Class 3B
R[DS (on)](@25°C) max: 21.0mΩ
Generation: R4
Q[G]: 270.0nC
Optional TID Rating(kRad(si)): 100 300 500
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 60.0V
Configuration: Discrete
I[D ](@100°C) max: 9.1A
I[D ](@25°C) max: 14.4A
V[F] max: 1.8V
Package: TO-257AA
Polarity: N
Die Size: 3
QPL Part Number: 2N7380
TID max: 100.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 180.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300 500
Qualification: DLA
Q[G]: 40.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 100.0V
Configuration: Discrete
I[D ](@100°C) max: 5.0A
I[D ](@25°C) max: 8.0A
V[F] max: 1.2V
Package: 18-pin LCC
Polarity: N
Die Size: 3
TID max: 100.0Krad(Si)
ESD Class: Class 2
SEE: Yes
R[DS (on)](@25°C) max: 175.0mΩ
Generation: R6
Optional TID Rating(kRad(si)): 100 300
Q[G]: 50.0nC
Qualification: QIRL
V[BRDSS]: 200.0V
Generation: R5
Qualification: COTS
I[D ](@25°C) max: -21.0A
R[DS (on)](@25°C) max: 85.0mΩ
Q[G]: 45.0nC

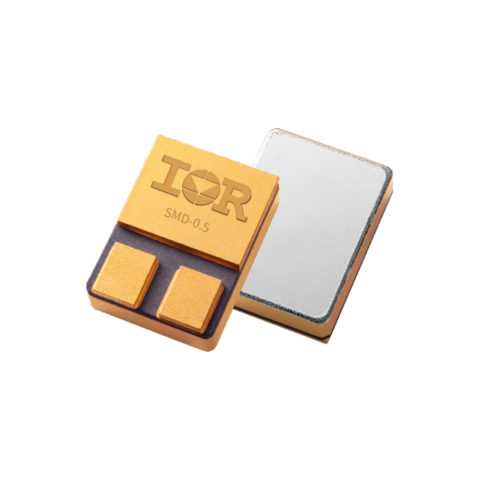

Package: SMD-0.5
TID max: 100.0Krad(Si)
Die Size: 3
QPL Part Number: 2N7520U3
ESD Class: 1C
Polarity: P
Optional TID Rating(kRad(si)): 100 300
V[F] max: -5.0V
V[BRDSS]: -60.0V
Configuration: Discrete
I[D ](@100°C) max: 2.1A
I[D ](@25°C) max: 3.4A
V[F] max: 1.2V
Package: TO-257AA
Polarity: N
Die Size: 3
TID max: 100.0Krad(Si)
ESD Class: Class 2
R[DS (on)](@25°C) max: 3000.0mΩ
Generation: R6
Optional TID Rating(kRad(si)): 100 300
Qualification: COTS
Q[G]: 52.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 600.0V
Configuration: Discrete
I[D ](@100°C) max: 14.0A
I[D ](@25°C) max: 18.0A
V[F] max: 1.2V
Package: TO-257AA
Polarity: N
Die Size: 3
QPL Part Number: 2N7484T3
TID max: 100.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 85.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300 500
Qualification: DLA
Q[G]: 50.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 100.0V
Configuration: Discrete
I[D ](@100°C) max: 10.0A
I[D ](@25°C) max: 16.0A
V[F] max: 1.2V
Package: SMD-0.5
Polarity: N
Die Size: 3
QPL Part Number: 2N7591U3
TID max: 100.0Krad(Si)
ESD Class: Class 2
R[DS (on)](@25°C) max: 130.0mΩ
Generation: R6
Qualification: COTS
Q[G]: 50.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 200.0V
Configuration: Discrete
I[D ](@100°C) max: 21.0A
I[D ](@25°C) max: 34.0A
V[F] max: 1.4V
Package: TO-254AA
Polarity: N
Die Size: 5
QPL Part Number: 2N7268
TID max: 300.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 65.0mΩ
Generation: R4
Q[G]: 160.0nC
Optional TID Rating(kRad(si)): 100 300 500
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 100.0V
Configuration: Discrete
I[D ](@100°C) max: 2.1A
I[D ](@25°C) max: 3.4A
V[F] max: 1.2V
Package: TO-257AA
Polarity: N
Qualification: QIRL
Die Size: 3
TID max: 100.0Krad(Si)
ESD Class: Class 2
R[DS (on)](@25°C) max: 3000.0mΩ
Generation: R6
Optional TID Rating(kRad(si)): 100 300
Q[G]: 52.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 600.0V
Configuration: Discrete
I[D ](@100°C) max: 22.0A
I[D ](@25°C) max: 22.0A
V[F] max: 1.2V
Package: SMD-0.5
Polarity: N
Die Size: 3
QPL Part Number: 2N7479U3
TID max: 100.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 20.0mΩ
Generation: R5
Qualification: COTS
Q[G]: 65.0nC
Optional TID Rating(kRad(si)): 100 300 500
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 30.0V
