Configuration: Discrete I[D ](@100°C) max: 16.0A I[D ](@25°C) max: 26.0A V[F] max: 1.4V Package: TO-254AA Polarity: N Die Size: 5 QPL Part Number: 2N7269 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 100.0mΩ Generation: R4 Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 3.5A I[D ](@25°C) max: 5.5A V[F] max: 1.4V Package: 18-pin LCC Polarity: N Die Size: 3 QPL Part Number: 2N7262U TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 350.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Q[G]: 50.0nC V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 45.0A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Low Ohmic Polarity: N Die Size: 6 QPL Part Number: 2N7471T1 TID max: 500.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 13.0mΩ Generation: R5 Q[G]: 160.0C Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 5.0A I[D ](@25°C) max: 8.0A V[F] max: 1.5V Package: 18-pin LCC Polarity: N Die Size: 3 QPL Part Number: 2N7261U TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 180.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Q[G]: 50.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

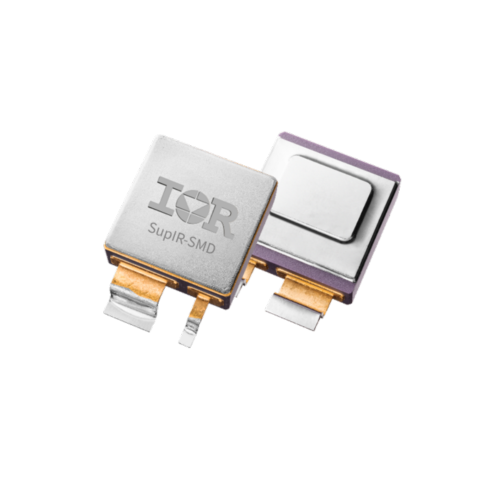

Configuration: Discrete I[D ](@100°C) max: 100.0A I[D ](@25°C) max: 100.0A V[F] max: 1.2V Package: SupIR-SMD Polarity: N QPL Part Number: 2N7652U2A TID max: 100.0Krad(Si) ESD Class: Class 3B SEE: Yes R[DS (on)](@25°C) max: 4.0mΩ Qualification: COTS Generation: R9 Die Size: 6 Q[G]: 194.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

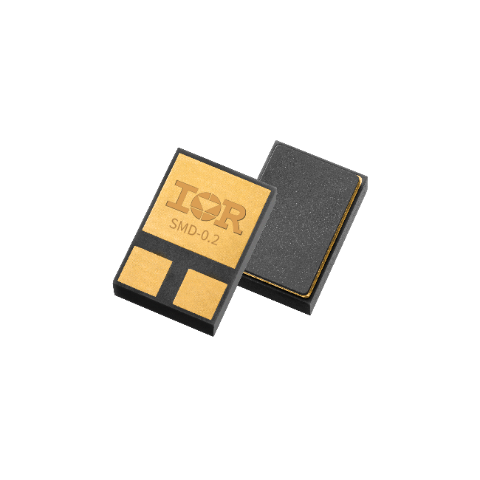

Configuration: Discrete I[D ](@100°C) max: 14.0A I[D ](@25°C) max: 23.0A V[F] max: 1.2V Package: SMD-0.2 Polarity: N QPL Part Number: 2N7651U8 TID max: 100.0Krad(Si) ESD Class: Class 1C SEE: Yes R[DS (on)](@25°C) max: 55.0mΩ Generation: R9 Optional TID Rating(kRad(si)): 100 300 Q[G]: 23.0nC Qualification: COTS Die Size: 1.7 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 19.0A I[D ](@25°C) max: 20.0A V[F] max: 1.2V Package: TO-257AA Low Ohmic Polarity: N Qualification: QIRL Die Size: 3 QPL Part Number: 2N7588T3 TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 42.0mΩ Generation: R6 Optional TID Rating(kRad(si)): 100 300 Q[G]: 50.0nC Voltage Class: 100.0V Language: SPICE Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 0.5A I[D ](@25°C) max: 0.8A V[F] max: 1.2V Package: UB Polarity: N Qualification: DLA QPL Part Number: 2N7616UB TID max: 300.0Krad(Si) ESD Class: Class 0 R[DS (on)](@25°C) max: 680.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 3.6nC Die Size: Z Language: SPICE Language: SPICE Voltage Class: 100.0V Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 45.0A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Tabless SMD Polarity: N Die Size: 6 TID max: 100.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 13.0mΩ Generation: R5 Qualification: QIRL Q[G]: 160.0nC Optional TID Rating(kRad(si)): 100 300 500 V[BRDSS]: 100.0V

P[tot] max: 208.0W Comments: Package TO254AA Language: SPICE Generation: PowerMOS I[Dpuls]: 180 A V[DS]: 250 V QPL Part Number: 5205/030/03 Polarity: N Optional TID Rating(kRad(si)): 100 V[F] max: 1.4V Qualification: ESA Die Size: 3 Package: TO-254AA V[GS]: +/-20 V Q[G]: 70.0nC ESD Class: class 1C TID max: 100.0Krad(Si) Product Category: Rad tol MOSFETs V[BRDSS]: 250.0V I[D ] max: 45.0A R[DS (on)] max: 50.0Ω
