Configuration: Discrete I[D ](@100°C) max: 10.5A I[D ](@25°C) max: 17.0A Package: TO-257AA Low Ohmic Polarity: N QPL Part Number: 2N7649T3 TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 110.0mΩ Generation: R9 Optional TID Rating(kRad(si)): 300 Qualification: DLA Q[G]: 34.0nC Die Size: 3 V[F] max: 1.2V Voltage Class: 100.0V Language: SPICE Product Category: Rad hard MOSFETS V[BRDSS]: 250.0V

Configuration: Discrete I[D ](@100°C) max: 10.5A I[D ](@25°C) max: 17.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 QPL Part Number: 2N7649U3 TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 110.0mΩ Generation: R9 Qualification: COTS Q[G]: 34.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 250.0V

Configuration: Discrete I[D ](@100°C) max: 22.0A I[D ](@25°C) max: 30.0A V[F] max: 1.2V Package: TO-257AA Low Ohmic Polarity: N QPL Part Number: 2N7648T3 TID max: 300.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 35.0mΩ Generation: R9 Optional TID Rating(kRad(si)): 100 300 Qualification: COTS Q[G]: 44.0nC Die Size: 3 Voltage Class: 100.0V Language: SPICE Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 62.0A I[D ](@25°C) max: 75.0A V[F] max: 1.2V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7472U2 TID max: 100.0Krad(Si) ESD Class: Class 3B SEE: Yes R[DS (on)](@25°C) max: 13.5mΩ Generation: R5 Q[G]: 160.0nC Optional TID Rating(kRad(si)): 100 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 130.0V

Configuration: Discrete I[D ](@100°C) max: 75.0A I[D ](@25°C) max: 75.0A V[F] max: 1.3V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7467U2 TID max: 100.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 3.5mΩ Generation: R5 Qualification: COTS Q[G]: 200.0nC Optional TID Rating(kRad(si)): 100 300 500 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 30.0V

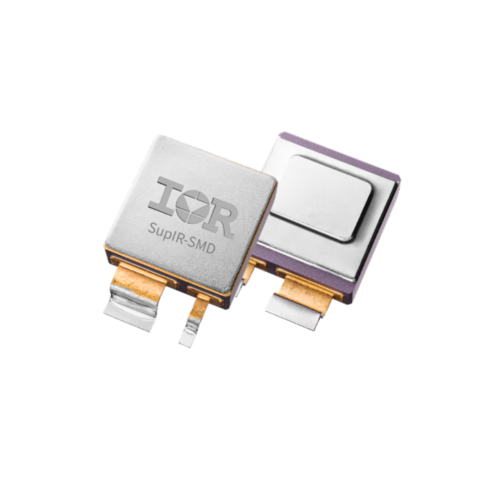

Configuration: Discrete I[D ](@100°C) max: 12.0A I[D ](@25°C) max: 20.0A V[F] max: 1.8V Package: SupIR-SMD Polarity: N Qualification: COTS TID max: 100.0Krad(Si) ESD Class: Class 3B SEE: Yes R[DS (on)](@25°C) max: 320.0mΩ Generation: R4 Die Size: 6 Q[G]: 220.0nC Optional TID Rating(kRad(si)): 100 V[BRDSS]: 500.0V

Configuration: Discrete I[D ](@100°C) max: 2.2A I[D ](@25°C) max: 3.4A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 QPL Part Number: 2N7598U3 TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 2900.0mΩ Generation: R6 Q[G]: 52.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 600.0V

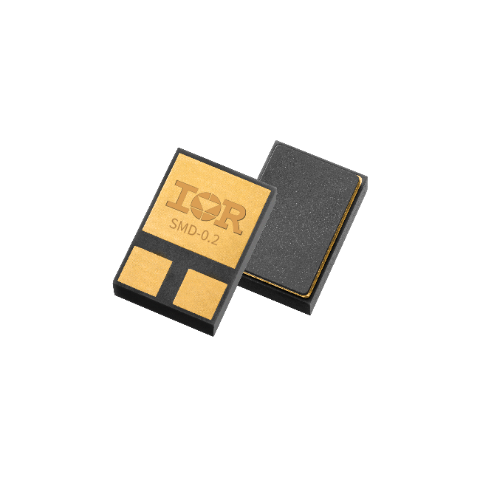

Configuration: Discrete I[D ](@100°C) max: 17.0A I[D ](@25°C) max: 17.0A V[F] max: 1.0V Package: SMD-0.2 Polarity: N TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 15.0mΩ Generation: R8 Optional TID Rating(kRad(si)): 100 300 Q[G]: 26.0nC Qualification: QIRL Language: SPICE Voltage Class: 100.0V Die Size: 1.7 Product Category: Rad hard MOSFETS V[BRDSS]: 20.0V

Configuration: Discrete I[D ](@100°C) max: 10.0A I[D ](@25°C) max: 16.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 QPL Part Number: 2N7591U3 TID max: 300.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 130.0mΩ Generation: R6 Q[G]: 50.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 3.7A I[D ](@25°C) max: 6.0A V[F] max: 1.2V Package: TO-205AF Polarity: N Qualification: QIRL Die Size: 3 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 320.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 13.5nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V
