Configuration: Discrete I[D ](@100°C) max: 28.5A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Low Ohmic Polarity: N Die Size: 6 QPL Part Number: 2N7586T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 41.0mΩ Generation: R6 Q[G]: 220.0C Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 250.0V

P[tot] max: 75.0W Comments: Package TO257AA Language: SPICE Generation: PowerMOS I[Dpuls]: 100 A V[DS]: 60 V Optional TID Rating(kRad(si)): 100 Polarity: N QPL Part Number: 5205/032/03 TID max: 100.0Krad(Si) V[F] max: 1.3V Die Size: 3 Package: TO-257AA V[GS]: +/-20 V Q[G]: 26.0nC ESD Class: class 2 Qualification: ESA Product Category: Rad tol MOSFETs V[BRDSS]: 60.0V I[D ] max: 23.0A R[DS (on)] max: 40.0Ω

Configuration: Discrete I[D ](@100°C) max: 2.1A I[D ](@25°C) max: 3.4A V[F] max: 1.2V Package: TO-257AA Polarity: N Qualification: QIRL Die Size: 3 TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 3000.0mΩ Generation: R6 Optional TID Rating(kRad(si)): 100 300 Q[G]: 52.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 600.0V

Configuration: Discrete I[D ](@100°C) max: 14.0A I[D ](@25°C) max: 23.0A V[F] max: 1.2V Package: SMD-0.2C Polarity: N QPL Part Number: 2N7651U8C TID max: 300.0Krad(Si) ESD Class: Class 1C SEE: Yes R[DS (on)](@25°C) max: 55.0mΩ Generation: R9 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 23.0nC Die Size: 1.7 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 6.4A I[D ](@25°C) max: 10.0A V[F] max: 1.2V Package: TO-257AA Polarity: N Die Size: 3 QPL Part Number: 2N7556T3 TID max: 100.0Krad(Si) ESD Class: Class 1C SEE: Yes R[DS (on)](@25°C) max: 410.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 Qualification: COTS Q[G]: 32.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 250.0V

Configuration: Discrete I[D ](@100°C) max: 22.0A I[D ](@25°C) max: 30.0A V[F] max: 1.2V Package: TO-257AA Low Ohmic Polarity: N QPL Part Number: 2N7648T3 TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 35.0mΩ Generation: R9 Optional TID Rating(kRad(si)): 100 300 Qualification: COTS Q[G]: 44.0nC Die Size: 3 Voltage Class: 100.0V Language: SPICE Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 31.5A I[D ](@25°C) max: 50.0A V[F] max: 1.2V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7585U2 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 40.0mΩ Generation: R6 Q[G]: 220.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 250.0V

Configuration: Discrete I[D ](@100°C) max: 12.0A I[D ](@25°C) max: 19.0A V[F] max: 1.2V Package: TO-257AA Low Ohmic Polarity: N Die Size: 3 V[BRDSS] min: 150.0V TID max: 300.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 90.0mΩ Generation: R6 Optional TID Rating(kRad(si)): 100 300 Qualification: QIRL Q[G]: 50.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: 21.0A I[D ](@25°C) max: 22.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 QPL Part Number: 2N7480U3 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 30.0mΩ Generation: R5 Qualification: COTS Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 500 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

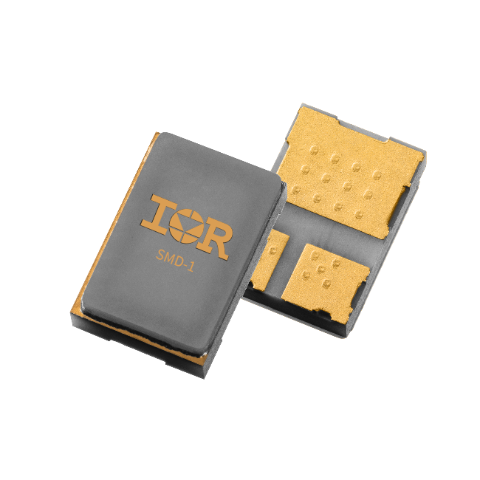

Configuration: Discrete I[D ](@100°C) max: 16.0A I[D ](@25°C) max: 26.0A V[F] max: 1.9V Package: SMD-1 Polarity: N Qualification: COTS Die Size: 5 TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 100.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 Q[G]: 170.0nC V[BRDSS]: 200.0V
