Configuration: Discrete I[D ](@100°C) max: 45.0A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Low Ohmic Polarity: N Die Size: 6 QPL Part Number: 2N7471T1 TID max: 100.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 13.0mΩ Generation: R5 Qualification: COTS Q[G]: 160.0C Optional TID Rating(kRad(si)): 100 300 500 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

I[D ](@100°C) max: 2.1A I[D ](@25°C) max: 3.3A V[F] max: 1.2V Package: TO-205AF Polarity: N Qualification: QIRL TID max: 300.0Krad(Si) ESD Class: Class 1B SEE: 100.0MeV∙cm2/mg R[DS (on)](@25°C) max: 1000.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 18.0nC Die Size: 1 V[BRDSS]: 250.0V

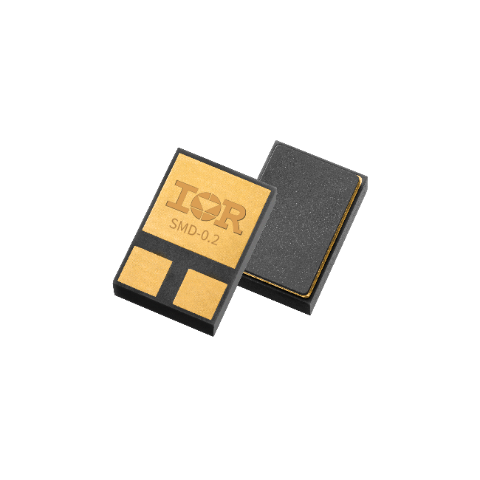

Qualification: QIRL I[D ](@25°C) max: 3.7A Q[G]: 9.1nC Package: SMD-0.2C TID max: 100.0Krad(Si) Die Size: 1 ESD Class: Class 1B Polarity: N Generation: R5 Optional TID Rating(kRad(si)): 100 V[F] max: 1.0V R[DS (on)](@25°C) max: 1700.0mΩ V[BRDSS]: 250.0V

Configuration: Discrete I[D ](@100°C) max: 7.8A I[D ](@25°C) max: 12.0A V[F] max: 1.2V Package: TO-257AA Polarity: N Die Size: 3 QPL Part Number: 2N7489T3 TID max: 100.0Krad(Si) ESD Class: Class 1A SEE: Yes R[DS (on)](@25°C) max: 230.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 Qualification: COTS Q[G]: 28.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 200.0V

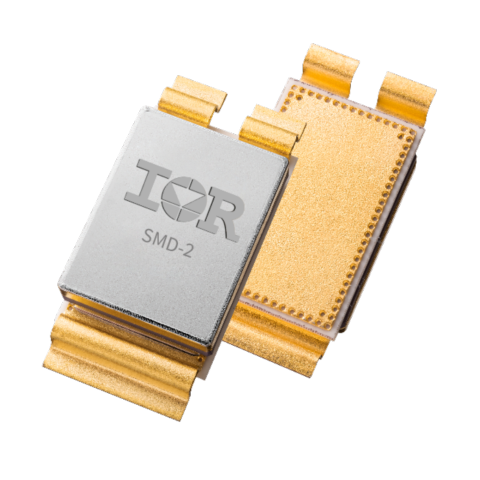

Configuration: Discrete I[D ](@100°C) max: 27.0A I[D ](@25°C) max: 43.0A V[F] max: 1.8V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7433U TID max: 100.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 70.0mΩ Generation: R4 Q[G]: 290.0nC Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 75.0A I[D ](@25°C) max: 75.0A V[F] max: 1.3V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7467U2 TID max: 100.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 3.5mΩ Generation: R5 Qualification: COTS Q[G]: 200.0nC Optional TID Rating(kRad(si)): 100 300 500 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 30.0V

Configuration: Discrete I[D ](@100°C) max: 10.0A I[D ](@25°C) max: 16.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 QPL Part Number: 2N7591U3 TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 130.0mΩ Generation: R6 Q[G]: 50.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 35.0A I[D ](@25°C) max: 35.0A V[F] max: 1.5V Package: TO-254AA Polarity: N Die Size: 6 QPL Part Number: 2N7431 TID max: 500.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 21.0mΩ Generation: R4 Q[G]: 270.0nC Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 10.5A I[D ](@25°C) max: 17.0A Package: TO-257AA Low Ohmic Polarity: N QPL Part Number: 2N7649T3 TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 110.0mΩ Generation: R9 Optional TID Rating(kRad(si)): 300 Qualification: DLA Q[G]: 34.0nC Die Size: 3 V[F] max: 1.2V Voltage Class: 100.0V Language: SPICE Product Category: Rad hard MOSFETS V[BRDSS]: 250.0V

Configuration: Discrete I[D ](@100°C) max: 10.2A I[D ](@25°C) max: 12.0A V[F] max: 1.2V Package: TO-205AF Polarity: N Qualification: COTS TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 32.0mΩ Generation: R8 Optional TID Rating(kRad(si)): 100 300 Q[G]: 27.0nC Language: SPICE Voltage Class: 100.0V Die Size: 1.7 Product Category: Rad hard MOSFETS V[BRDSS]: 20.0V
