Configuration: Quad I[D ](N-CH @100°C) max: 2.9A I[D ](N-CH @25°C) max: 4.6A I[D ](P-CH @100°C) max: -1.8A I[D ](P-CH @25°C) max: -2.8A Package: 28-pin LCC Polarity: 2N / 2P Die Size: 1 V[BRDSS] min: 100.0V ESD Class: Class 1A R[DS (on)](N-CH @25°C) max: 270.0mΩ R[DS (on)](P-CH @25°C) max: 960.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 300 Language: SPICE Language: SPICE Voltage Class: 100.0V Voltage Class: 100.0V Qualification: COTS Product Category: Rad hard MOSFETS

Configuration: Quad I[D ](N-CH @100°C) max: 2.9A I[D ](N-CH @25°C) max: 4.6A Package: 28-pin LCC Polarity: N Die Size: 1 V[BRDSS] min: 100.0V ESD Class: Class 1A R[DS (on)](N-CH @25°C) max: 270.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 300 500 1000 Language: SPICE Voltage Class: 100.0V Qualification: COTS Product Category: Rad hard MOSFETS

Configuration: Quad I[D ](N-CH @100°C) max: 1.6A I[D ](N-CH @25°C) max: 2.6A Package: 28-Pin LCC Polarity: N Qualification: QIRL V[BRDSS] min: 250.0V QPL Part Number: 2N7615U6 R[DS (on)](N-CH @25°C) max: 1000.0mΩ Optional TID Rating(kRad(si)): 300 Die Size: 1 ESD Class: Class 1B Generation: R7

Configuration: Quad I[D ](N-CH @100°C) max: 1.1A I[D ](N-CH @25°C) max: 1.8A Package: MO-036AB Polarity: N V[BRDSS] min: 100.0V QPL Part Number: 2N7612M1 R[DS (on)](N-CH @25°C) max: 330.0mΩ Optional TID Rating(kRad(si)): 300 Qualification: COTS ESD Class: Class 1B Die Size: 1 Generation: R7

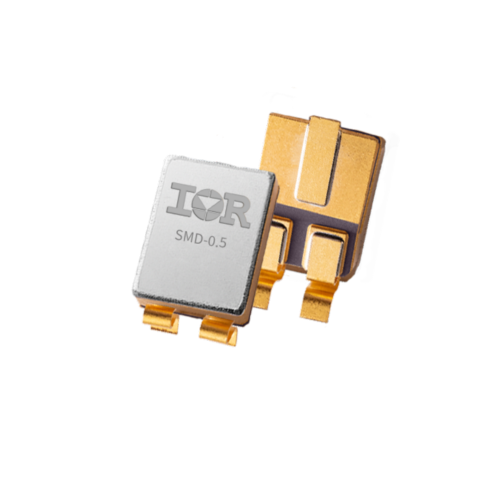

Configuration: Discrete I[D ](@100°C) max: -5.0A I[D ](@25°C) max: -8.0A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -200.0V QPL Part Number: 2N7546U3 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 505.0mΩ Generation: R5 Qualification: COTS Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -22.0A I[D ](@25°C) max: -35.0A V[F] max: -3.3V Package: TO-254AA Polarity: P Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7425 TID max: 300.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 73.0mΩ Generation: R4 Q[G]: 290.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -8.0A I[D ](@25°C) max: -12.5A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Qualification: QIRL Die Size: 3 V[BRDSS] min: -100.0V QPL Part Number: 2N7545U3 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 205.0mΩ Generation: R5 Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -2.4A I[D ](@25°C) max: -4.0A V[F] max: -5.0V Package: 18-pin LCC Polarity: P Die Size: 3 V[BRDSS] min: -200.0V QPL Part Number: 2N7390U TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 800.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Q[G]: 45.0nC Qualification: COTS

Configuration: Quad I[D ](N-CH @100°C) max: 1.1A I[D ](N-CH @25°C) max: 1.8A Package: MO-036AB Polarity: N Qualification: QIRL V[BRDSS] min: 100.0V QPL Part Number: 2N7612M1 R[DS (on)](N-CH @25°C) max: 330.0mΩ Optional TID Rating(kRad(si)): 300 Die Size: 1 Generation: R5

Configuration: Discrete I[D ](@100°C) max: -14.9A I[D ](@25°C) max: -22.0A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Qualification: QIRL Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7624U3 TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 72.0mΩ Generation: R7 Q[G]: 36.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS
