Configuration: Discrete I[D ](@100°C) max: -4.1A I[D ](@25°C) max: -6.5A V[F] max: -3.0V Package: TO-205AF Polarity: P Die Size: 3 V[BRDSS] min: -100.0V QPL Part Number: 2N7389 TID max: 300.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 300.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 45.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

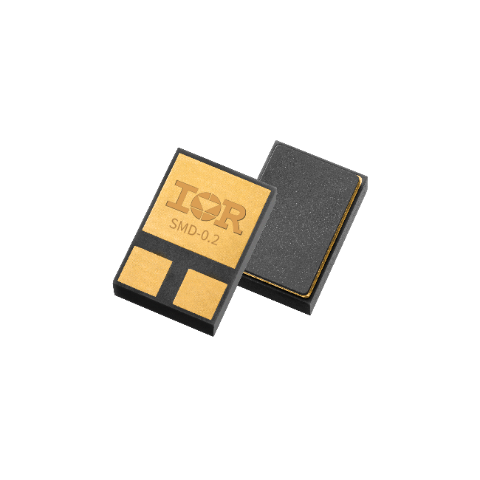

Configuration: Discrete I[D ](@100°C) max: -2.0A I[D ](@25°C) max: -3.1A V[F] max: -5.0V Package: SMD-0.2 Polarity: P Die Size: 1 V[BRDSS] min: -100.0V QPL Part Number: 2N7506U8 TID max: 300.0Krad(Si) ESD Class: Class 1A R[DS (on)](@25°C) max: 1200.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 11.0nC Qualification: COTS Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -0.33A I[D ](@25°C) max: -0.53A V[F] max: -5.0V Package: UBC Polarity: P V[BRDSS] min: -60.0V QPL Part Number: 2N7626UBC TID max: 100.0Krad(Si) ESD Class: Class 0 R[DS (on)](@25°C) max: 1300.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 3.6nC Die Size: 2 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -1.0A I[D ](@25°C) max: -1.6A V[F] max: -5.0V Package: TO-205AF Polarity: P Qualification: QIRL V[BRDSS] min: -60.0V TID max: 100.0Krad(Si) ESD Class: Class 0 R[DS (on)](@25°C) max: 1200.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 2.8nC Die Size: 2 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -7.0A I[D ](@25°C) max: -11.0A V[F] max: -3.0V Package: SMD-0.5 Polarity: P Qualification: COTS Die Size: 3 V[BRDSS] min: -100.0V TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 290.0mΩ Generation: R4 Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Qualification: COTS V[BRDSS] min: -200.0V R[DS (on)](@25°C) max: 175.0mΩ TID max: 300.0Krad(Si) ESD Class: 2 Polarity: P V[F] max: -1.3V Generation: R9 Die Size: 3 I[D ](@25°C) max: -14.0A Q[G]: 49.0nC Optional TID Rating(kRad(si)): 100 300 Package: TO-257AA Low Ohmic

Configuration: Discrete I[D ](@100°C) max: -16.0A I[D ](@25°C) max: -22.0A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7520U3 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 85.0mΩ Generation: R5 Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -17.0A I[D ](@25°C) max: -27.0A V[F] max: -3.3V Package: TO-254AA Polarity: P Die Size: 6 V[BRDSS] min: -200.0V QPL Part Number: 2N7426 TID max: 300.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 160.0mΩ Generation: R4 Q[G]: 300.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -14.0A I[D ](@25°C) max: -22.0A V[F] max: -3.0V Package: TO-254AA Polarity: P Die Size: 5 V[BRDSS] min: -100.0V QPL Part Number: 2N7422 TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 80.0mΩ Generation: R4 Q[G]: 200.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -14.0A I[D ](@25°C) max: -22.0A V[F] max: -3.0V Package: TO-204AE Polarity: P Qualification: COTS Die Size: 5 V[BRDSS] min: -100.0V TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 75.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Q[G]: 200.0nC
