Configuration: Discrete I[D ](@100°C) max: -0.33A I[D ](@25°C) max: -0.53A V[F] max: -5.0V Package: UB Polarity: P V[BRDSS] min: -60.0V QPL Part Number: 2N7626UB TID max: 100.0Krad(Si) ESD Class: Class 0 R[DS (on)](@25°C) max: 1300.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 3.6nC Die Size: Z Language: SPICE Voltage Class: 100.0V Qualification: COTS Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Low Ohmic Polarity: P Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7550T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 49.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 170.0nC Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -18.0A I[D ](@25°C) max: -22.0A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -30.0V QPL Part Number: 2N7519U3 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 70.0mΩ Generation: R5 Qualification: COTS Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -1.0A I[D ](@25°C) max: -1.6A V[F] max: -5.0V Package: TO-205AF Polarity: P V[BRDSS] min: -60.0V TID max: 100.0Krad(Si) ESD Class: Class 0 R[DS (on)](@25°C) max: 1200.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 2.8nC Die Size: 2 Language: SPICE Voltage Class: 100.0V Qualification: COTS Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -4.1A I[D ](@25°C) max: -6.5A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -200.0V TID max: 100.0Krad(Si) ESD Class: Class 1B SEE: Yes R[DS (on)](@25°C) max: 800.0mΩ Generation: R4 Qualification: QIRL Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: -45.0A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Low Ohmic Polarity: P Qualification: COTS Die Size: 6 V[BRDSS] min: -30.0V QPL Part Number: 2N7523T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 14.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 160.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

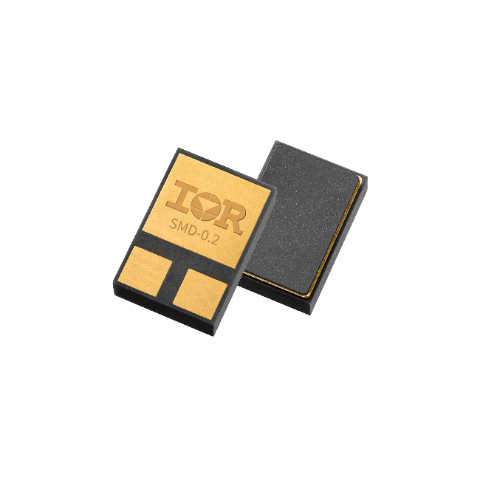

Configuration: Discrete I[D ](@100°C) max: -2.0A I[D ](@25°C) max: -3.1A V[F] max: -5.0V Package: SMD-0.2 Polarity: P Die Size: 1 V[BRDSS] min: -100.0V QPL Part Number: 2N7506U8 TID max: 100.0Krad(Si) ESD Class: Class 1A R[DS (on)](@25°C) max: 1200.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 11.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

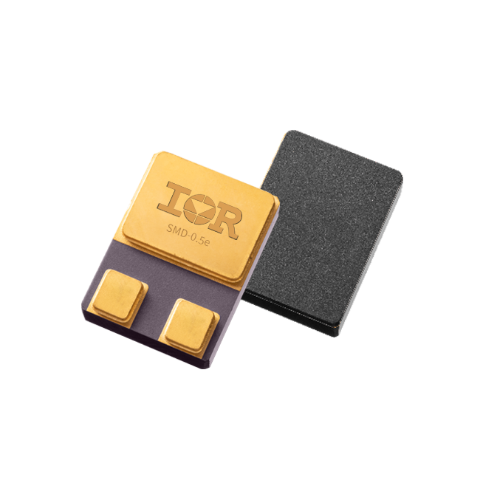

Qualification: COTS V[BRDSS] min: -60.0V R[DS (on)](@25°C) max: 45.0mΩ Package: SMD-0.5e Ceramic Lid TID max: 100.0Krad(Si) QPL Part Number: 2N7659U3CE Polarity: P V[F] max: -1.3V Generation: R9 Die Size: 3 I[D ](@25°C) max: -32.0A Q[G]: 48.0nC Optional TID Rating(kRad(si)): 100 300 ESD Class: Class 2

Qualification: DLA V[BRDSS] min: -100.0V I[D ](@25°C) max: -45.0A R[DS (on)](@25°C) max: 19.5mΩ Q[G]: 230.0nC Package: TO-254AA Low-Ohmic TID max: 100.0Krad(Si) Die Size: 6 QPL Part Number: 2N7665T1 ESD Class: 3B Polarity: P Generation: R9 Optional TID Rating(kRad(si)): 100 300 V[F] max: -1.3V

Qualification: COTS V[BRDSS] min: -60.0V I[D ](@25°C) max: -100.0A R[DS (on)](@25°C) max: 12.5mΩ Q[G]: 221.0nC Package: SupIR-SMD TID max: 300.0Krad(Si) Die Size: 6 QPL Part Number: 2N7664T1 ESD Class: Class B Polarity: P Generation: R9 Optional TID Rating(kRad(si)): 100 300 V[F] max: -1.3V
