Configuration: Discrete I[D ](@100°C) max: -22.0A I[D ](@25°C) max: -35.0A V[F] max: -3.3V Package: TO-254AA Polarity: P Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7425 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 73.0mΩ Generation: R4 Q[G]: 290.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -56.0A I[D ](@25°C) max: -56.0A V[F] max: -5.0V Package: SMD-2 Polarity: P Qualification: COTS Die Size: 6 V[BRDSS] min: -60.0V QPL Part Number: 2N7524U2 TID max: 300.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 15.0mΩ Generation: R5 Q[G]: 200.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -16.0A I[D ](@25°C) max: -22.0A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7520U3 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 85.0mΩ Generation: R5 Qualification: COTS Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -8.0A I[D ](@25°C) max: -12.5A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Qualification: QIRL Die Size: 3 V[BRDSS] min: -100.0V QPL Part Number: 2N7545U3 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 205.0mΩ Generation: R5 Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -7.0A I[D ](@25°C) max: -11.0A V[F] max: -3.0V Package: TO-257AA Polarity: P Die Size: 3 V[BRDSS] min: -100.0V QPL Part Number: 2N7382 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 300.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 45.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -4.1A I[D ](@25°C) max: -6.5A V[F] max: -3.0V Package: TO-205AF Polarity: P Die Size: 3 V[BRDSS] min: -100.0V QPL Part Number: 2N7389 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 300.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Qualification: COTS Q[G]: 45.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -1.5A I[D ](@25°C) max: -2.3A V[F] max: -2.6V Package: 18-pin LCC Polarity: P Die Size: 1 V[BRDSS] min: -100.0V TID max: 100.0Krad(Si) ESD Class: Class 1A R[DS (on)](@25°C) max: 1100.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Q[G]: 16.0nC Qualification: QIRL

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Low Ohmic Polarity: P Qualification: COTS Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7550T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 49.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 170.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

V[BRDSS] min: -100.0V I[D ](@25°C) max: -91.0A R[DS (on)](@25°C) max: 17.0mΩ Q[G]: 230.0nC Package: SupIR-SMD TID max: 100.0Krad(Si) Die Size: 6 QPL Part Number: 2N7665U2A ESD Class: 3B Polarity: P Generation: R9 V[F] max: -1.3V Optional TID Rating(kRad(si)): 100 300 Qualification: DLA

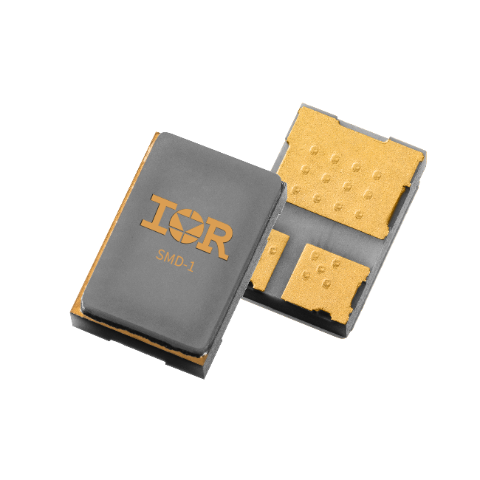

Configuration: Discrete I[D ](@100°C) max: -14.0A I[D ](@25°C) max: -22.0A V[F] max: -3.0V Package: SMD-1 Polarity: P Die Size: 5 V[BRDSS] min: -100.0V QPL Part Number: 2N7422U TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 80.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Q[G]: 200.0nC Language: SPICE Voltage Class: 100.0V Qualification: COTS Product Category: Rad hard MOSFETS
